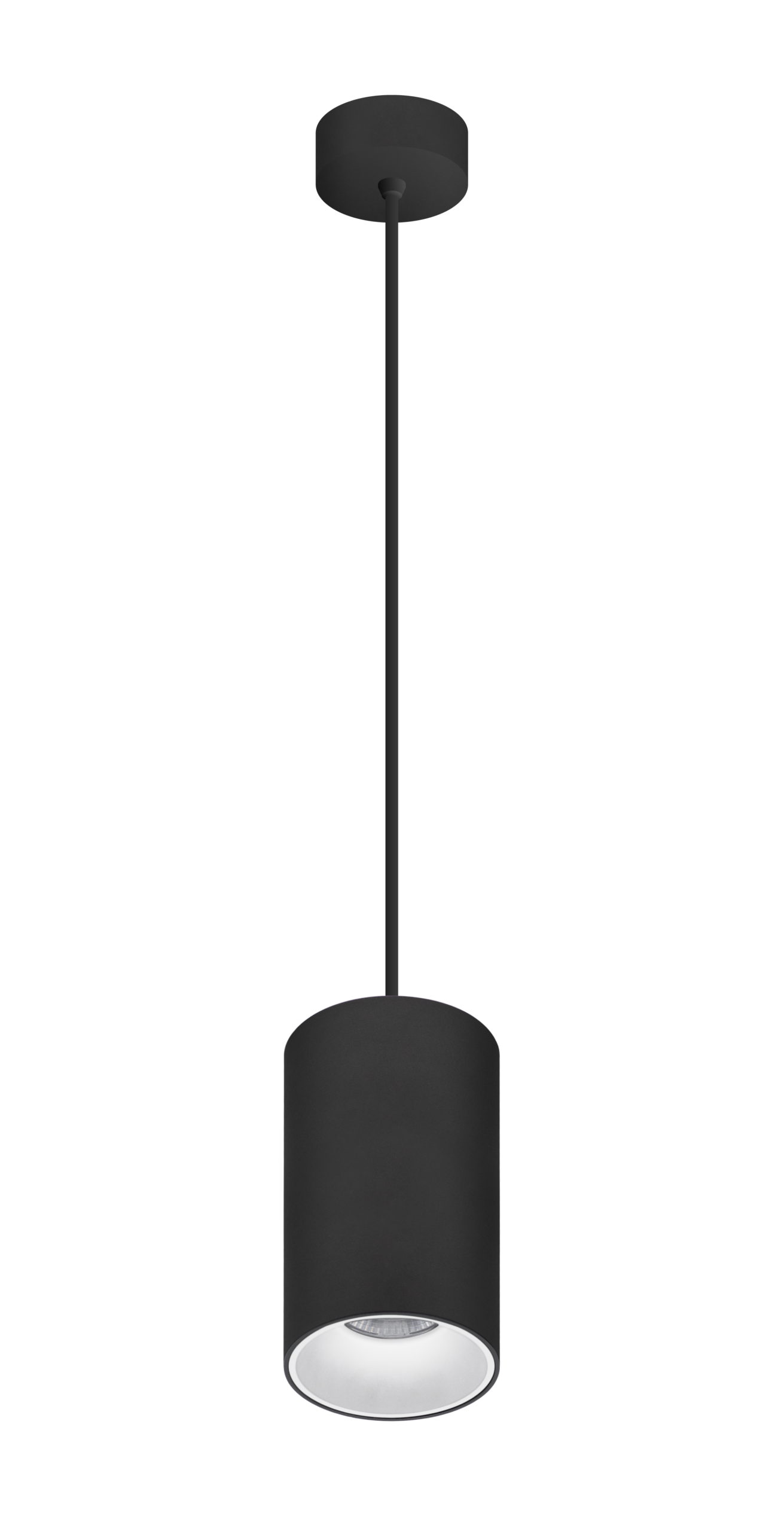

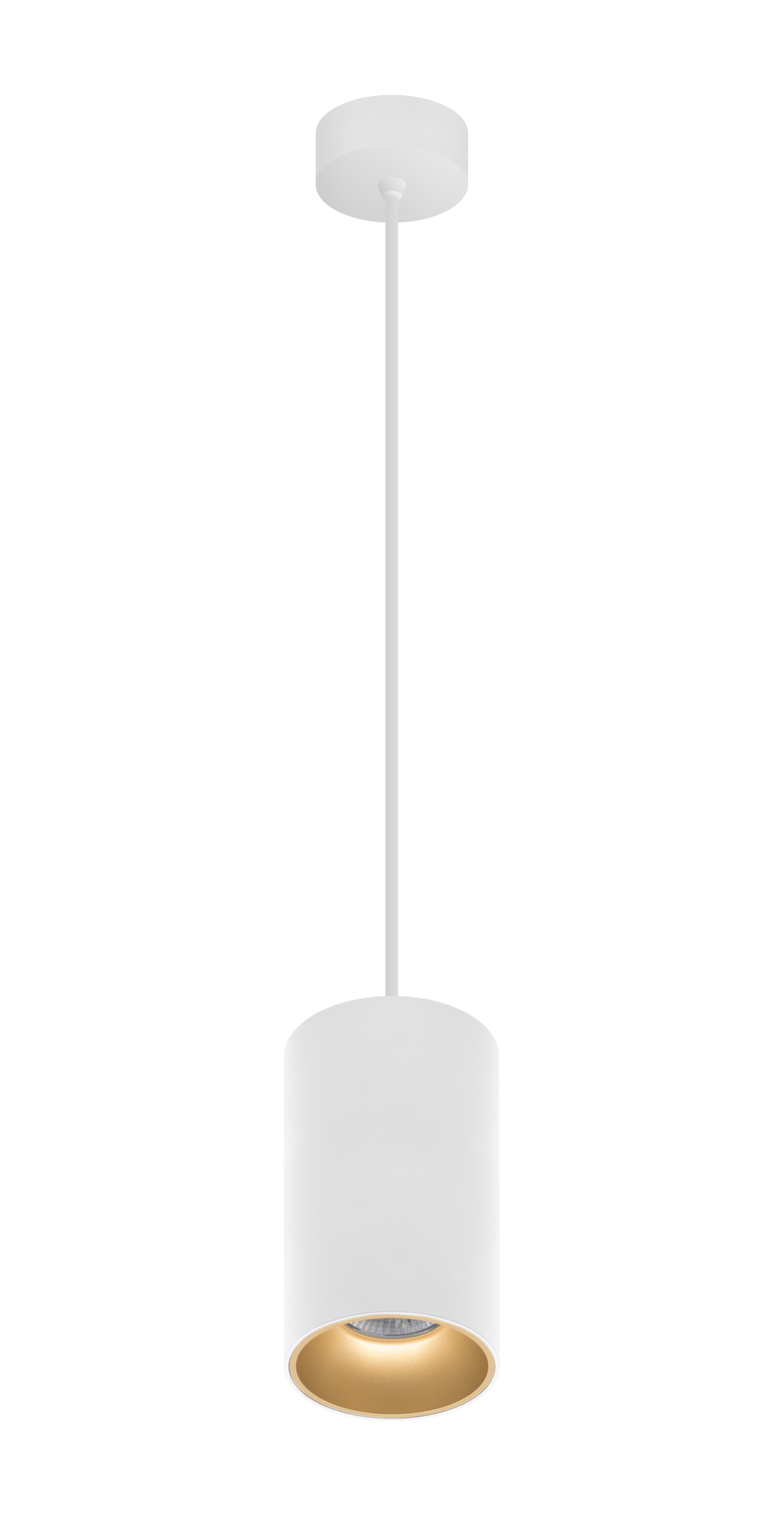

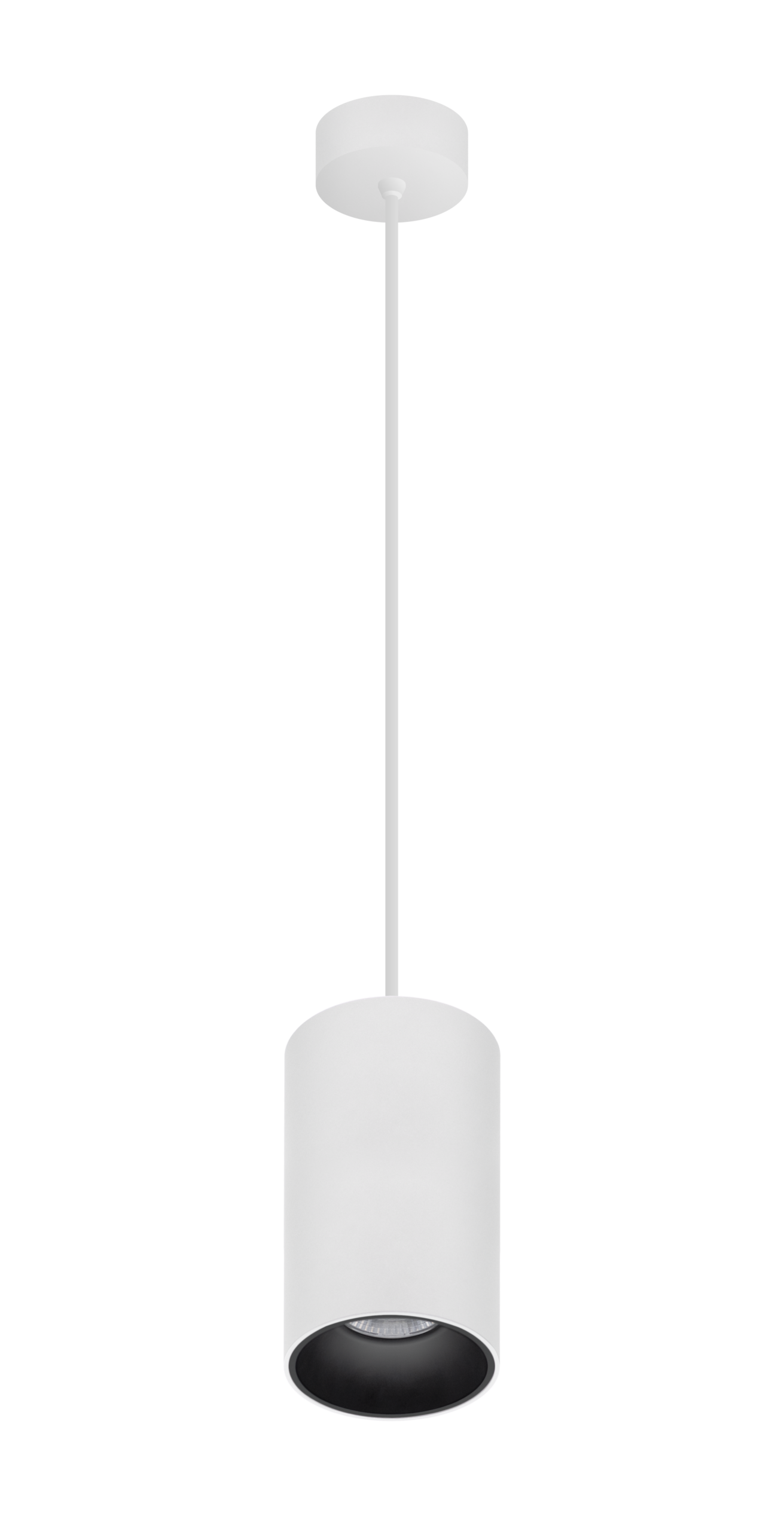

The Core Suspension provides yet another alternative to our suspension light collection. A shorter yet wider fitting compared to others in our range, the Core Suspension provides an exceptionally high lumen output, better light distribution and visual comfort.
• 92+ CRI – Highlighting architectural details and defining finishes.
• Quick connection system for easy and efficient installation.
• Flicker free driver.
• Available in 2 beam angles – For casting the perfect light.
• High quality lens – Improving visual comfort and reducing glare.
• Multiple baffle options for further aesthetic freedom.
• Choose from Phase-Cut or DALI dimming.
• Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU).
• 2m cable length.
| PRODUCT CODES: | FINISH: | COLOUR TEMP: | DIMMING: |
| 118-COS318W603 | White | 3000K | Phase-Cut |
| 118-COS318W604 | White | 4000K | Phase-Cut |
| 118-COS318B603 | Black | 3000K | Phase-Cut |
| 118-COS318B604 | Black | 4000K | Phase-Cut |
| 118-COS318W603D | White | 3000K | DALI |
| 118-COS318W604D | White | 4000K | DALI |
| 118-COS318B603D | Black | 3000K | DALI |
| 118-COS318B604D | Black | 4000K | DALI |
| ACCESSORY CODES: | ACCESSORY: |
| 118-LSCX40 | 40° Lens |
| 118-LSCX20 | 20° Lens |
| 118-CORXSBW | White Baffle |
| 118-CORXSBG | Gold Baffle |
| PLEASE NOTE |
| Fittings come standard with 60° lens & black baffle. |
Category:
Material:
Powder Coated Aluminium
IP Rating:
20
Light Source:
LED 18W
Lumen Output:
1800 lm | 1900 lm (3000K | 4000K)
Sizes:
Mounting Type:
Dimensions:
H 150mm x W Ø95mm
Cable Length 2m
Warranty:
5 Years
Line Drawing:
