Edge Series
Edge Series
Incorporating a minimal trim design, with advanced LED engines to achieve intense illumination with a high lumen per watt efficacy. Our Generation 3 Series of downlights are unmatched; featuring higher quality lighting, more effective heat dissipation, and stronger LEDs.
A Downlight For Any Space.
With 850+ options in the Edge Series, there truly is a downlight to match any space. Craft your perfect luminaire from a collection of 7 luminaires, 6 frame options, 2 colour temperatures, multiple wattage options, and up to 8 beam angles.
The Next Generation of Light.
Up to 43% more efficient than our last generation. A culmination of years of innovation; featuring a more efficient heatsink, a next-gen LED chip, and a further refined reflector.
Precision Reflectors & Lenses
Every reflector and lens have been carefully designed to ensure virtually every ray of light emitted is being directed exactly where you need it. Not only does this improve the efficiency, it significantly reduces glare.
Specially Designed Heat Sinks
Each of our heat sinks have been meticulously engineered and tested to maximise their heat dissipation. Effective heat dissipation is the key in creating a luminaire that not only lasts longer, but maintains its peak performance over that lifetime.
Deep-Set Lamp Position
Recessing the light source into the ceiling gives our fittings two advantages. A stronger ability to direct light with reflectors & lenses, and heavily reducing glare, in turn improving visual comfort.
FEATURED Edge 100 G3
Quality Is The Guiding Light For FAZE
Your Light, Your Way
Not all spaces are the same size, which is why you need downlights that can light all types of spaces. Available in 3 different shapes, and available to be paired with any of our reflector & lens options.
60x10 Elliptical Diffuser
60x15 Elliptical Diffuser
40x10 Elliptical Diffuser
Engineered To Work, So You Can Focus On What Matters
High Quality Design
As life gets busy, utilising high quality and durable equipment is one of the easiest ways to cut back on your mental load. Each of our luminaires have been meticulously engineered and fine tuned to work as efficiently and durably as possible.
Phase-Cut Dimming
Our drivers are equipped to dim through either trailing edge or leading edge dimming, and are able to dim from their full output all the way to 1%. Giving you all the power to control the ambience of your space.
Potted Driver Enclosures
Encapsulated in a protective layer that simultaneously shields from exterior interference and absorbs vibrations, resulting in a driver that performs better while withstanding harsher conditions.
True Flicker-Free
Our luminaire drivers deliver a true flicker-free experience, by utilising a DC constant current, which completely eliminates the flickering of an AC driver, paired with an exceptionally low current ripple, the light output remains stable and consistent under any condition.
This combination completely removes flicker, even flicker that isn’t visible to the human eye, supporting better visual comfort and reducing strain, even in sensitive environments. Compared to a standard driver, ours can provide an experience with uncompromising stability, comfort, and performance.
FEATURED Edge XS
The X Series
Everything you love about the Edge Collection packaged into a shorter height, for those tighter ceiling spaces.
Same Classic Deep-Set LED
The Edge XS & Edge XM keep glare to a minimum with their deep-set lamp position, while featuring a nearly 20% drop in needed vertical ceiling space.
Unique Lower Height Heatsink
Designed from the ground up to be as effective as possible, while maintaining a very low profile. With the Edge XS & Edge XM only requiring a maximum height of 83mm, it’s our lowest profile Edge.
Side Entry Cable
Our quick connect cable has been shifted to be side-facing, giving you that extra level of wiggle-room that our standard Edge lights simply don’t give you.
Edge Series Specifications

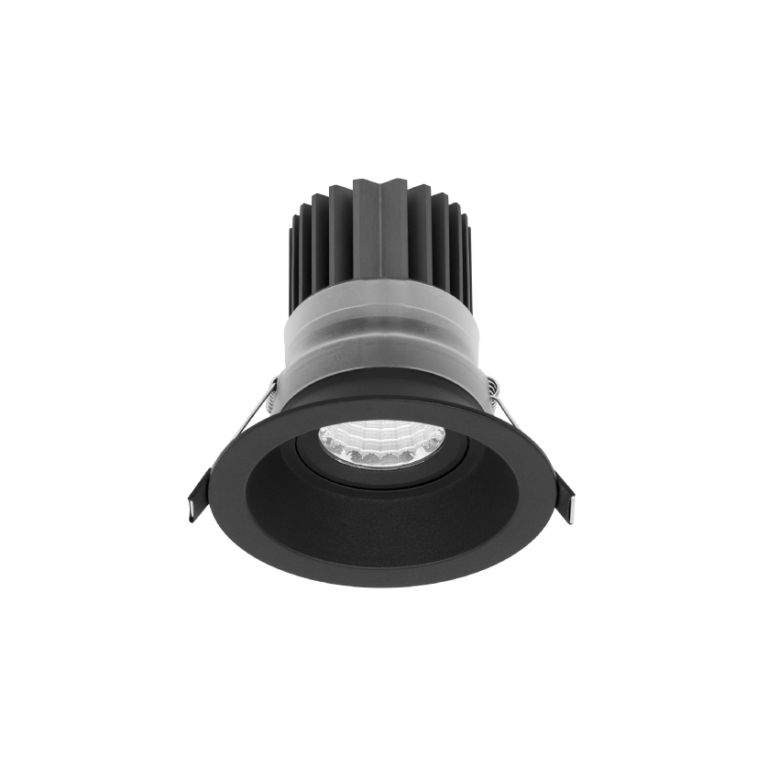

Edge 110 G3 Specifications
WATTAGE:
13W
11W
8W
LUMENS (3000K | 4000K):
1400lm | 1500lm (13W)
1170lm | 1270lm (11W)
1025lm | 1125lm (8W)
EFFICACY
Up to 140lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
60° Lens
36° Lens
24° Lens
15° Lens
CRI (Colour Rendering Index)
92+
UGR
<15
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L90B10
WARRANTY
7 Years In-Home

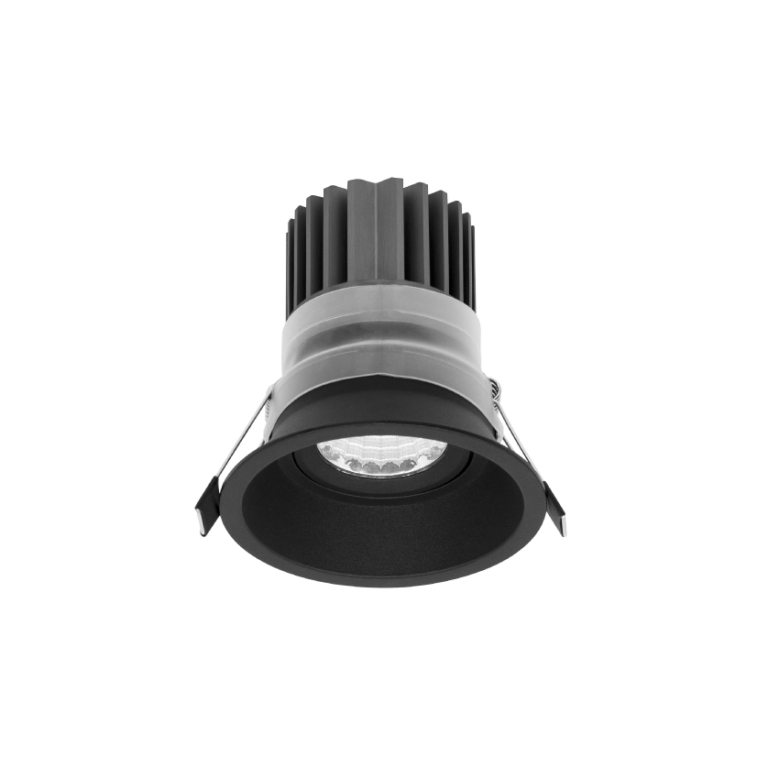

Edge 100 G3 Specifications
WATTAGE:
13W
11W
8W
LUMENS (3000K | 4000K):
1400lm | 1500lm (13W)
1170lm | 1270lm (11W)
1025lm | 1125lm (8W)
EFFICACY
Up to 140lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
60° Lens
36° Lens
24° Lens
15° Lens
CRI (Colour Rendering Index)
92+
UGR
<15
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L90B10
WARRANTY
7 Years In-Home

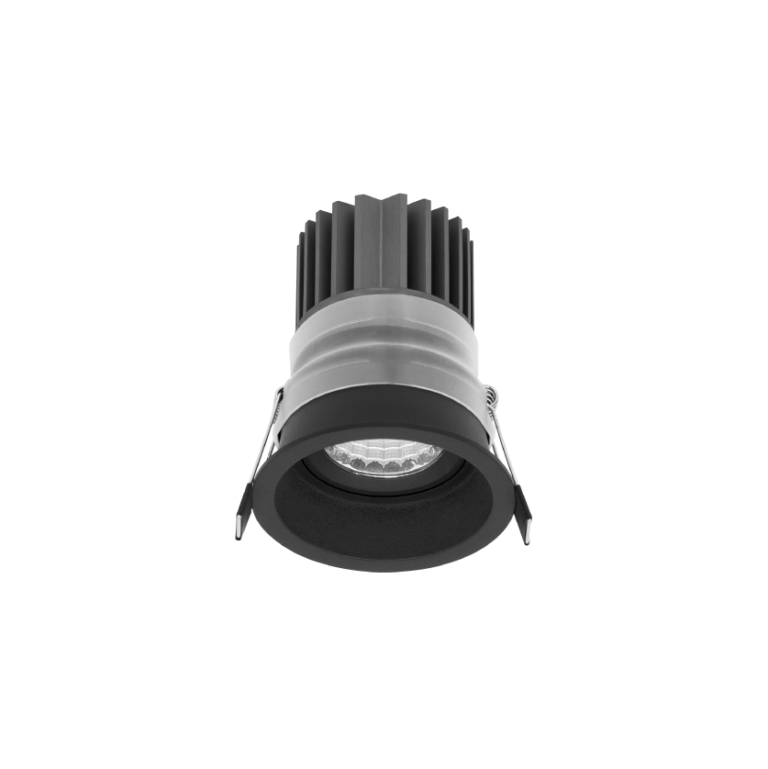

Edge Mini G3 Specifications
WATTAGE:
10W
8W
LUMENS (3000K | 4000K):
1170lm | 1270lm (10W)
1025lm | 1125lm (8W)
EFFICACY
Up to 140lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
60° Lens
36° Lens
24° Lens
15° Lens
CRI (Colour Rendering Index)
92+
UGR
<15
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L90B10
WARRANTY
7 Years In-Home

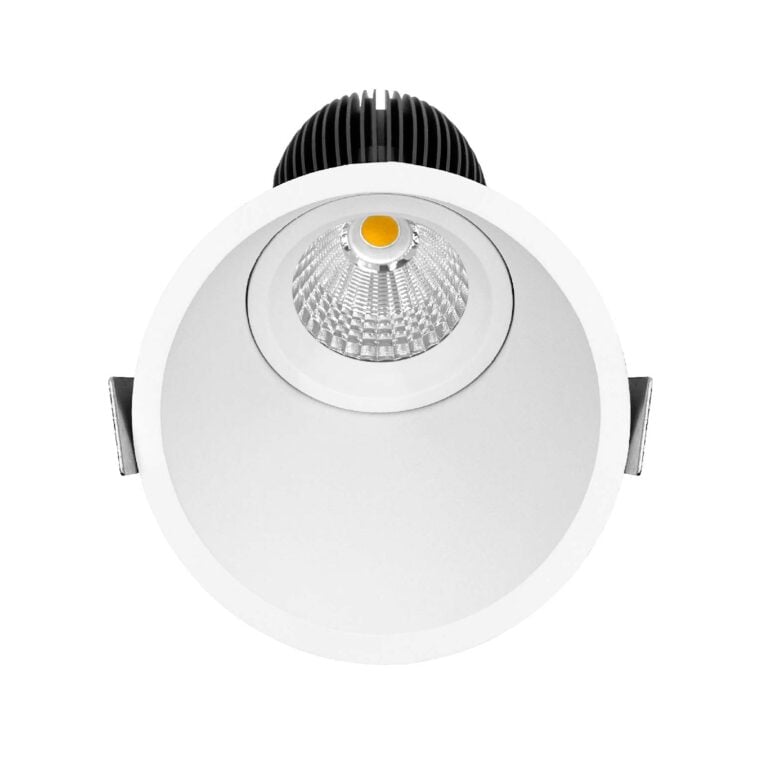

Edge Wallwasher Specifications
WATTAGE:
13W
10W
8W
LUMENS (3000K | 4000K):
1270lm | 1320lm (13W)
1105lm | 1150lm (10W)
960lm | 1000lm (8W)
EFFICACY
Up to 125lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
CRI (Colour Rendering Index)
92+
UGR
<19
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L80B10
WARRANTY
7 Years In-Home

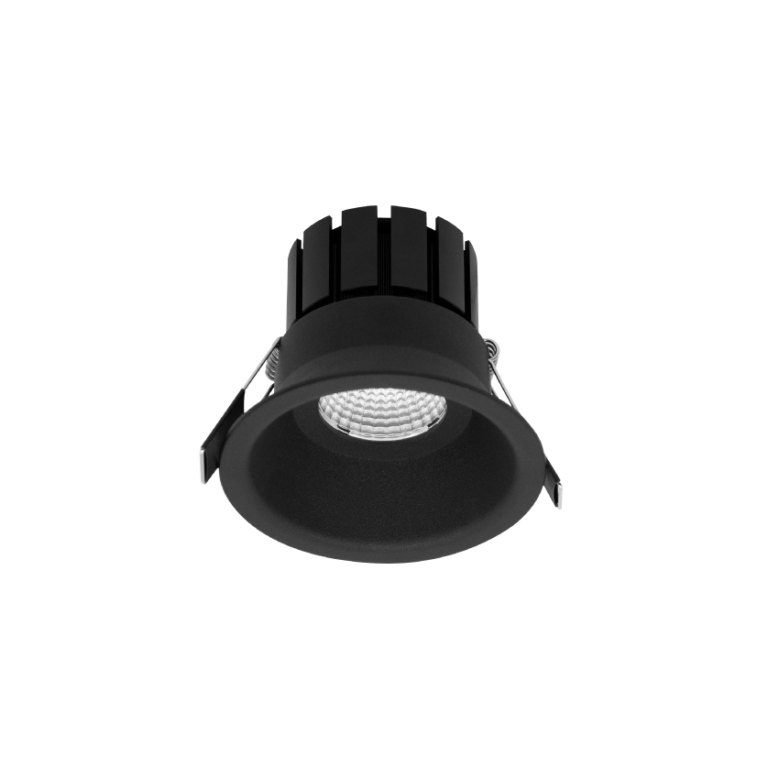

Edge XS Specifications
WATTAGE:
11W
8W
6W
LUMENS (3000K | 4000K):
1065lm | 1070lm (11W)
920lm | 920lm (8W)
740lm | 745lm (6W)
EFFICACY
Up to 124lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
CRI (Colour Rendering Index)
92+
UGR
<13
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L90B10
WARRANTY
5 Years In-Home

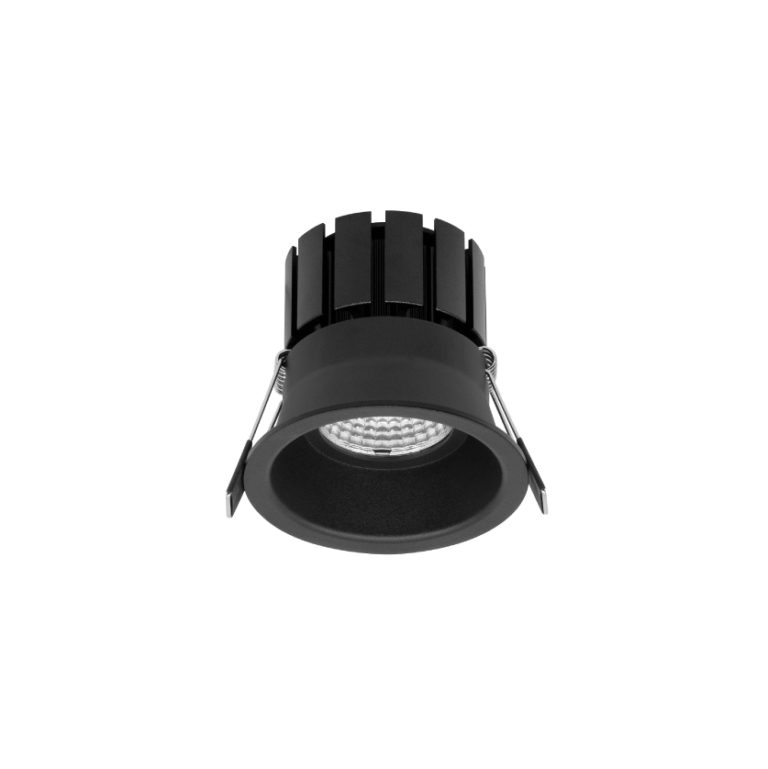

Edge XM Specifications
WATTAGE:
11W
8W
6W
LUMENS (3000K | 4000K):
1065lm | 1070lm (11W)
920lm | 920lm (8W)
740lm | 745lm (6W)
EFFICACY
Up to 124lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
CRI (Colour Rendering Index)
92+
UGR
<13
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L90B10
WARRANTY
5 Years In-Home

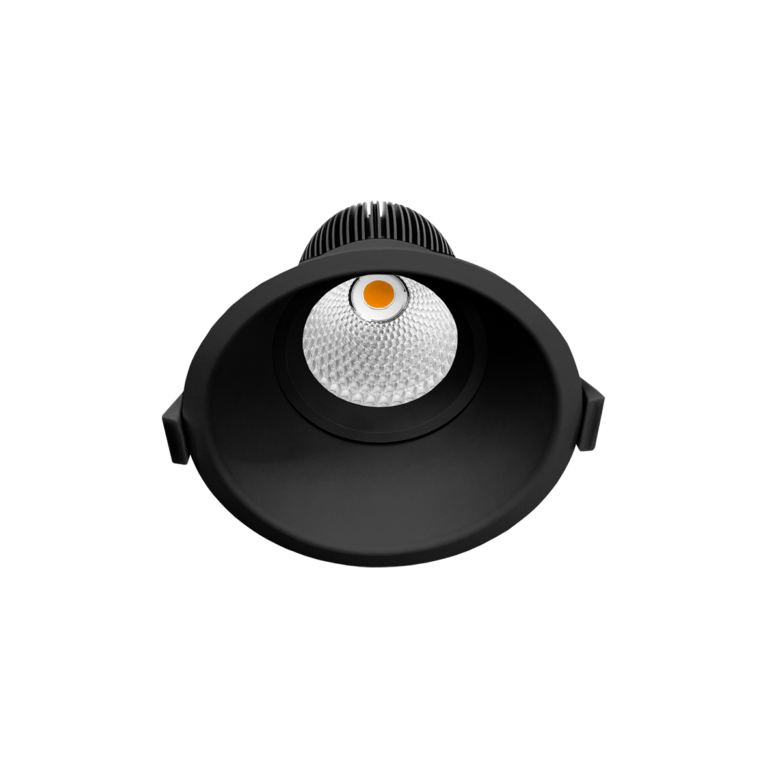

Edge 135 Specifications
WATTAGE:
25W
LUMENS (3000K | 4000K):
2255lm | 2340lm
EFFICACY
Up to 94lm/W
FINISHES
Powder-Coated White
Powder-Coated Black
BEAM ANGLES
60° Reflector (Standard)
36° Reflector
24° Reflector
15° Reflector
CRI (Colour Rendering Index)
92+
UGR
<19
IP
44
COLOUR DEVIATION
SDCM ≤2
DIMMING
Phase-Cut
DALI
LIFETIME
>55,000hrs L80B10
WARRANTY
7 Years In-Home
