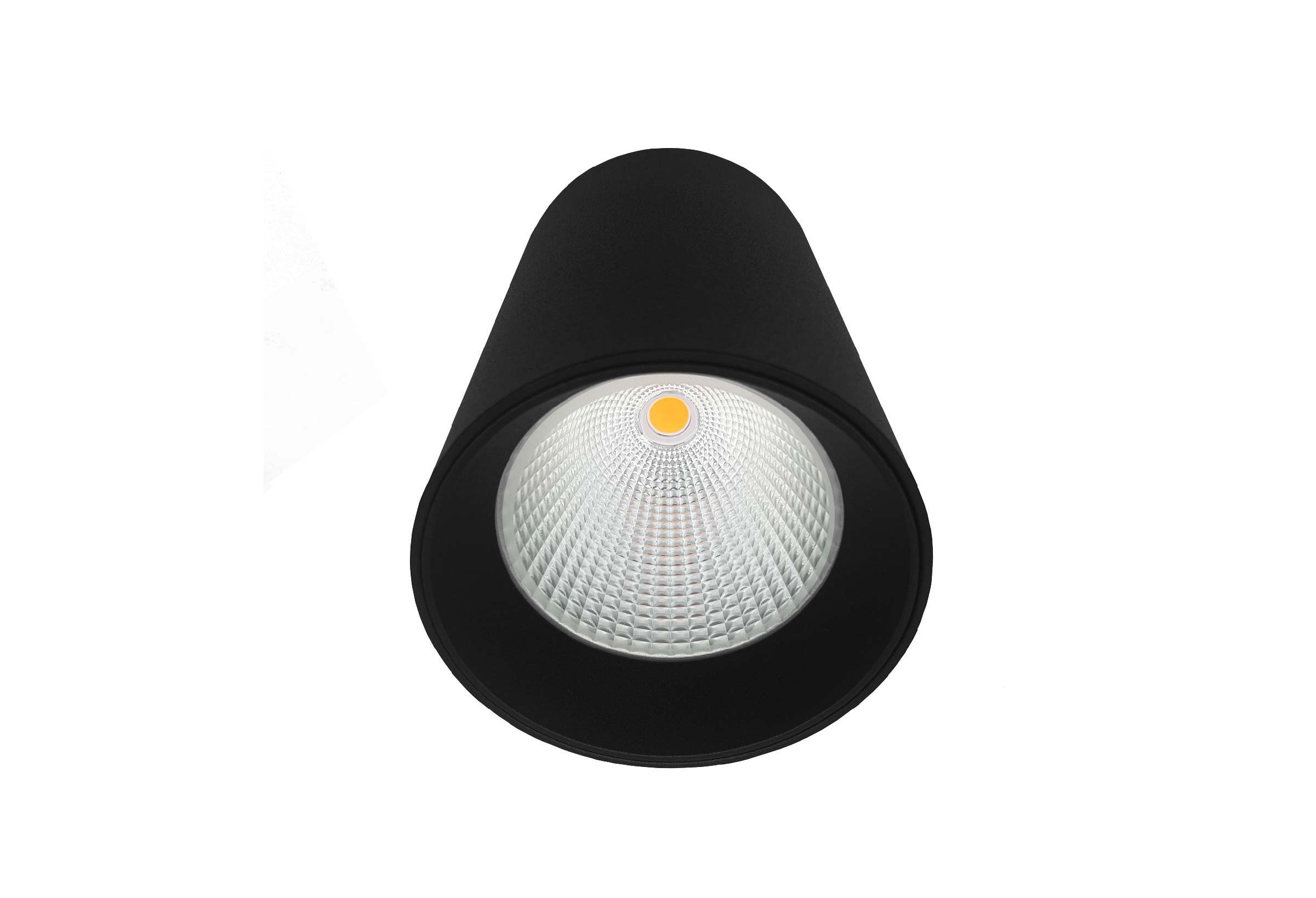

• 92+ CRI – Highlighting architectural details and defining finishes.
• Quick connection system for easy and efficient installation.
• Flicker free driver.
• Available in 3 beam angles – For casting the perfect light.
• High quality lens – Improving visual comfort and reducing glare.
• Multiple baffle options for further aesthetic freedom.
• Choose from Phase-Cut or DALI dimming.
• Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU)
| PRODUCT CODES: | FINISH: | COLOUR TEMPERATURE: | DIMMING: |
| 118-COR318W603 | White | 3000K | Phase Cut |
| 118-COR318W604 | White | 4000K | Phase Cut |
| 118-COR318B603 | Black | 3000K | Phase Cut |
| 118-COR318B604 | Black | 4000K | Phase Cut |
| 118-COR318W603D | White | 3000K | DALI |
| 118-COR318W604D | White | 4000K | DALI |
| 118-COR318B603D | Black | 3000K | DALI |
| 118-COR318B604D | Black | 4000K | DALI |
| ACCESSORY CODES: | ACCESSORY: |
| 118-LSCX40 | 40° Lens |
| 118-LSCX20 | 20° Lens |
| 118-CORXSBW | White Baffle |
| 118-CORXSBG | Gold Baffle |
| 118-CORIPKITW | White IP44 Mounting Plate |
| 118-CORIPKITB | Black IP44 Mounting Plate |
| PLEASE NOTE |
| Fittings come standard with black baffle and 60° lens. |
Category:
Material:
Powder Coated Aluminium
IP Rating:
20
Light Source:
LED 18W
Lumen Output:
1800 lm | 1900 lm (3000K | 4000K)
Sizes:
Mounting Type:
Dimensions:
H 150mm x W Ø95mm
Warranty:
5 Years

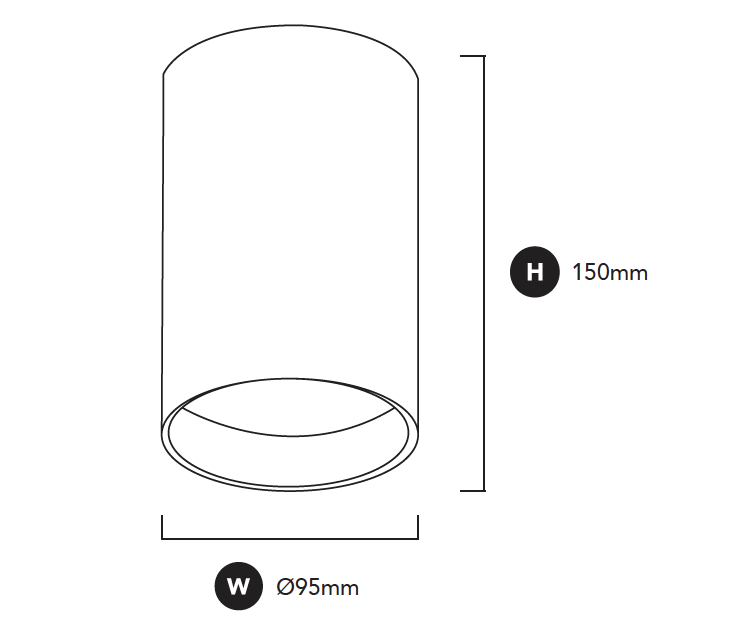

Line Drawing:
