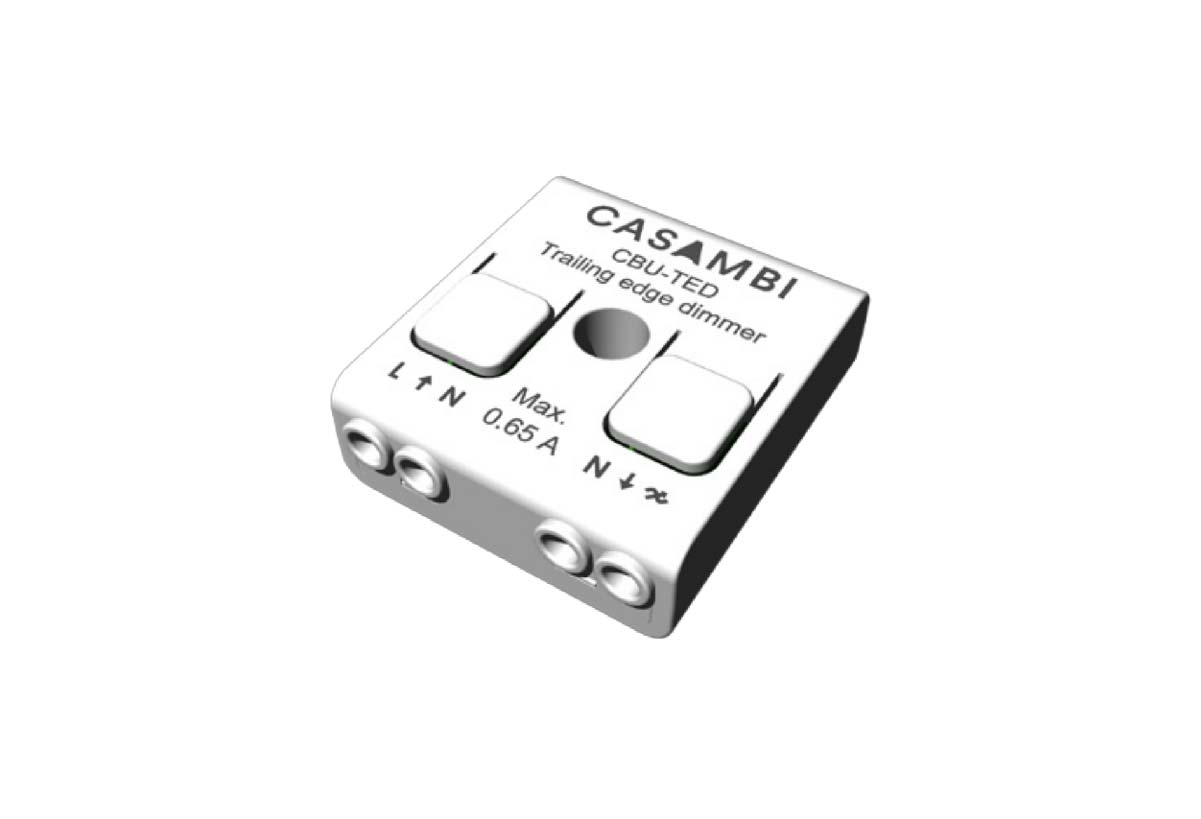

The Casambi Dimmer module is a Bluetooth controllable, Casambi enabled trailing-edge dimmer for operation of incandescent lamps, dimmable LED lamps and dimmable LED control gear.
+ Available with or without CBU box
+ Trailing Edge Dimming
+ Can be controlled with Casambi app, for iOS & Android devices
+ Can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box.
+ Able to control up to 150 VA at 230 VAC.
+ Features an overcurrent and over temperature protection

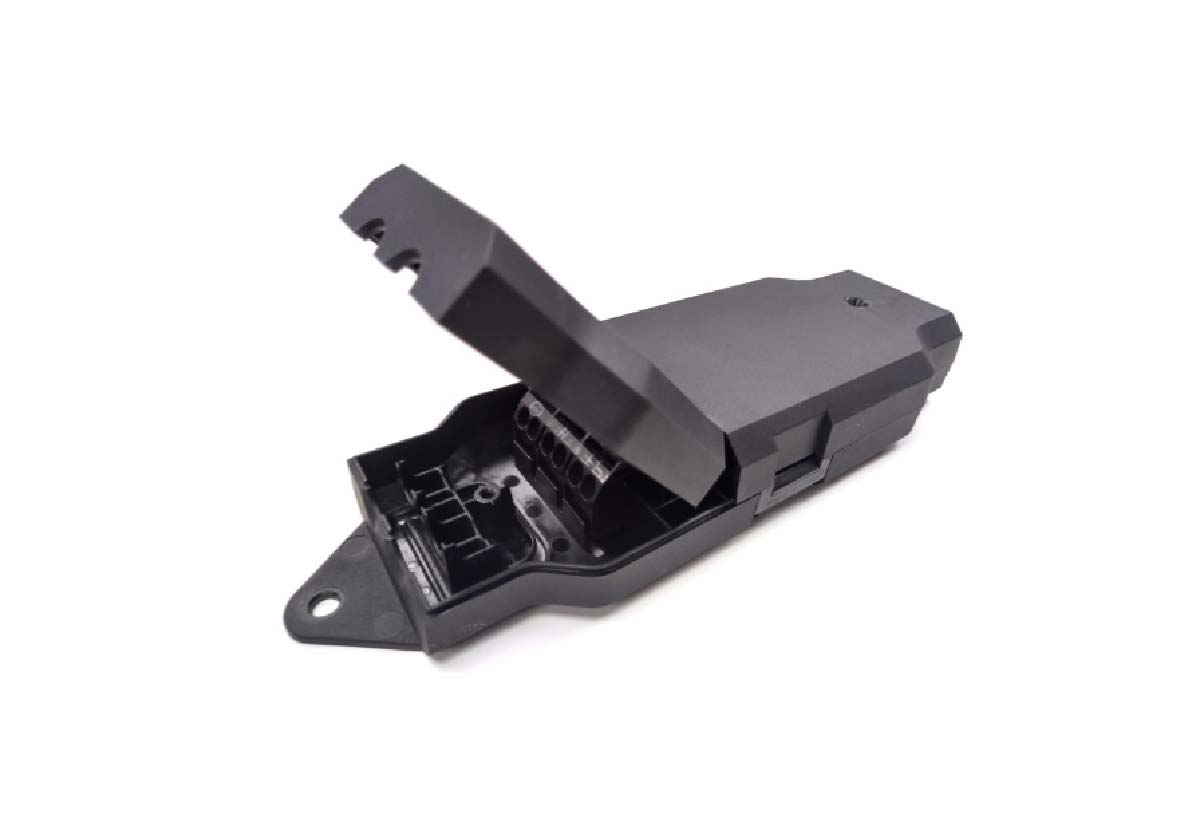

+ Dimmer module box comes with easy access lid for connecting supply on site
+ Loop in – loop out push fit connectors 20 to 12 AWG
| 71-CASCBU | without CBU box |
| 71-CASCBUBOX | with CBU box |
Category:
Material:
Polycarbonate
IP Rating:
20
Light Source:
N/A
Finishes:
Sizes:
Mounting Type:
Dimensions:
See line drawings.

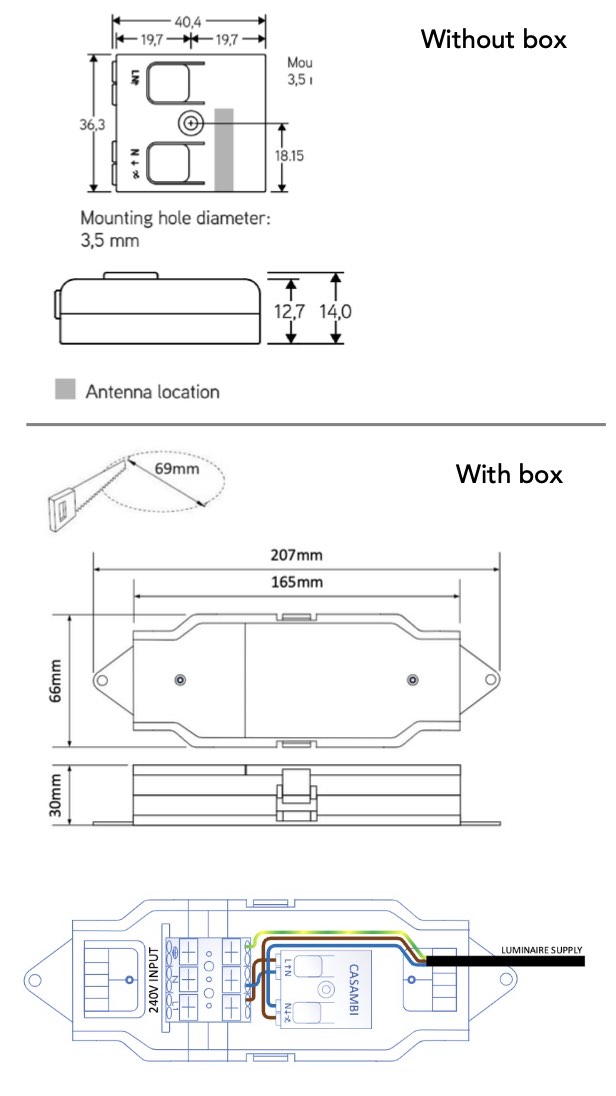

Line Drawing:
