The LINE OPAL linear light is as practical as it is stylish, it can be surface mounted or suspended; providing flexibility across both residential and commercial projects. If the four different lengths are not enough, you can connect them together and create your own.
• Surface mounted or suspended options
• 0-10V dimming & non-dimming versions available upon request (minimum order quantity applies)
• Specially designed ceiling canopy for fast installation and seamless design
• Quick and easy connection system
• Surface Mount option has 3mm detail from ceiling once installed
• Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU)
• Cable length 2000mm
Please Note
The Power cable length for the 2400mm (60W) version is 1650mm
Watch the video here
| PRODUCT CODES: | WATTAGE / LENGTH: | FINISH: | COLOUR TEMP: |
| 7-LI410615W903 | 15W / 600mm | White | 3000K |
| 7-LI410615W904 | 15W / 600mm | White | 4000K |
| 7-LI410615B903 | 15W / 600mm | Black | 3000K |
| 7-LI410615B904 | 15W / 600mm | Black | 4000K |
| 7-LI411230W903 | 30W / 1200mm | White | 3000K |
| 7-LI411230W904 | 30W / 1200mm | White | 4000K |
| 7-LI411230B903 | 30W / 1200mm | Black | 3000K |
| 7-LI411230B904 | 30W / 1200mm | Black | 4000K |
| 7-LI411845W903 | 45W / 1800mm | White | 3000K |
| 7-LI411845W904 | 45W / 1800mm | White | 4000K |
| 7-LI411845B903 | 45W / 1800mm | Black | 3000K |
| 7-LI411845B904 | 45W / 1800mm | Black | 4000K |
| 7-LI412460W903 | 60W / 2400mm | White | 3000K |
| 7-LI412460W904 | 60W / 2400mm | White | 4000K |
| 7-LI412460B903 | 60W / 2400mm | Black | 3000K |
| 7-LI4124605B904 | 60W / 2400mm | Black | 4000K |
| ACCESSORY CODES: | ACCESSORY: |
| 7-LI41CONNECT | Connection Kit |
| 7-LI41CLIP | Surface Mount Clip |
| 7-LI414SUSW | White 4m Suspension Kit |
| 7-LI414SUSB | Black 4m Suspension Kit |
Category:
Material:
Powder Coated Aluminium
IP Rating:
40
Light Source:
15W | 30W | 45W | 60W
Lumen Output:
See Spec Sheet
Sizes:
Dimensions:
H 70mm x W 41mm
Lengths 0.6m | 1.2m | 1.8m | 2.4m
Canopy H 30mm x W Ø80mm
Cable Length 2m
Warranty:
3 Years

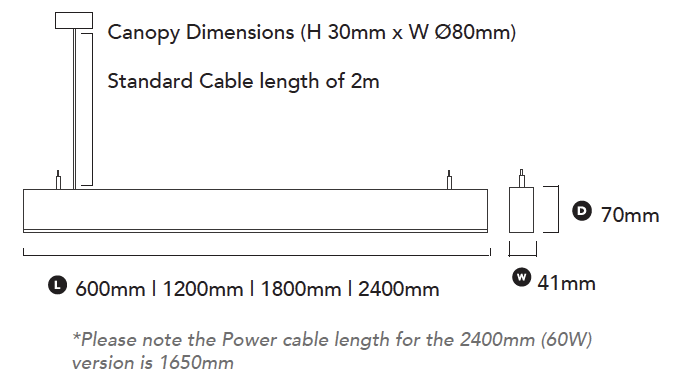

Line Drawing:
