Minimal, functional and versatile; the Core Mini Track provides an ideal lighting solution for accent lighting in both residential and commercial applications.
• The ultimate visual comfort – choose from 7 different beam styles.
• Get the perfect ambience – utilise Phase Cut or DALI dimming.
| PRODUCT CODES: | FINISH: | COLOUR TEMPERATURE: | DIMMING: |
| 118-COTM311W603 | White | 3000K | Phase Cut |
| 118-COTM311W604 | White | 4000K | Phase Cut |
| 118-COTM311B603 | Black | 3000K | Phase Cut |
| 118-COTM311B604 | Black | 4000K | Phase Cut |
| 118-COTM311W603D | White | 3000K | DALI |
| 118-COTM311W604D | White | 4000K | DALI |
| 118-COTM311B603D | Black | 3000K | DALI |
| 118-COTM311B604D | Black | 4000K | DALI |
| ACCESSORY CODES: | ACCESSORY: |
| 118-RFLE336 | 36° Reflector |
| 118-RFLE324 | 24° Reflector |
| 118-RFLE315 | 15° Reflector |
| 118-LSE360 | 60° Lens |
| 118-LSE336 | 36° Lens |
| 118-LSE324 | 24° Lens |
| 118-LSE315 | 15° Lens |
| PLEASE NOTE |
| Fittings come standard with 60° reflector. |
Category:
Material:
Powder Coated Aluminium
IP Rating:
IP20
Light Source:
LED 11W
Lumen Output:
1140lm | 1200lm (3000K | 4000K)
Sizes:
Mounting Type:
Dimensions:
H 140mm x W Ø55mm
Height From Track 180mm

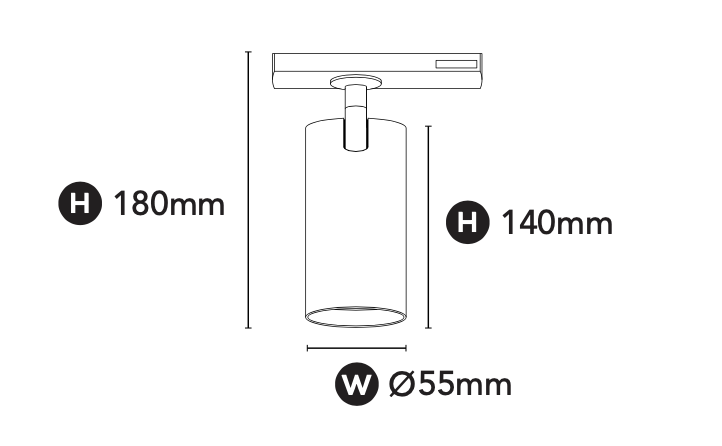

Line Drawing:
