Modux 2 & 4 Square Louvre
LuxR
Modux 2 & 4 Square Louvre
Enquire Now
Share this product
Product Information
This Louvre model directs the light at a 45° angle to eliminate glare. Intended for step or wall lighting.
Beam Angle: Asymmetric Wash
Product Codes:
| Modux 2 Small: |
Modux 2 Large: |
| 128-M2LRABK30 (Black) |
128-M2LLRABK30 (Black) |
| 128-M2LRC30 (Copper) |
128-M2LLRC30 (Copper) |
| 128-M2LRS30 (Stainless Steel) |
128-M2LLRS30 (Stainless Steel) |
| |
|
| Modux 4 Small: |
Modux 4 Large: |
| 128-M4LRABK30 (Black) |
128-M4LLRABK30 (Black) |
| 128-M4LRC30 (Copper) |
128-M4LLRC30 (Copper) |
| 128-M4LRS30 (Stainless Steel) |
128-M4LLRS30 (Stainless Steel) |
Specifications
| Designer: |
LuxR |
| Category: |
Outdoor Lighting |
| Material: |
Powder coat Aluminium, Copper and Stainless Steel |
| IP Rating: |
68 |
| Light Source: |
2W // 4W |
| Lumen Output: |
170 // 360 |
| Finishes: |
Copper/Stainless Steel |
| Mounting Type: |
Recessed |
| Dimensions: |
53 (L) x 53 (W) x 69 (H) mm // 61 (L) x 61 (W) x 69 (H) mm (Large) |

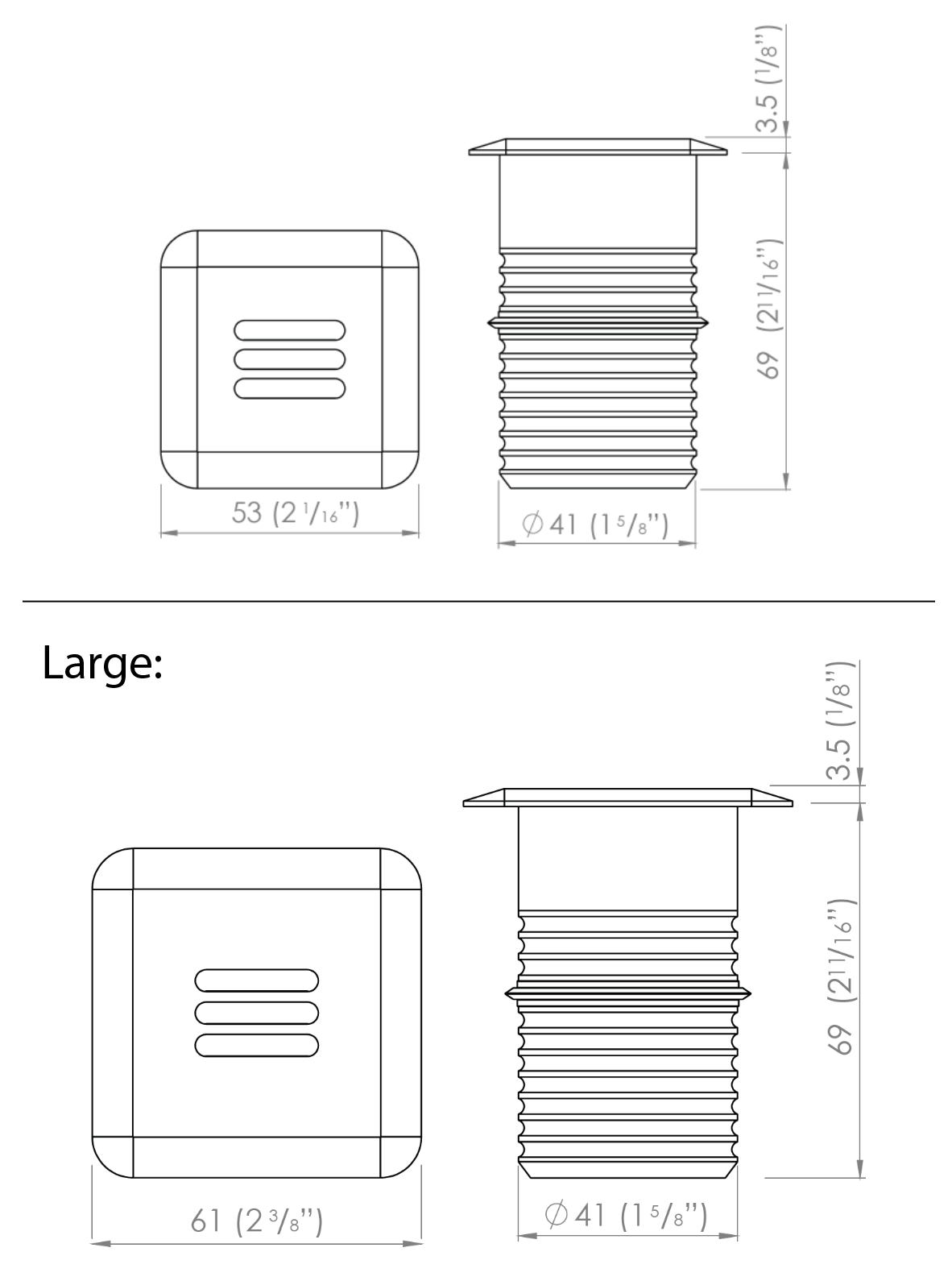

| Line Drawing: |
View |
