Dash 5-Light

Faze

Dash 5-Light

Enquire Now

Share this product

Product Information

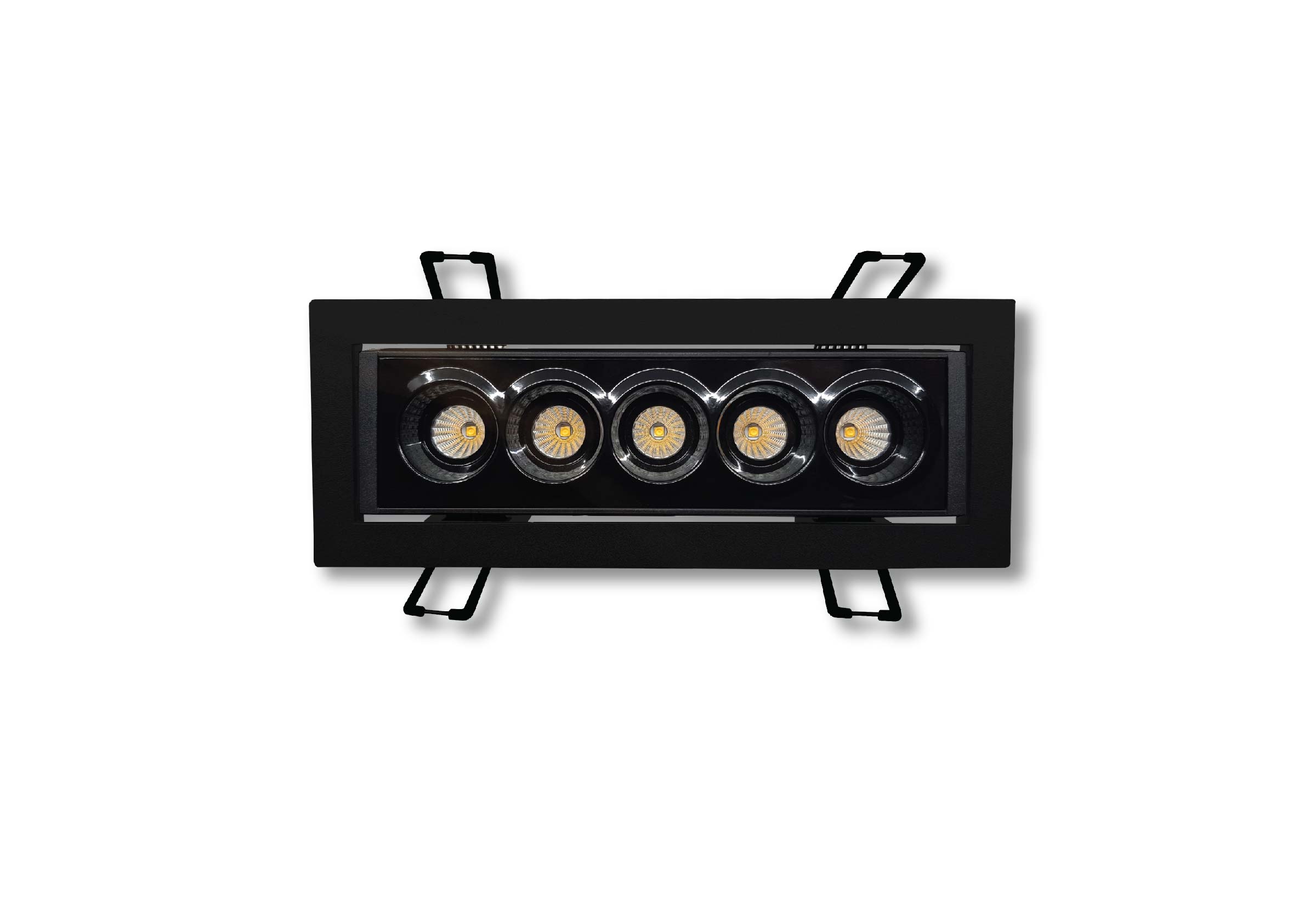

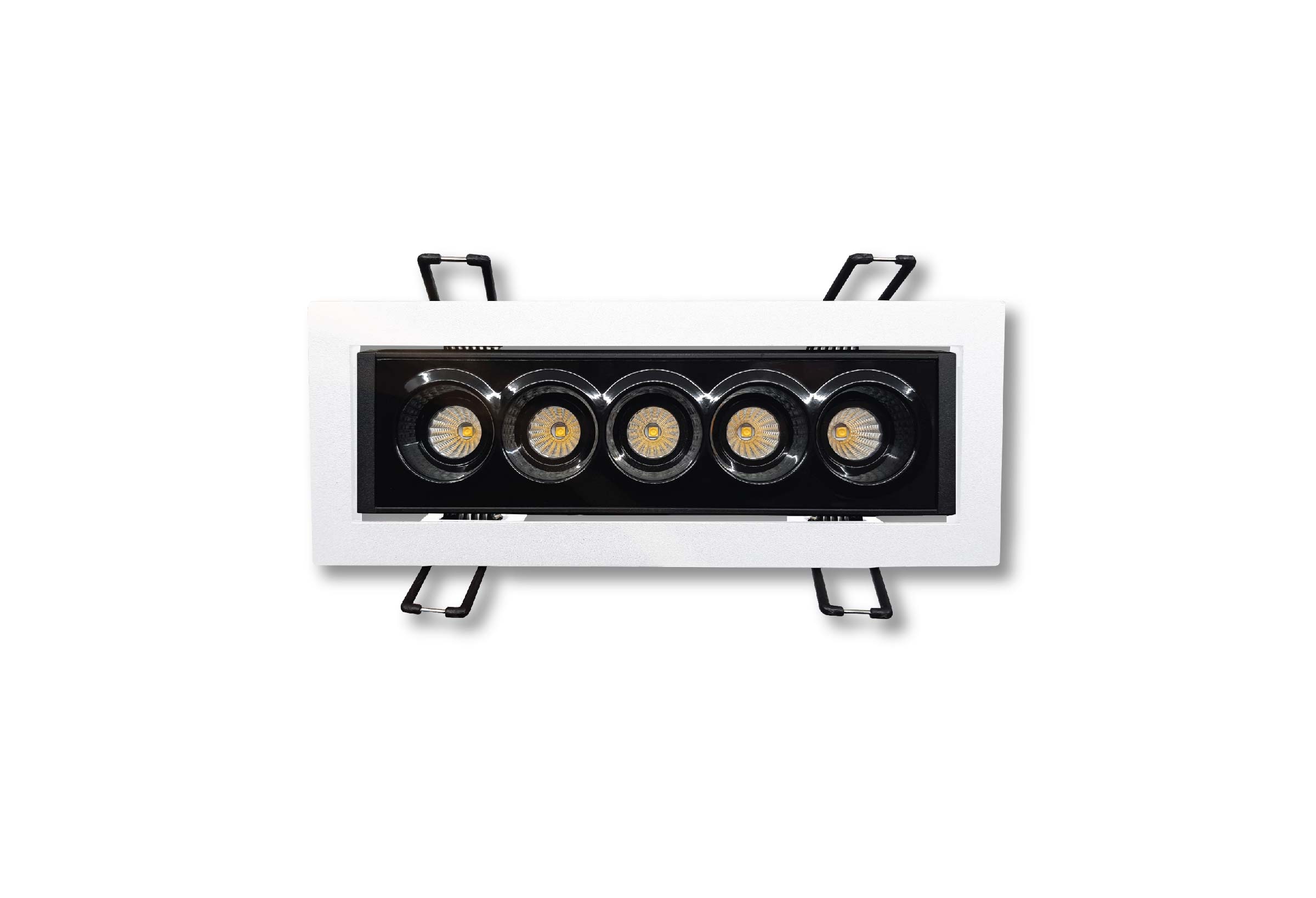

The DASH linear downlight series delivers both flexibility and performance in any space. This recessed design is available in three sizes & two finishes

+    10W (Also available in 20W and 6W sizes)
+    Tiltable up to 30°
+    IC-4 rated
+    High CRI
+    DALI dimming available upon request

Product Codes:

10W, White, 3000K 7-DA2M10W453
10W, White 4000K 7-DA2M10W454
10W, Black, 3000K 7-DA2M10B453
10W, Black, 4000K 7-DA2M10B454

Specifications

Category: Downlights
Material: Powder Coat Aluminium
IP Rating: 20
Light Source: 10W LED
Lumen Output: 600 lm (3000K) | 670 lm (4000K)
Finishes: Black/White
Mounting Type: Ceiling

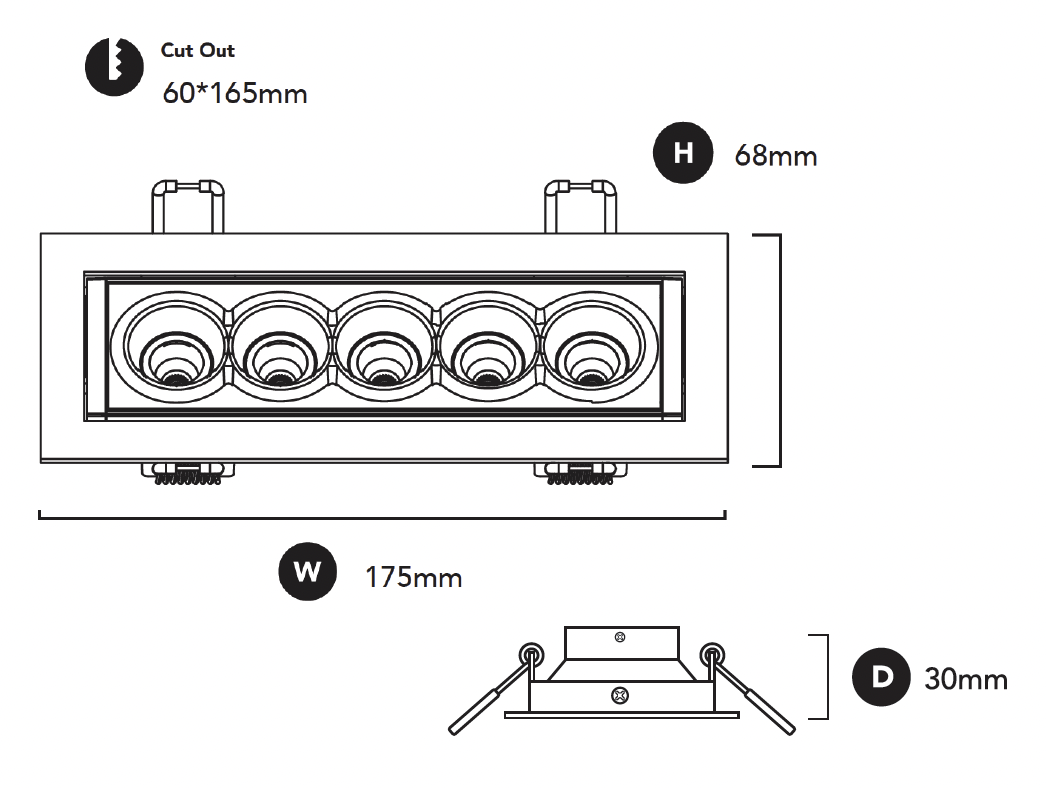

Dimensions: 175 (W) x 68 (H) mm (cut-out 165 x 60 mm)
Line Drawing: View

Downloads

line drawing
