Linea Modulare i Quadri System

Aldo Bernardi

Linea Modulare i Quadri System

Enquire Now

Share this product

Product Information

The composition includes spot, eventual connection box and conduits 16 mm diam.
The spot consists of a base in antique brass or satin nickel and from a ceramic lamp holder, glossy white or glossy black finishing. It can be used as a single spot or with more right angle outputs. Conduits are available in the same finishes of the spot. The connection box, which may be used as in the photo presented of the catalog, can be used to realize a strip of square.
Not dimmable.

Product Codes:
116-SQ/O/... 116-SQ3/NS/...
116-SQ/NS/... 116-SQ4/O/...
116-SQ1/O/... 116-SQ4/NS/...
116-SQ1/NS/... 116-SQDER90/O
116-SQ90/O/... 116-SQDER90/NS
116-SQ90/NS/... 116-SQDER4/O
116-SQ180/O/... 116-SQDER4/NS
116-SQ180/NS/... 116-LIN2/O/26
116-SQ3/O/... 116-LIN2/NS/26

* Refer to line drawings for more information


Designer: Aldo Bernardi
Category: Ceiling Lights
Material: Brass | Ceramic | Nickel
IP Rating: 20
Light Source: E27 max 42W
Finishes: Black/Brass/Nickel/White
Mounting Type: Ceiling/Surface/Wall
Dimensions: Refer to line drawing

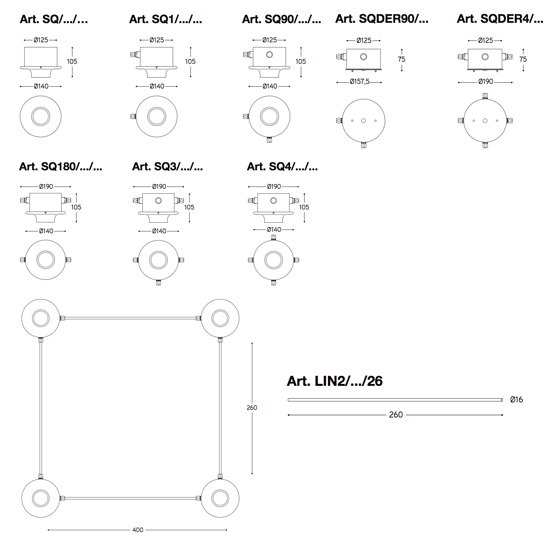

Line Drawing: View


line drawing
