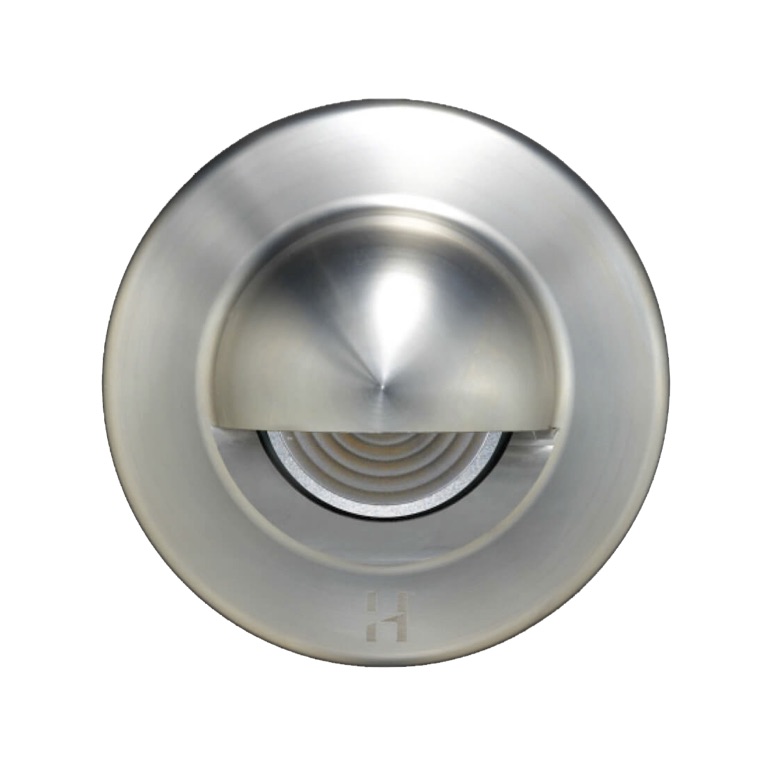

Step Lite Solid Eyelid Round
Hunza
Step Lite Solid Eyelid Round
Enquire Now
Share this product
Product Information
The Step Lite Solid Eyelid is designed with a 88mm (3 1/2”) flange and recessed body for flush mounting into concrete masonry, stone or wood, providing illumination of steps and low level features such as exterior paved areas. The eyelid feature eliminates all upward light, providing an excellent glare-free illuminating effect. When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters must be specified when ordering). The luminaire is machined from a choice of 10mm (3/8”) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steelwith a clear, tempered, stepped glass lens and high temperature silicon gaskets.
Beam Angles: 15°, 25°, 38° and 60°
Click here to view all colour options available for Hunza fittings
Product Codes:
| 12V |
GU10 |
PureLED |
| 73-140 (Black) |
73-143GU (White) |
73-145PURE (S Steel) |
| 73-140F (Black, Flange Only) |
73-141GU (Solid Copper) |
|
| 73-141 (Solid Copper) |
73-145GU (S Steel) |
|
| 73-141F (Solid Copper, Flange Only) |
|
|
| 73-143 (White) |
|
|
| 73-142 (White Birch) |
|
|
| 73-144 (Dark Grey) |
|
|
| 73-145 (S Steel) |
|
|
| 73-147 (Metallic Silver) |
|
|
| 73-148 (Bronze) |
|
|
| 73-148F (Bronze, Flange Only) |
|
|
| 73-149 (Silver Star) |
|
|
*Other codes available upon request
Specifications
| Designer: |
Hunza |
| Category: |
Outdoor Lighting |
| Material: |
Aluminium, Copper and Stainless Steel |
| IP Rating: |
66 |
| Light Source: |
Halogen 1 x 35W or LED 1 x 6W |
| Finishes: |
Copper/Stainless Steel |
| Dimensions: |
Ø 88 x 68.5 (H) mm |

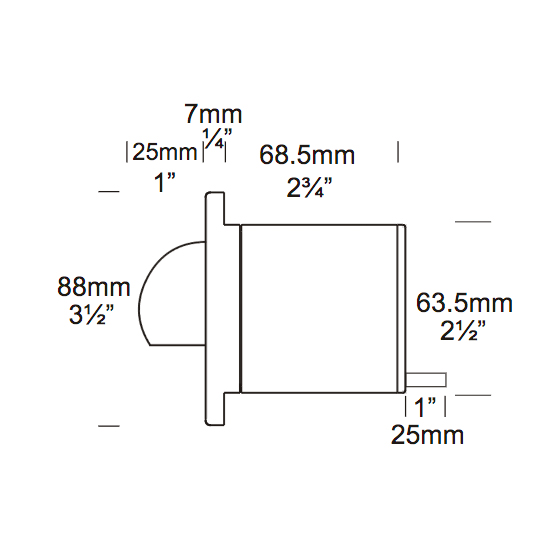

| Line Drawing: |
View |
Downloads
