Modux 1 Square

LuxR

Modux 1 Square

Enquire Now

Share this product

Product Information

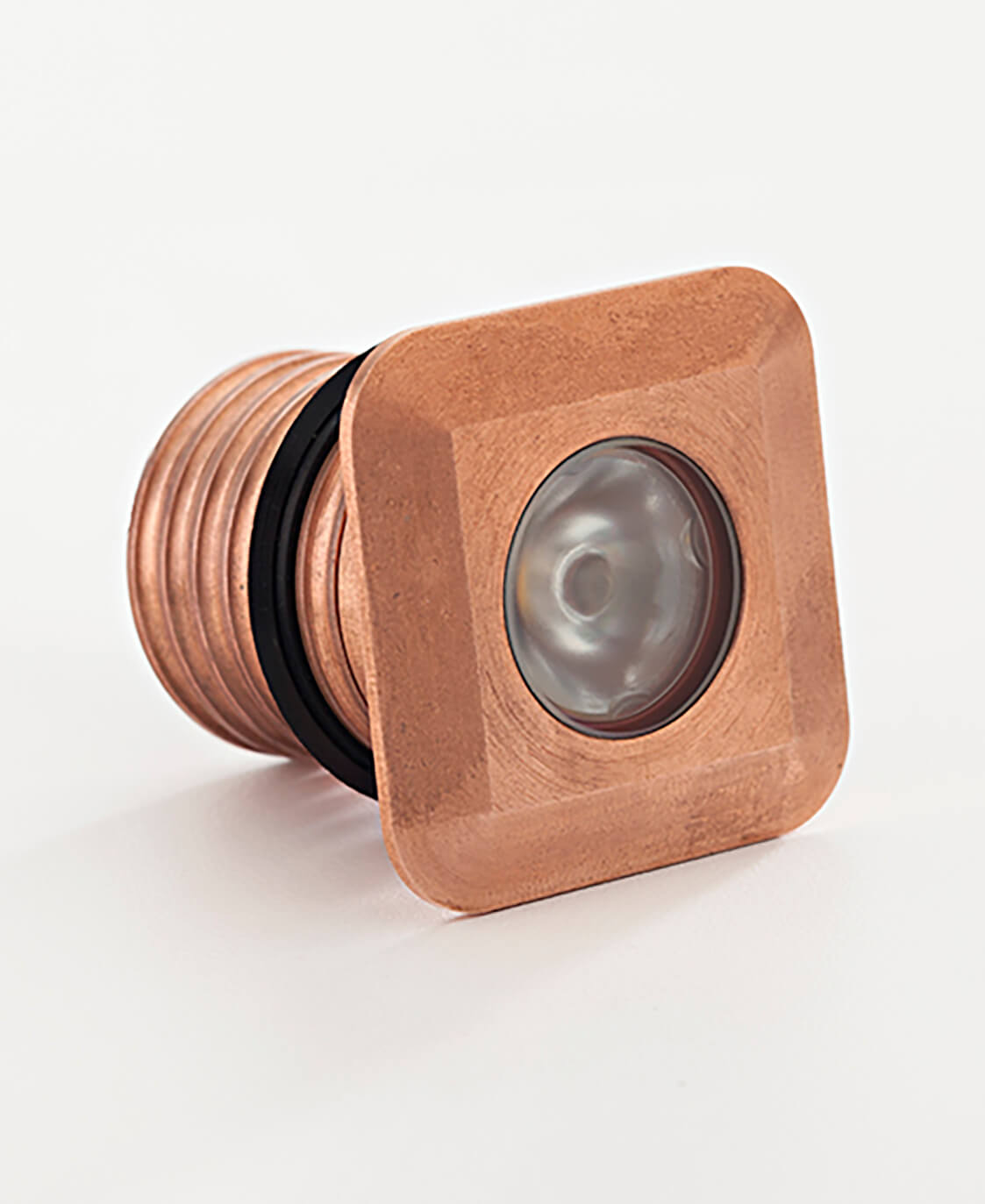

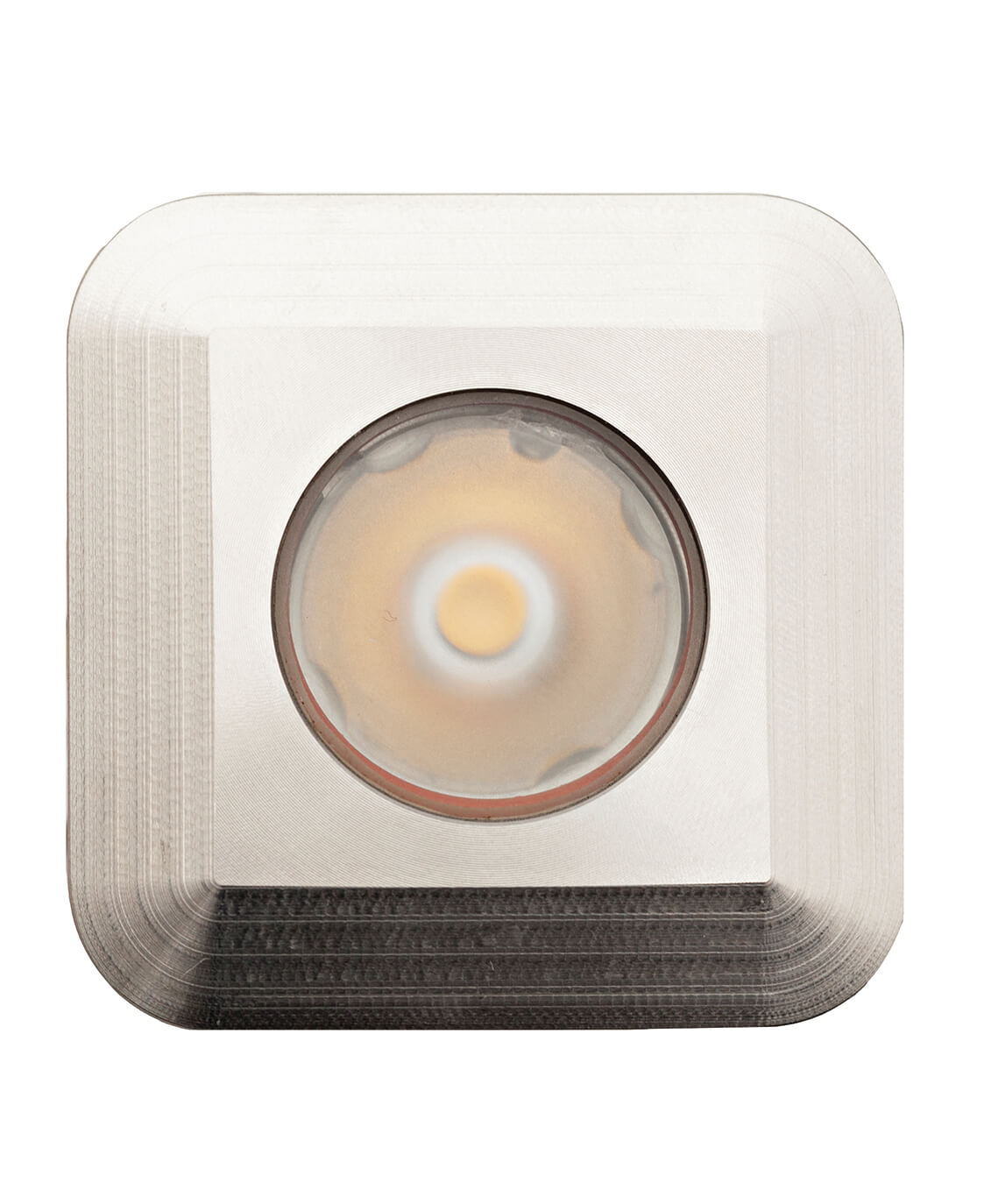

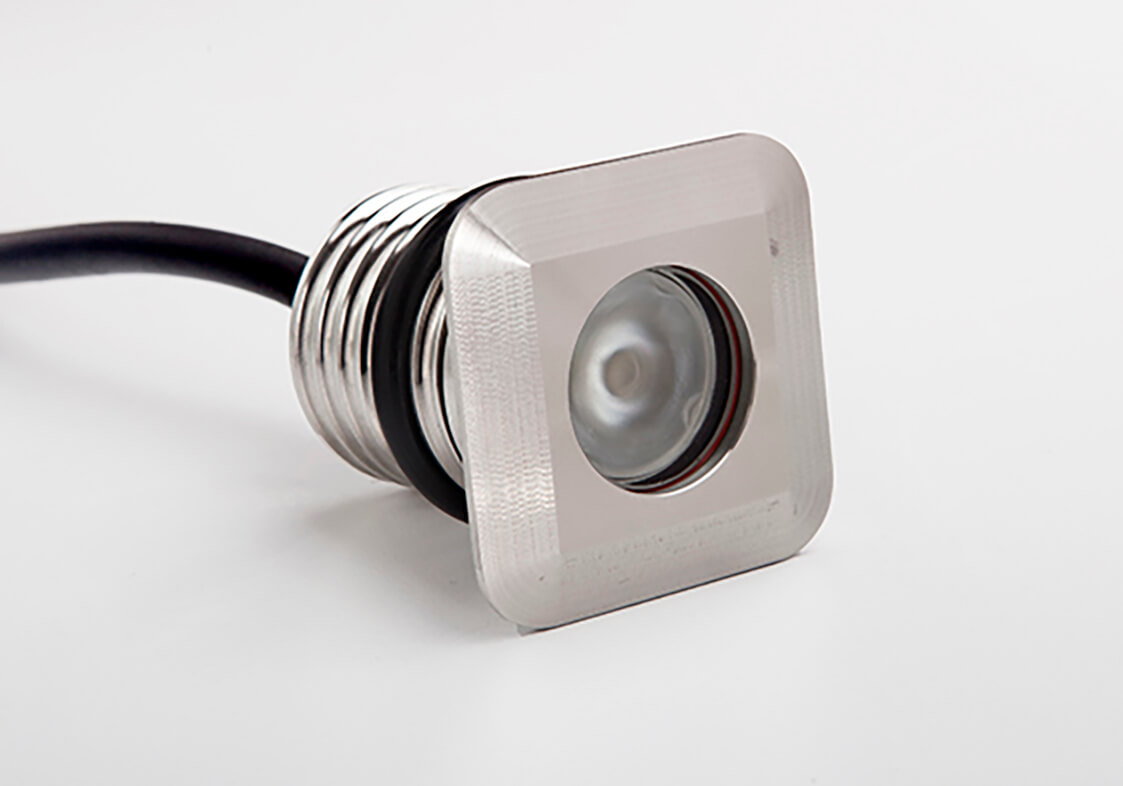

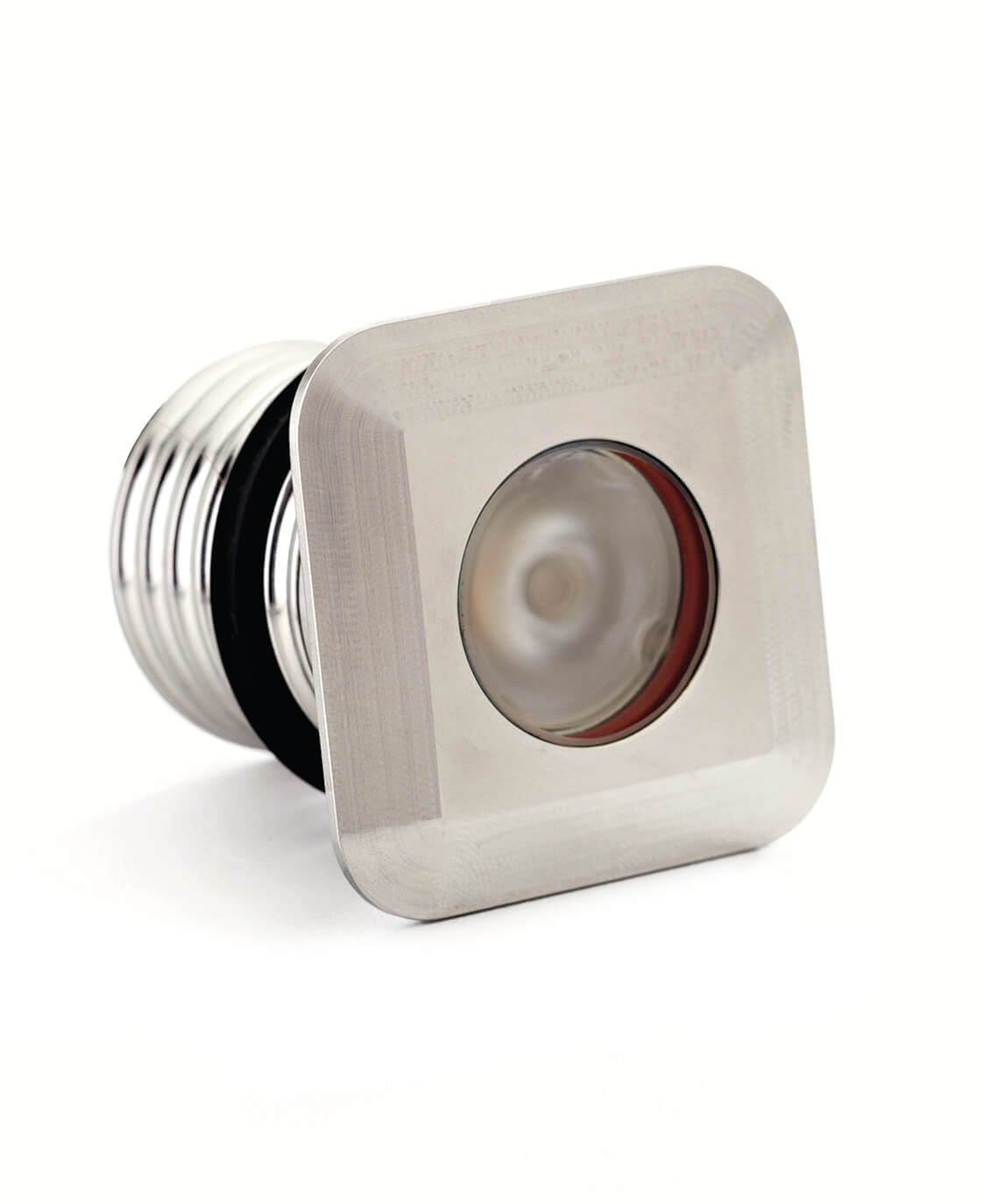

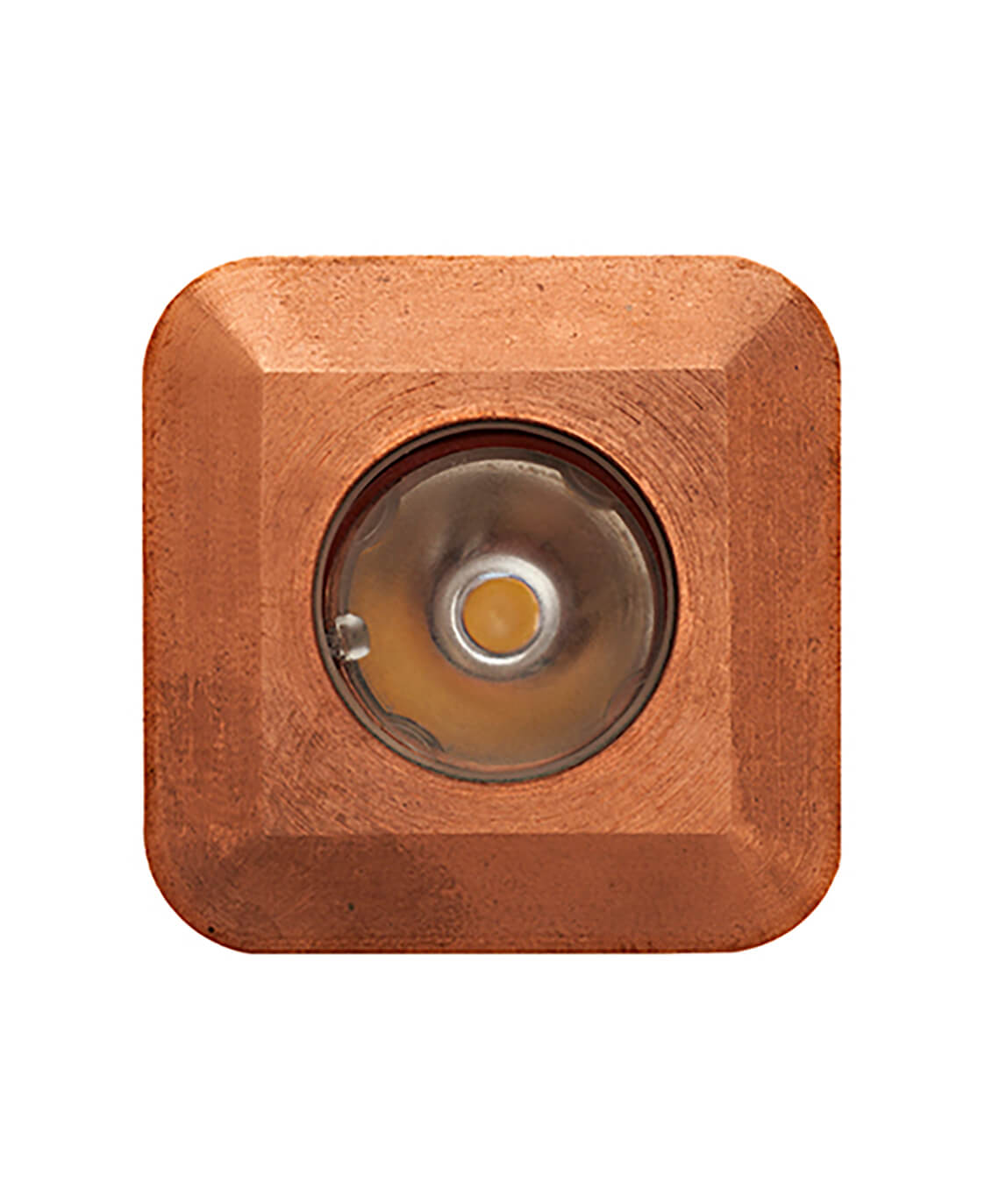

The LuxR™ Modux 1 Square recessed luminaire is designed to be mounted either in the ground or on the floor as a low profile uplighter, or in walls or steps to illuminate paths and stairways. It can be installed either outdoors or indoors.

Beam Angles: 15°, 30°, 53°, 50+17°

Product Codes:

128-M1SRABK1530 Black
128-M1SRC1530 Copper
128-M1SRS1530 Stainless Steel

Specifications

Designer: LuxR
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 66
Light Source: LED 1W 3000K
Lumen Output: 65
Finishes: Copper/Stainless Steel
Mounting Type: Recessed
Dimensions: Ø 42 x 38.5 (H) mm

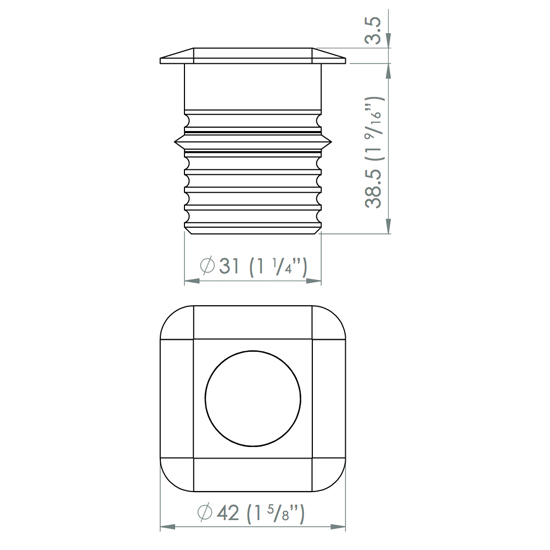

Line Drawing: View

Downloads

line drawing
