Split

Faze

Split

Enquire Now

Share this product

Product Information

Designed to revolve around any application, the Split is minimalist in design and precise in lighting application.
  • Innovative rotating lens head
  • High quality aluminium housing
  • Adjustable 60° / Rotatable 350°
  • Available in different beam angles
  • High lumen output per watt
  • Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU)
  • Remote DALI dimming available upon request
Product Codes:

White, 3000K, 50°  83-SP12W503
White, 4000K, 50°  83-SP12W504

Black, 3000K, 50° 83-SP12B503
Black, 4000K, 50° 83-SP12B504

25° Reflector 83-RFL25
36° Reflector 83-RFL36

Gold Baffle 83-SPLITRG
White Baffle 83-SPLITRW
Honeycomb Lens 83-AIRH



Specifications

Category: Ceiling Lights
Material: Powder Coated Aluminium
IP Rating: 20
Light Source: LED 12W
Lumen Output: 1070 lm (3000K) | 1123 lm (4000K)
Finishes: Black/White - Black
Mounting Type: Ceiling/Surface

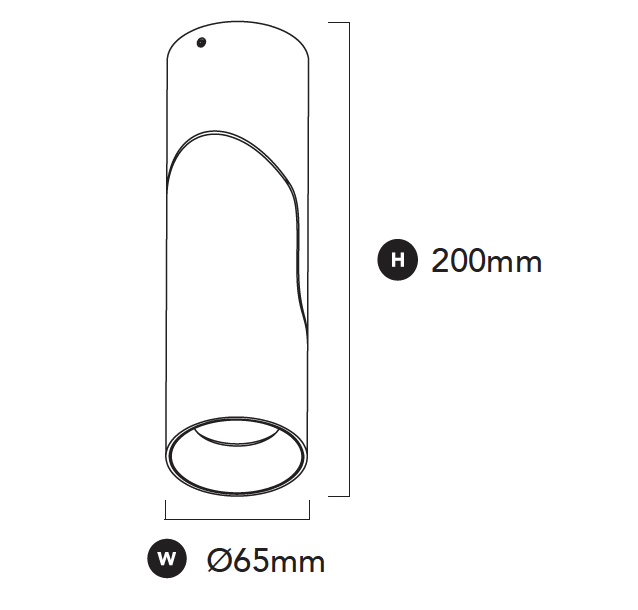

Dimensions: Ø 65 x 200 (H) mm
Line Drawing: View

Downloads

line drawing
