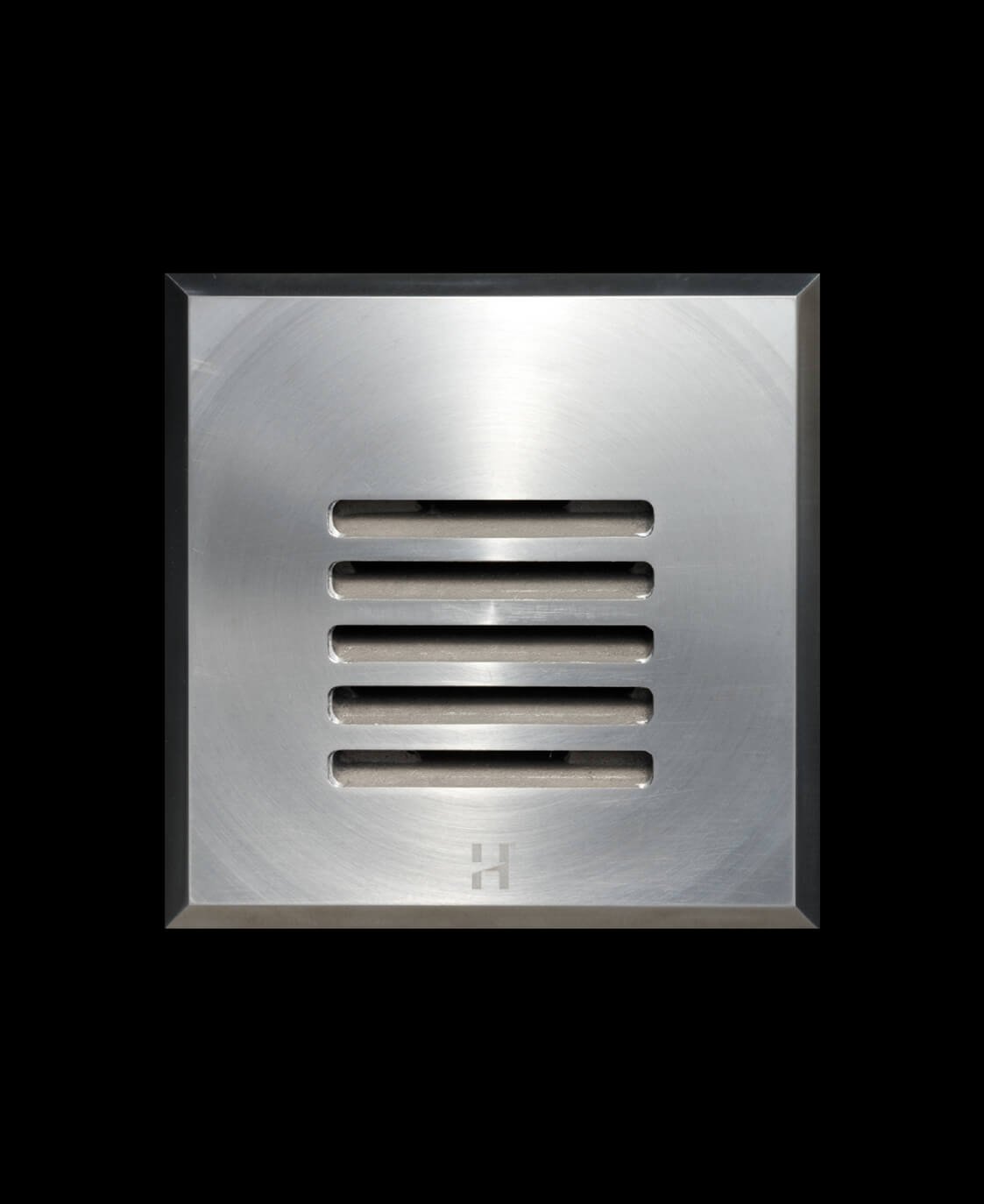

Step Lite Square Louvre

Hunza

Step Lite Square Louvre

Enquire Now

Share this product

Product Information

The Step Lite Louvre Square is designed with a 88mm (3 1/2”) low-profile flange and recessed body for flush mounting into concrete masonry, stone or wood, providing illumination of steps and low level features, for exterior paved areas. The 45 degree louvre eliminates all upward light, providing an excellent glare-free illuminating effect. When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters
must be specified when ordering). The luminaire is machined from a choice of solid copper or 316 stainless steel with a clear, tempered, stepped glass lens and high temperature silicon gaskets.
Beam Angles: 15°, 25°, 38° and 60°

Click here to view all colour options available for Hunza fittings

Product Codes:

Stainless Steel Solid Copper
73-995 73-991
73-995GU (GU10) 73-991GU (GU10)
73-995F (Flange Only)

*Other codes available upon request


Specifications

Designer: Hunza
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 66
Light Source: Halogen 1 x 35W or LED 1 x 6W
Finishes: Copper/Stainless Steel
Dimensions: 88 (L) x 88 (W) x 68.5 (H) mm

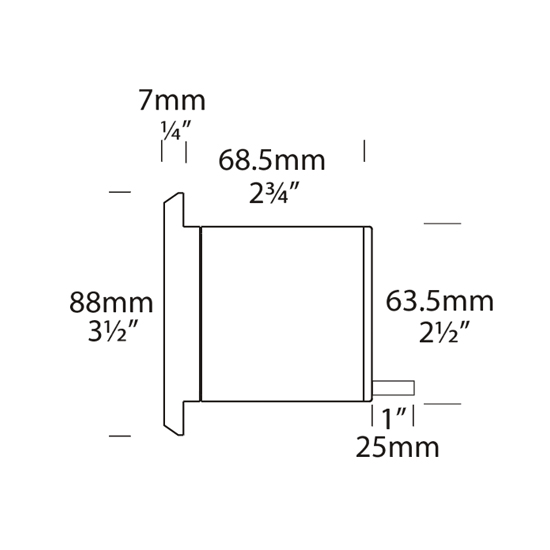

Line Drawing: View

Downloads

line drawing
