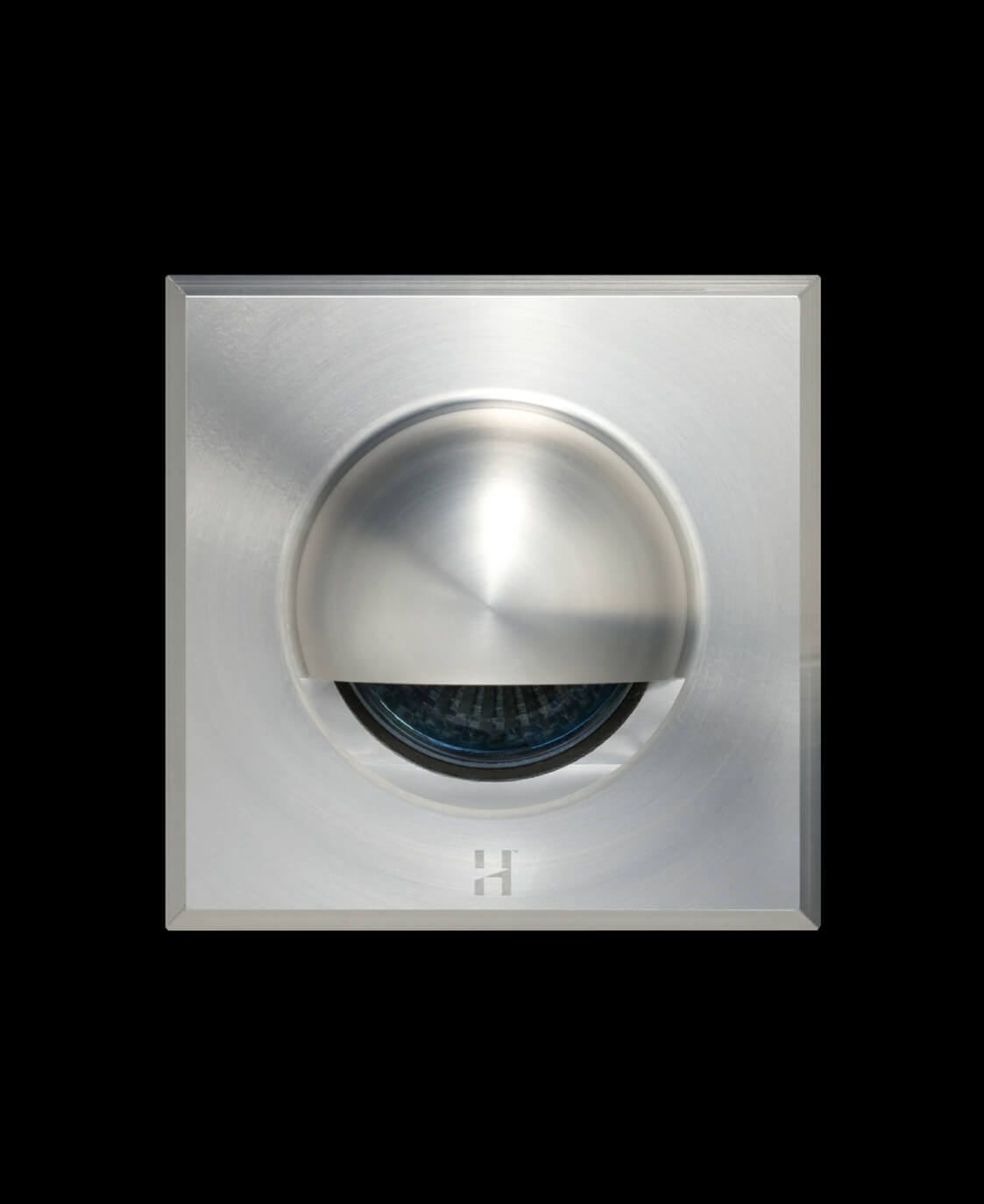

Step Lite Solid Eyelid Square

Hunza

Step Lite Solid Eyelid Square

Enquire Now

Share this product

Product Information

The Step Lite Solid Eyelid Square is designed with a 88mm (3 1/2”) flange and recessed body for flush mounting into concrete masonry, stone or wood, providing illumination of steps and low level features such as exterior paved areas. The eyelid feature eliminates all upward light, providing an excellent glare-free illuminating effect. When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters must be specified when ordering). The luminaire is machined from a choice of 10mm (3/8”) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steelwith a clear, tempered, stepped glass lens and high temperature silicon gaskets.
Beam Angles: 15°, 25°, 38° and 60°

Click here to view all colour options available for Hunza fittings

Product Codes:

73-970 (Black)
73-971 (Solid Copper)
73-972 (White Birch)
73-973 (White)
73-974 (Dark Grey)
73-975 (Stainless Steel)
73-977 (Metallic Silver)
73-978 (Bronze)
73-979 (Silver Star)

*Other codes available upon request



Specifications

Designer: Hunza
Category: Outdoor Lighting
Material: Aluminium, Copper and Stainless Steel
IP Rating: 66
Light Source: Halogen 1 x 35W or LED 1 x 6W
Finishes: Black/Bronze/Copper/Grey/Silver/Stainless Steel/White
Dimensions: 88 (L) x 88 (W) x 68.5 (H) mm

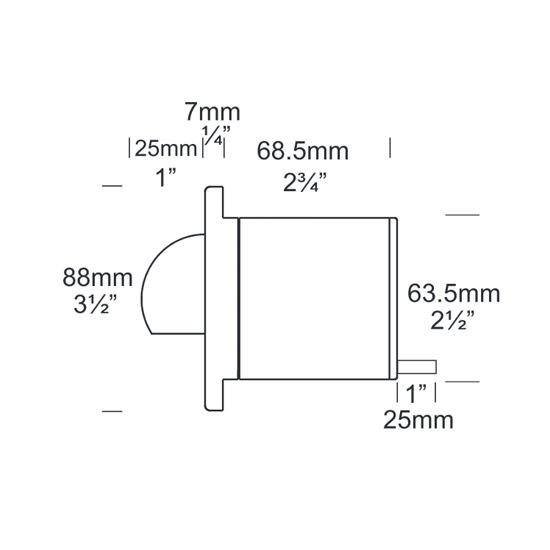

Line Drawing: View

Downloads

line drawing
