Step Lite Round

Hunza

Step Lite Round

Enquire Now

Share this product

Product Information

The Step Lite is designed with a 88mm (2 1/2”) flange and recessed body for flush mounting into concrete masonry, stone or wood, providing illumination of steps and low level features, for example, across driveways or exterior paved areas. When a HUNZA mounting canister is used there are no mounting holes in the flange (this option must be specified when ordering). The luminaire is machined from a choice of 10mm (3/8”) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steelwith a clear, tempered, stepped glass lens and high temperature silicon gaskets.
Beam Angles: 15°, 25°, 38° and 60°

Click here to view all colour options available for Hunza fittings

Product Codes:

12V GU10
73-150 (Black) 73-150GU (Black)
73-151 (Solid Copper) 73-151GU (Solid Copper)
73-152 (White Birch) 73-152GU (White Birch)
73-153 (White) 73-153GU (White)
73-154 (Dark Grey) 73-154GU (Dark Grey)
73-155 (Stainless Steel) 73-155GU (Stainless Steel)
73-157 (Metallic Silver) 73-157GU (Metallic Silver)
73-158 (Bronze) 73-158GU (Bronze)
73-159 (Silver Star) 73-159GU (Silver Star)

*Other codes avialble upon request

Specifications

Designer: Hunza
Category: Outdoor Lighting
Material: Aluminium, Copper and Stainless Steel
IP Rating: 66
Light Source: Halogen 1 x 35W or LED 1 x 6W
Finishes: Black/Bronze/Copper/Grey/Silver/Stainless Steel/White
Dimensions: Ø 88 x 68.5 (H) mm

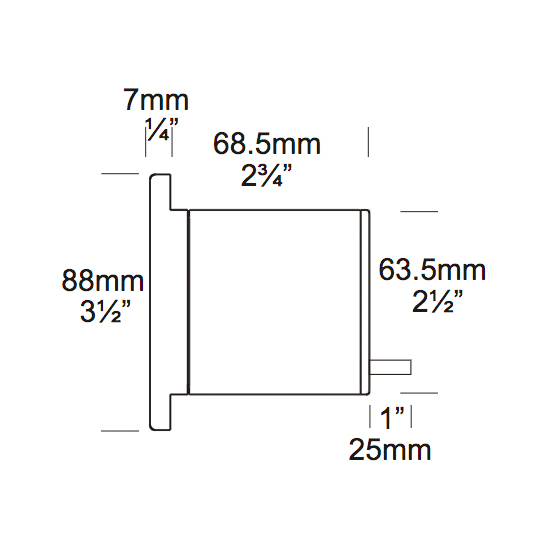

Line Drawing: View

Downloads

line drawing
