Pillar Pagoda Lite / Retro / GU10


Pillar Pagoda Lite / Retro / GU10

Product Enquiry

Share this product

Product Information

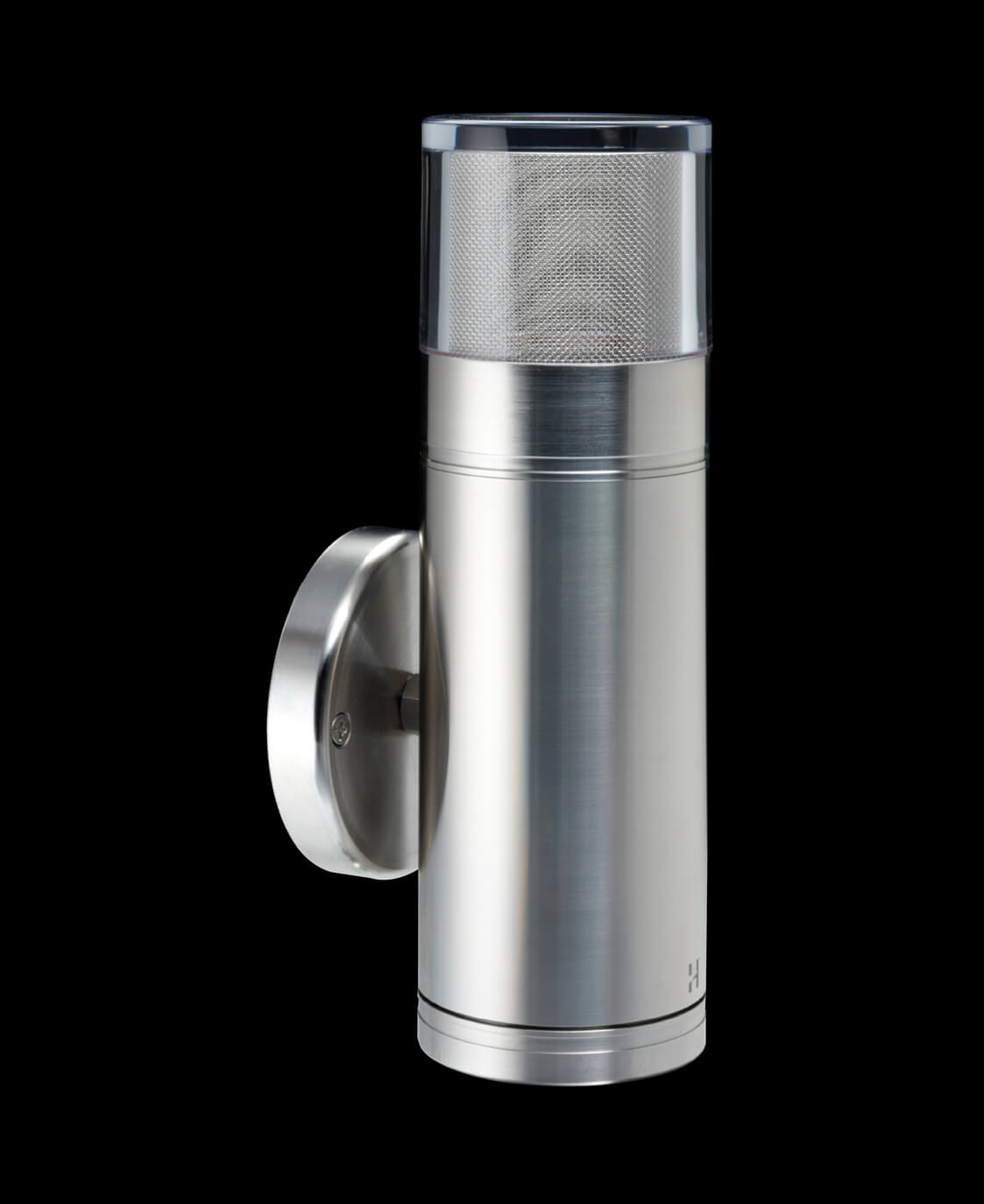

The Pillar Pagoda Lite has a G4 and a MR16 lamp. The G4 lamp can be used to produce a general lighting effect, while the MR16 may be used for uplighting or downlighting.

The luminaire is machined from a choice of 10mm (3/8”) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steelwith a clear, tempered, stepped glass lens and high temperature silicon gaskets.

The Retro is a 110/240-12 ac mains option suited to an installation where mounting a transformer is a problem, e.g. a brick wall where there is only the cable protruding out of the wall and it is not an option to recess the transformer or when replacing an existing light fitting. The base size increases in size to accommodate the encapsulated IP66 dimmable transformer.


Designer: Hunza
Category: Outdoor Lighting
Material: Aluminium, Copper and Stainless Steel
IP Rating: 66
Light Source: Halogen 1 x 20W G4 + Halogen 1 x 35W MR16 or LED 1 x 6W
Finishes: Black/Bronze/Copper/Corten/Grey/Metalic Silver/Silver/Stainless Steel/White
Mounting Type: Surface/Wall
Dimensions: Ø 63.5 x 202 (H) mm | Ø 63.5 x 217 (H) mm Gu10

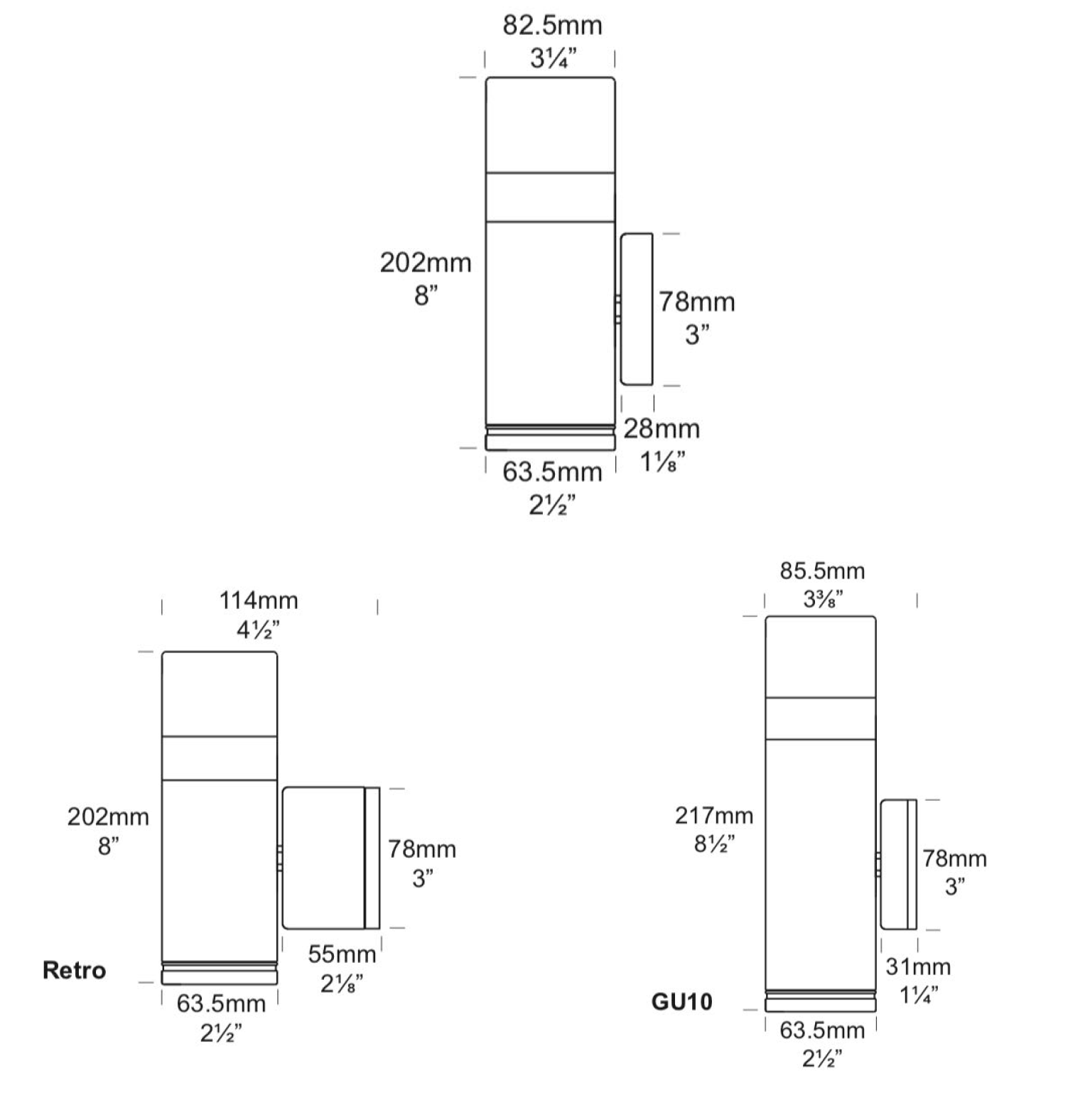

Line Drawing: View


line drawing
