Modux Micro Diamond


Modux Micro Diamond

Enquire Now

Share this product

Product Information

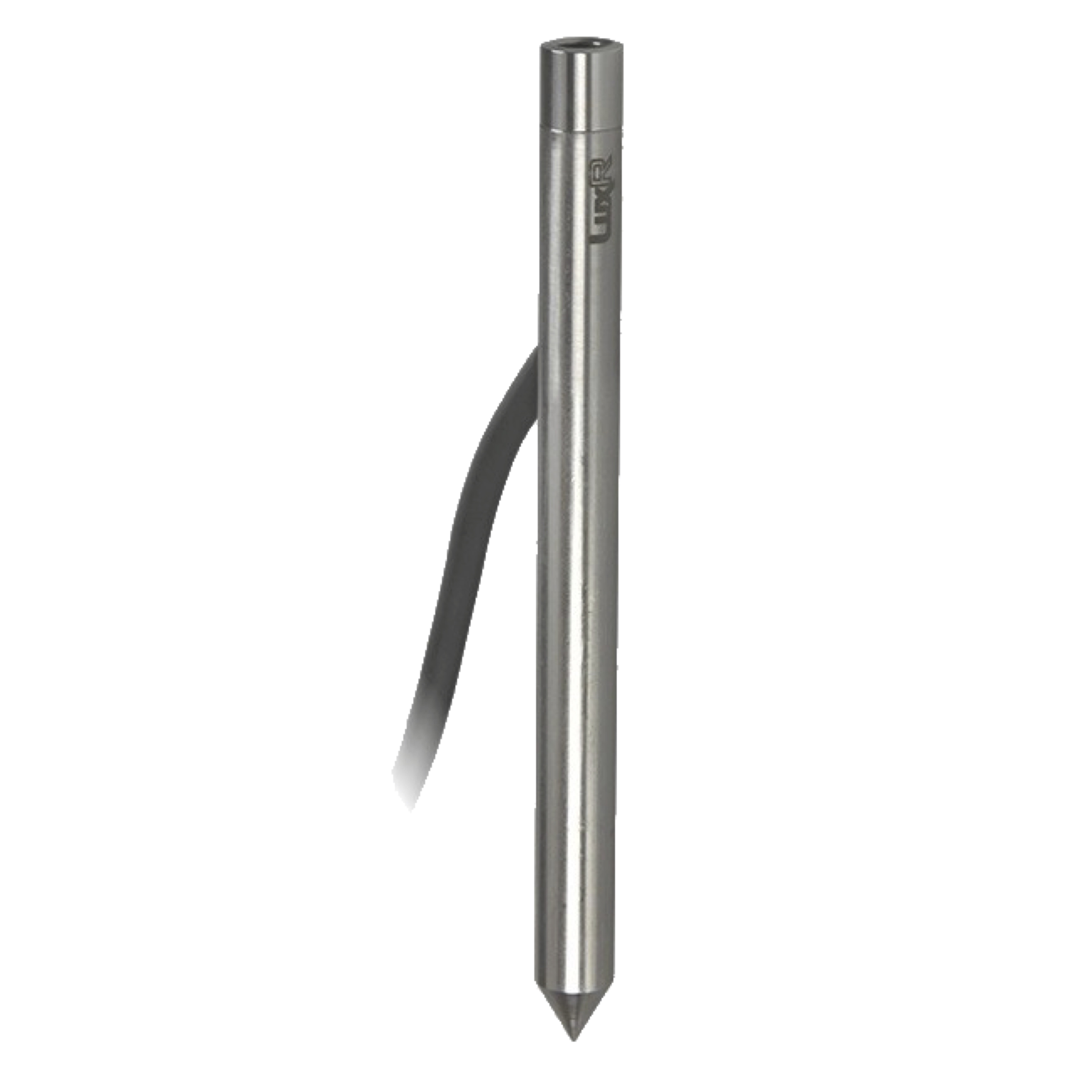

The LuxR Modux Micro Diamond 180° / 360° is a miniature low-voltage dimmable outdoor uplight, with a 100mm spike for installing into soil. Illumination is directed in a 180° / 360° band inclined upward, ideal for illuminating shrubbery. Simply plant and orient. Ideal for planters and larger pots. Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves  IP68 water ingress rating for piece of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

Product Codes:

128-MMSD180RC30 (Copper, 180°)
128-MMSD360RC30 (Copper, 360°)
128-MMSD180RS30 (Stainless Steel, 180°)
128-MMSD360RS30 (Stainless Steel, 360°)


Designer: LuxR
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 20
Light Source: LED 1W 3000K
Lumen Output: 55Lm/W
Finishes: Copper/Stainless Steel
Dimensions: Ø 12.7 x 160 (H) mm

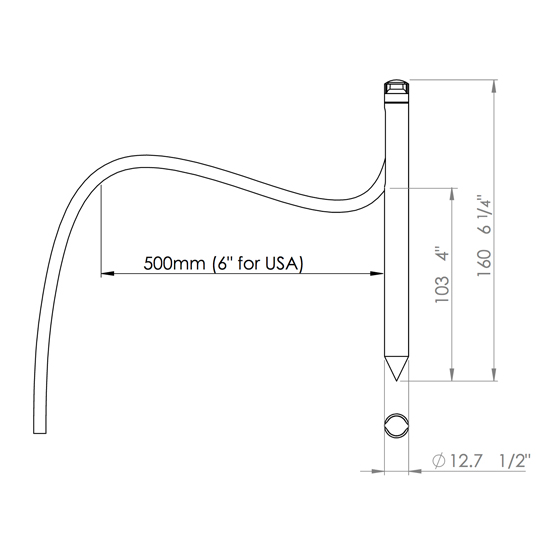

Line Drawing: View


line drawing
