Modux 2 & 4 Round

LuxR

Modux 2 & 4 Round

Enquire Now

Share this product

Product Information

The Modux 2 & 4 recessed luminaires are designed to be mounted either in the ground or floor as low profile uplighters, or in walls or steps to illuminate paths and stairways. They can be installed either outdoors or indoors and offer the option of either a round or square flange.

Beam Angles:

Modux 2: 8°, 26°, 36°, 74°, 15°+40° Oval
Modux 4: 12°, 26°, 36°, 74°, 15°+40° Oval

Product Codes:

Modux 2: Modux 4:
128-M2RRABK2630 (Black, 26°) 128-M4RRABK2630 (Black, 26°)
128-M2RRABK7430 (Black, 74°) 128-M4RRABK7430 (Black, 74°)
128-M2RRC2630 (Copper, 26°) 128-M4RRC2630 (Copper, 26°)
128-M2RRC7430 (Copper, 74°) 128-M4RRC7430 (Copper, 74°)
128-M2RRS2630 (Stainless Steel, 26°) 128-M4RRS2630 (Stainless Steel, 26°)
128-M2RRS7430 (Stainless Steel, 74°) 128-M4RRS23630 (Stainless Steel, 36°)
  128-M4RRS7430 (Stainless Steel, 74°)

Specifications

Designer: LuxR
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 68
Light Source: M2: 2W | M4: 4W
Lumen Output: 170 | 360
Finishes: Black/Copper/Stainless Steel
Dimensions: Ø 58 x 62 (H) mm

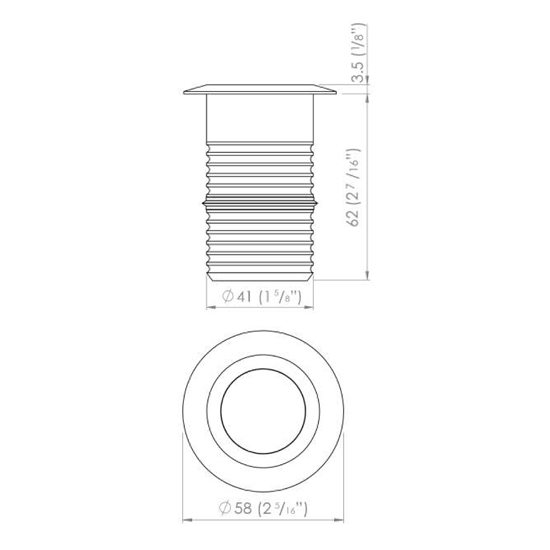

Line Drawing: View

Downloads

line drawing
