Product Information

The M2 & M4 Squarelight Wash are a low-voltage dimmable outdoor feature light that produces a wash distribution 5 degrees below the flange lip in a narrow decorative band. Can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications.

Beam Angles: -5°, +10°

Product Codes:

Modux 2, 1 Facet Wash Modux 2, 2 Facet Wash
128-M2SQ1RABK30 (Black) 128-M2SQ2RABK30 (Black)
128-M2SQ1RC30 (Copper) 128-M2SQ2RC30 (Copper)
128-M2SQ1RS30 (Stainless Steel) 128-M2SQ2RS30 (Stainless Steel)
Modux 4, 1 Facet Wash Modux 4, 2 Facet Wash
128-M4SQ1RABK30  (Black) 128-M4SQ2RABK30 (Black)
128-M4SQ1RC30 (Copper) 128-M4SQ2RC30 (Copper)
128-M4SQ1RS30 (Stainless Steel) 128-M4SQ2RS30 (Stainless Steel)



Category: Outdoor Lighting
Material: Powder Coat Aluminium, Solid Copper, Stainless Steel
IP Rating: 68
Light Source: Modux 2 - 2W / Modux 4 - 4W
Lumen Output: M2: 170 / M4: 360
Finishes: Black/Copper/Stainless Steel
Dimensions: 53 x 53 x 62 (h) mm

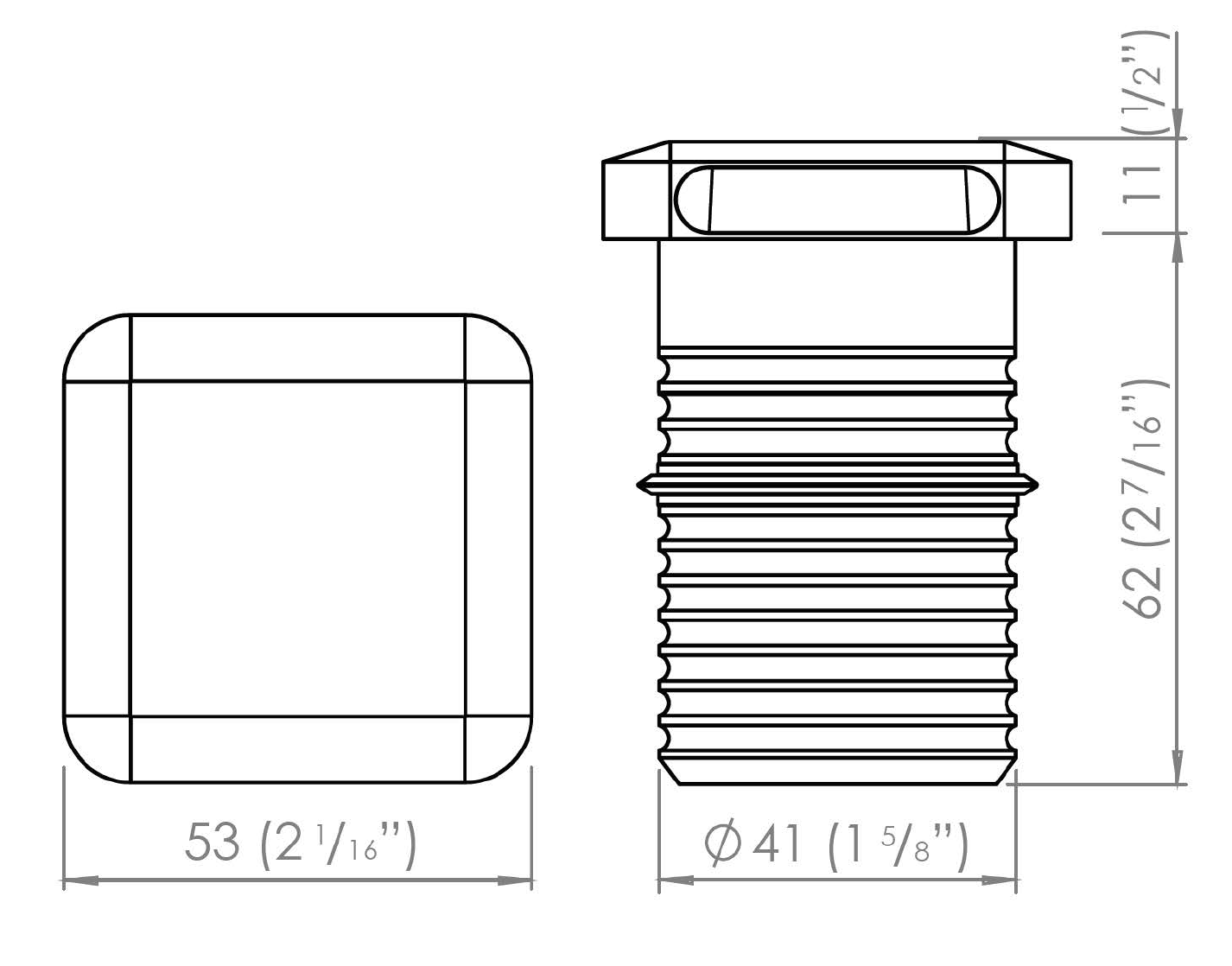

Line Drawing: View


line drawing
