Floor Lite Square

Hunza

Floor Lite Square

Enquire Now

Share this product

Product Information

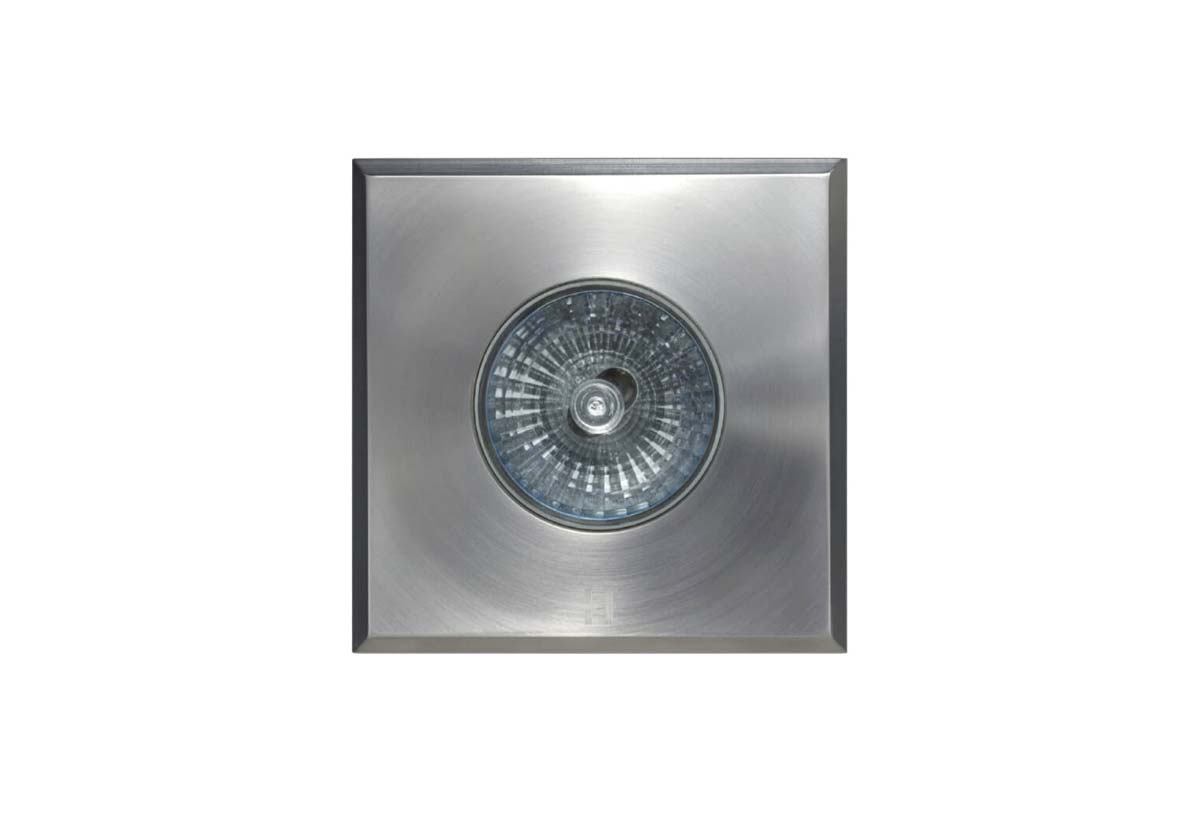

The Floor Lite Square has an 88mm (3 1/2”) flange which has an extremely low profile (3mm or 1/8”) and can be walked upon without damaging the luminaire. There are five flange designs: Clover #FLCLSQ; Grill #FLGRSQ; Louvre #FLLUSQ (45 degree angle); Spot #FLSPSQ (Spot also available in copper); Cross #FLCRSQ. The luminaire is held into the aluminium mounting canister by two ‘O’ rings that allow the luminaire to be removed for lamp replacement, hence there are no mounting screws in the flange to spoil the aesthetics of the luminaire. The Floor Lite Square is machined from 9mm (11/32”) thick 316 stainless steel and has a tempered glass lens with high temperature silicon gaskets. This luminaire is complete with an aluminium mounting canister, and is supplied with a 20 watt lamp to avoid undue heat generated by the lamp.

Click here to view all colour options available for Hunza fittings

Product Codes:

73-1055 (Stainless Steel, Canister Included)
73-1055F (Stainless Steel, No Canister)
73-1055C (Solid Copper, Canister Included)
73-1055CF (Solid Copper, No Canister)

*Other codes available upon request

Specifications

Designer: Hunza
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 66
Light Source: Halogen 1 x 35W MR16 or LED 1 x 6W
Finishes: Copper/Stainless Steel
Dimensions: 88 (L) x 88 (W) x 90 (H) mm

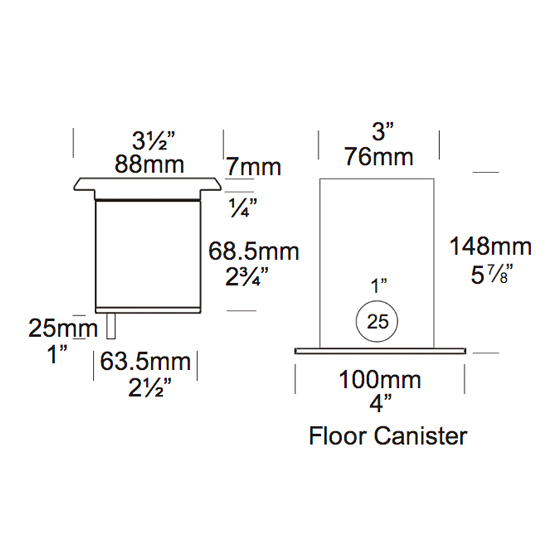

Line Drawing: View

Downloads

line drawing
