Delta 1 Asimmetrico

Delta 1 Asimmetrico

Product Information

Suitable for ground, ceiling, wall and pole installation. Also suitable for outdoor use. Body and joint in die-cast aluminium. Optical diffuser in transparent glass. Wide choice of colour temperatures and finishes. Reflector available in two main versions: optics that allow greater beam control or reflectors with greater homogeneity and opening. A4 stainless steel hardware. 180° tilt adjustment. Supplied with “Bordo Mare” treatment ideal for installations in areas at greater risk of corrosion. The product body is made of die-cast aluminium; high resistance to oxidation thanks to zirconium-based passivation treatment and coating with UV-stabilised polyester resins.

PRODUCT CODES: FINISH: WATTAGE: COLOUR TEMP:
48-LL15411WA13 White 40W 3000K
48-LL15411GA13 Grey 40W 3000K
48-LL15411KA13 Corten 40W 3000K
48-LL15411BA13 Black 40W 3000K
48-LL15411WA1N White 40W 4000K
48-LL15411GA1N Grey 40W 4000K
48-LL15411KA1N Corten 40W 4000K
48-LL15411BA1N Black 40W 4000K
48-LL15412WA13 White 50W 3000K
48-LL15412GA13 Grey 50W 3000K
48-LL15412KA13 Corten 50W 3000K
48-LL15412BA13 Black 50W 3000K
48-LL15412WA1N White 50W 4000K
48-LL15412GA1N Grey 50W 4000K
48-LL15412KA1N Corten 50W 4000K
48-LL15412BA1N Black 50W 4000K

Category:

Material:

Aluminium | Glass

IP Rating:

IP66

Light Source:

LED 40W | 50W

Lumen Output:

5676lm | 6815lm

Finishes:

Sizes:

Mounting Type:

Dimensions:

H 276mm x W 200mm x D 50mm

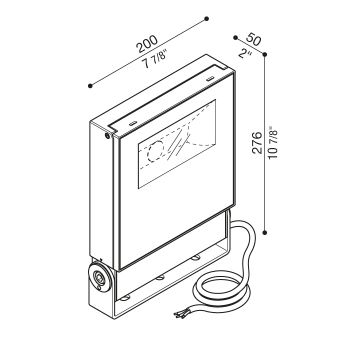

Line Drawing:
