Delta 0 Soft

Delta 0 Soft

Product Information

Suitable for ground, ceiling, wall and pole installation. Also suitable for outdoor use. Body and joint in die-cast aluminium. Optical diffuser in transparent glass. Wide choice of colour temperatures and finishes. Reflector available in two main versions: optics that allow greater beam control or reflectors with greater homogeneity and opening. A4 stainless steel hardware. 180° tilt adjustment. Supplied with “Bordo Mare” treatment ideal for installations in areas at greater risk of corrosion. The product body is made of die-cast aluminium; high resistance to oxidation thanks to zirconium-based passivation treatment and coating with UV-stabilised polyester resins.

PRODUCT CODES: FINISH: WATTAGE: COLOUR TEMP:
48-LL15401WSF3 White 20W 3000K
48-LL15401GSF3 Grey 20W 3000K
48-LL15401KSF3 Corten 20W 3000K
48-LL15401BSF3 Black 20W 3000K
48-LL15401WSFN White 20W 4000K
48-LL15401GSFN Grey 20W 4000K
48-LL15401KSFN Corten 20W 4000K
48-LL15401BSFN Black 20W 4000K
48-LL15402WSF3 White 30W 3000K
48-LL15402GSF3 Grey 30W 3000K
48-LL15402KSF3 Corten 30W 3000K
48-LL15402BSF3 Black 30W 3000K
48-LL15402WSFN White 30W 4000K
48-LL15402GSFN Grey 30W 4000K
48-LL15402KSFN Corten 30W 4000K
48-LL15402BSFN Black 30W 4000K

Category:

Material:

Aluminium | Glass

IP Rating:

IP66

Light Source:

LED 20W | 30W

Lumen Output:

1247lm | 2069lm

Finishes:

Sizes:

Mounting Type:

Dimensions:

H 210mm x W 155mm x D 38mm

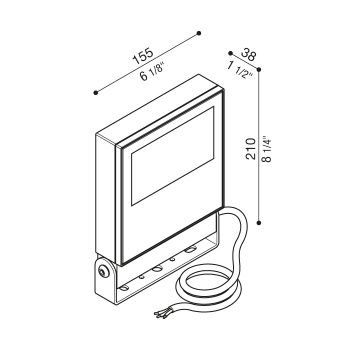

Line Drawing:
