Concept 3

Hunter Pacific

Concept 3

Product Enquiry

Share this product

Product Information

1320mm (52 inch) diameter
Slimline Motor Technology
Polymer Aerofoil blades
Die Cast aluminium body & canopy
Power Usage: 15W to 59W Airflow: 14,144 m3/hr
3 Speed

-    Suitable Indoor and outdoor (provided the fan is fully undercover)

Specifications

Category: Ceiling Fans
Material: Polymer Aerofoil, Die Cast Aluminium
IP Rating: -
Light Source: N/A
Finishes: Black/Stainless Steel/White
Mounting Type: Ceiling

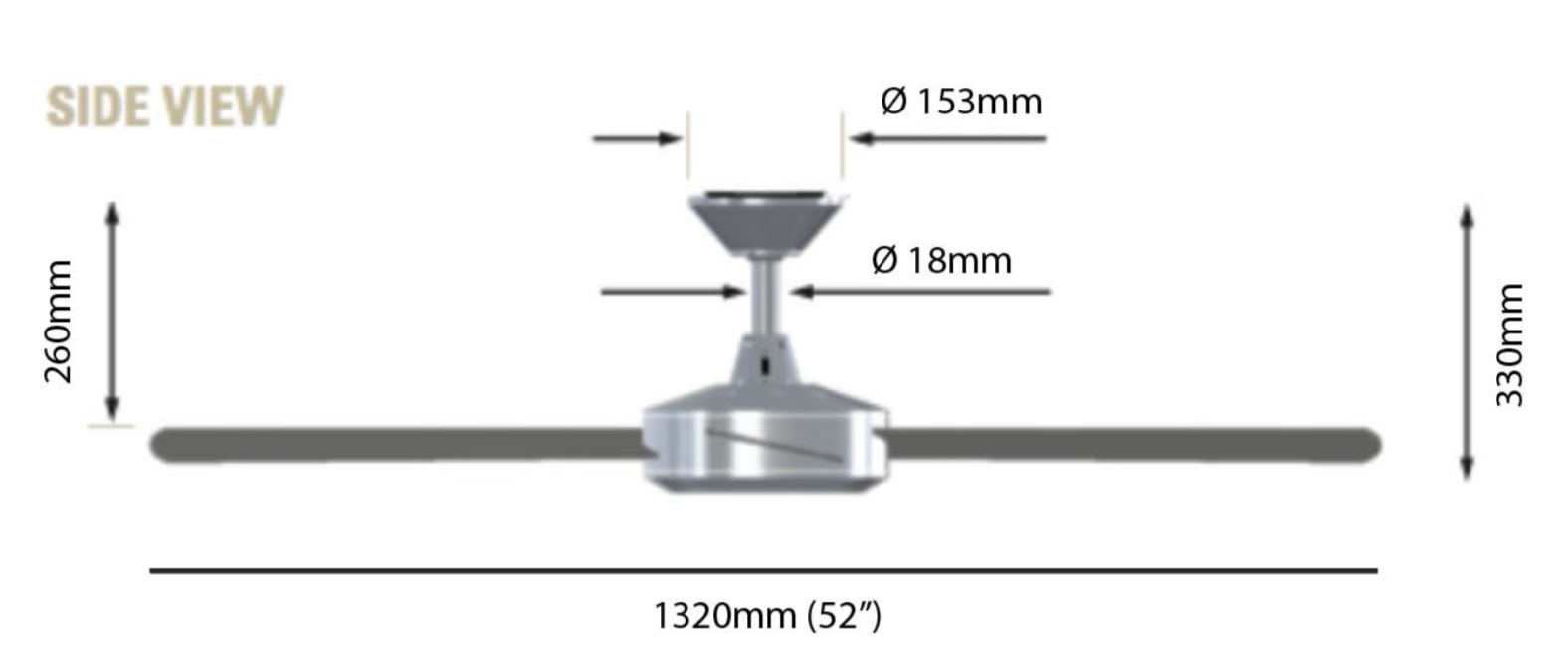

Dimensions: Rotational diameter: 52" (1320mm blade sweep) // Ceiling to top side of the blade: 260mm // Top of canopy cover to lowest point of fan: approx 330mm
Line Drawing: View

Downloads

line drawing
