Pro Square

Faze

Pro Square

Enquire Now

Share this product

Product Information

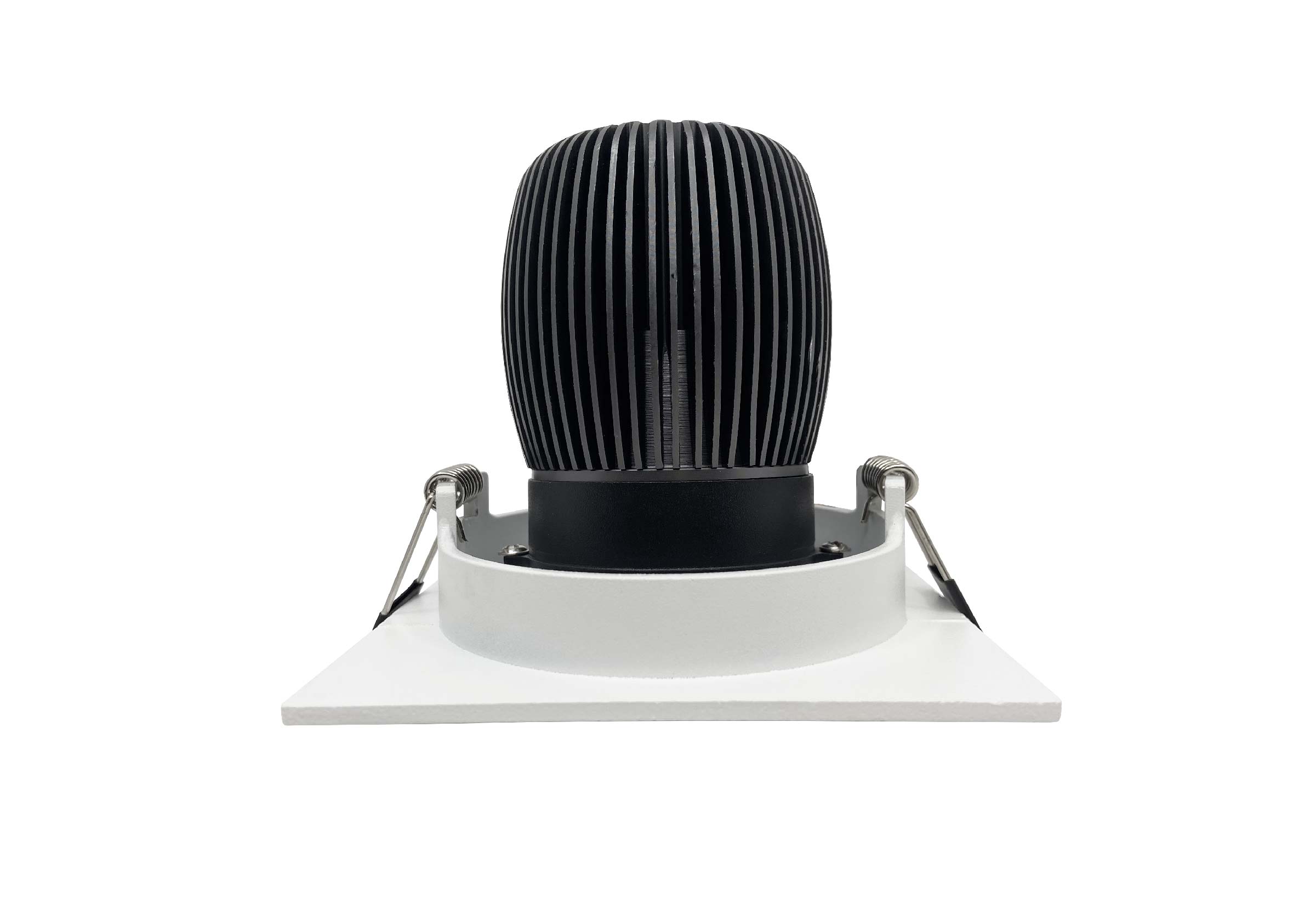

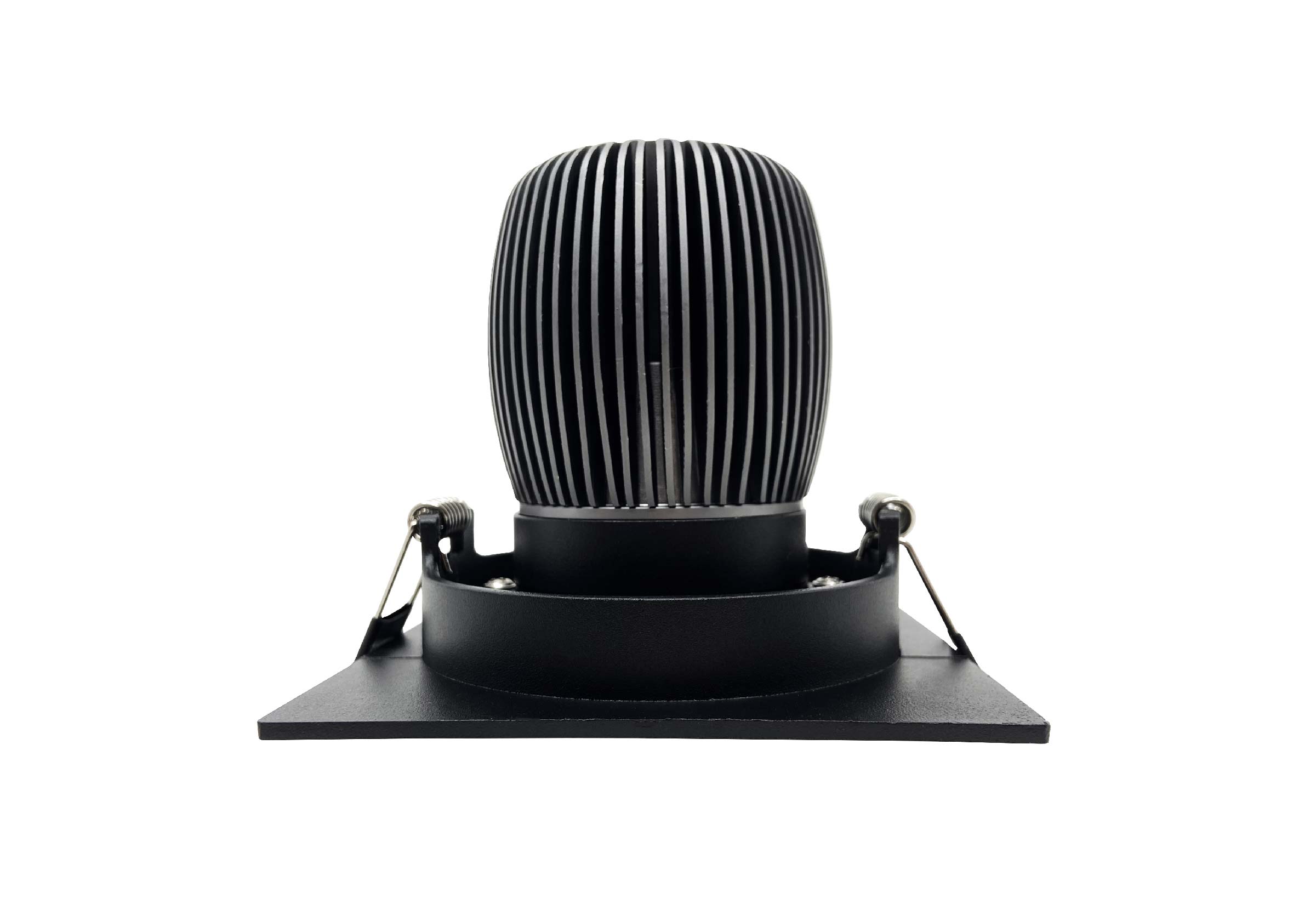

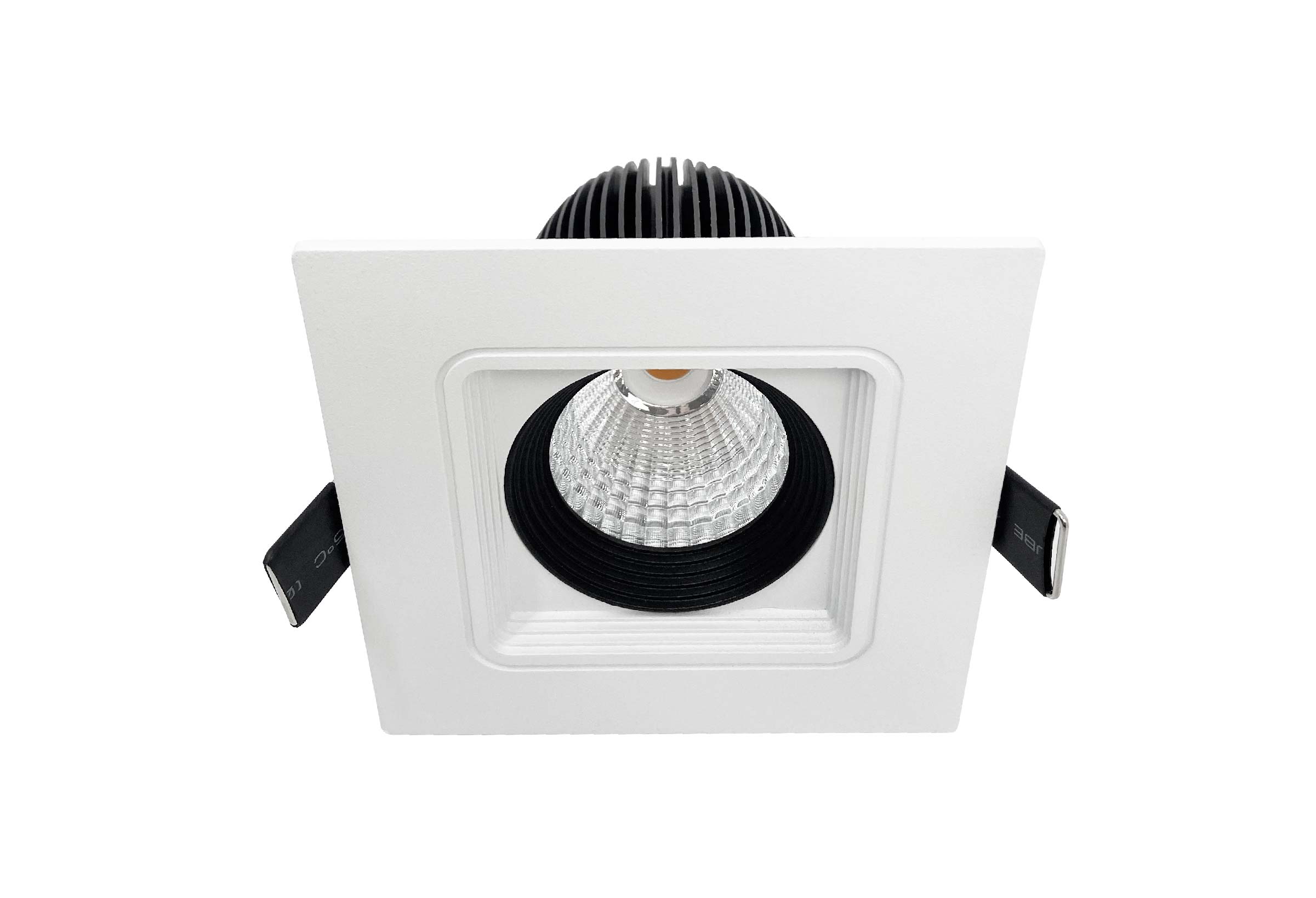

The new generation Faze Pro Square downlight is designed to enhance. Utilising superior LED technology and with high CRI, these recessed ceiling lights are guaranteed to bring your spaces to life.

+    Precision reflector with clear lens - for better light distribution and performance.
+    Specially designed heat sink - for class leading heat dissipation.
+    IC-4 rated
+    Black baffle design - eliminates glare for optimum visual comfort.
+    IP44 and suitable for wet areas.
+    Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU) & with Casambi BasicDim Driver 13W (71-CAS350)

Product Codes:

White, 3000K, 15°  118-PR7LS13W153
White, 3000K, 24°  118-PR7LS13W243
White, 3000K, 36°  118-PR7LS13W363
White, 3000K, 60°  118-PR7LS13W603
White, 4000K, 15°  118-PR7LS13W154
White, 4000K, 24°  118-PR7LS13W244
White, 4000K, 36°  118-PR7LS13W364
White, 4000K, 60°  118-PR7LS13W604

Black, 3000K, 15° 118-PR7LS13B153
Black, 3000K, 24° 118-PR7LS13B243
Black, 3000K, 36° 118-PR7LS13B363
Black, 3000K, 60° 118-PR7LS13B603
Black, 4000K, 15° 118-PR7LS13B154
Black, 4000K, 24° 118-PR7LS13B244
Black, 4000K, 36° 118-PR7LS13B364
Black, 4000K, 60° 118-PR7LS13B604



Specifications

Designer: Faze
Category: Downlights
Material: Powder-coat Aluminium
IP Rating: 44
Light Source: LED 13W
Lumen Output: 970 lm (3000K) | 1080 (4000K)
Finishes: Black/White
Mounting Type: Ceiling

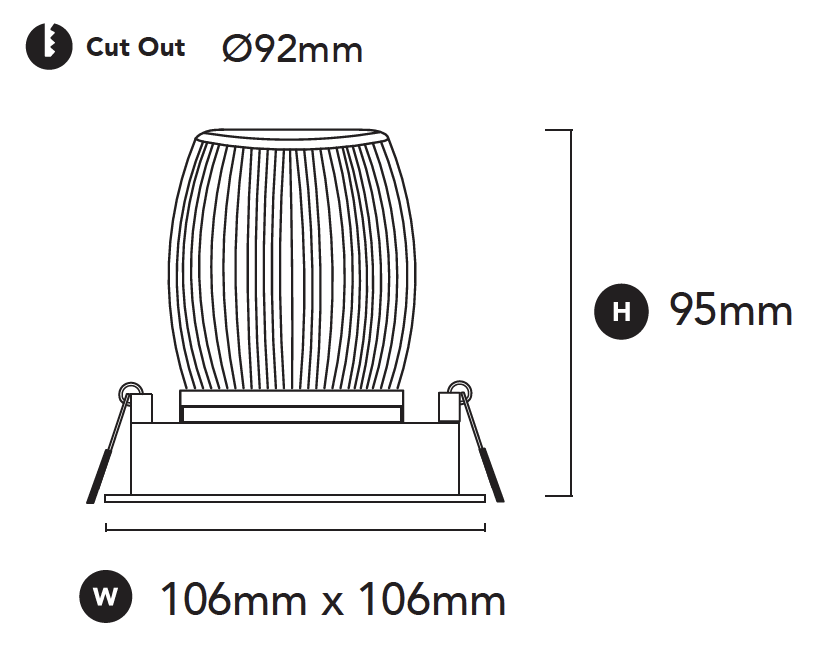

Dimensions: (L) 106 x (W) 106 x (H) 95 mm, cut-out Ø 92 mm
Line Drawing: View

Downloads

line drawing
