Pro Square Mini

Faze

Pro Square Mini

Enquire Now

Share this product

Product Information

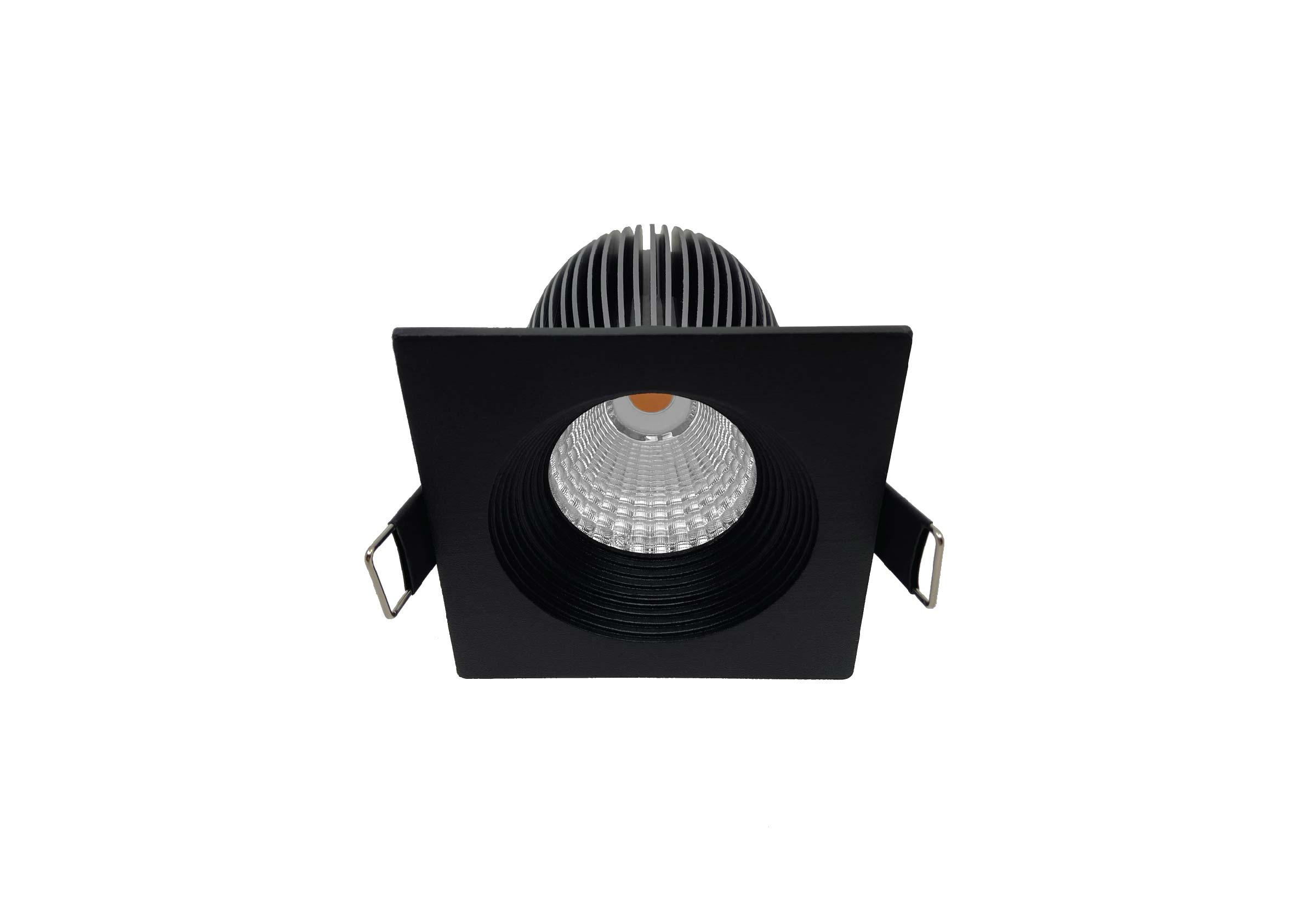

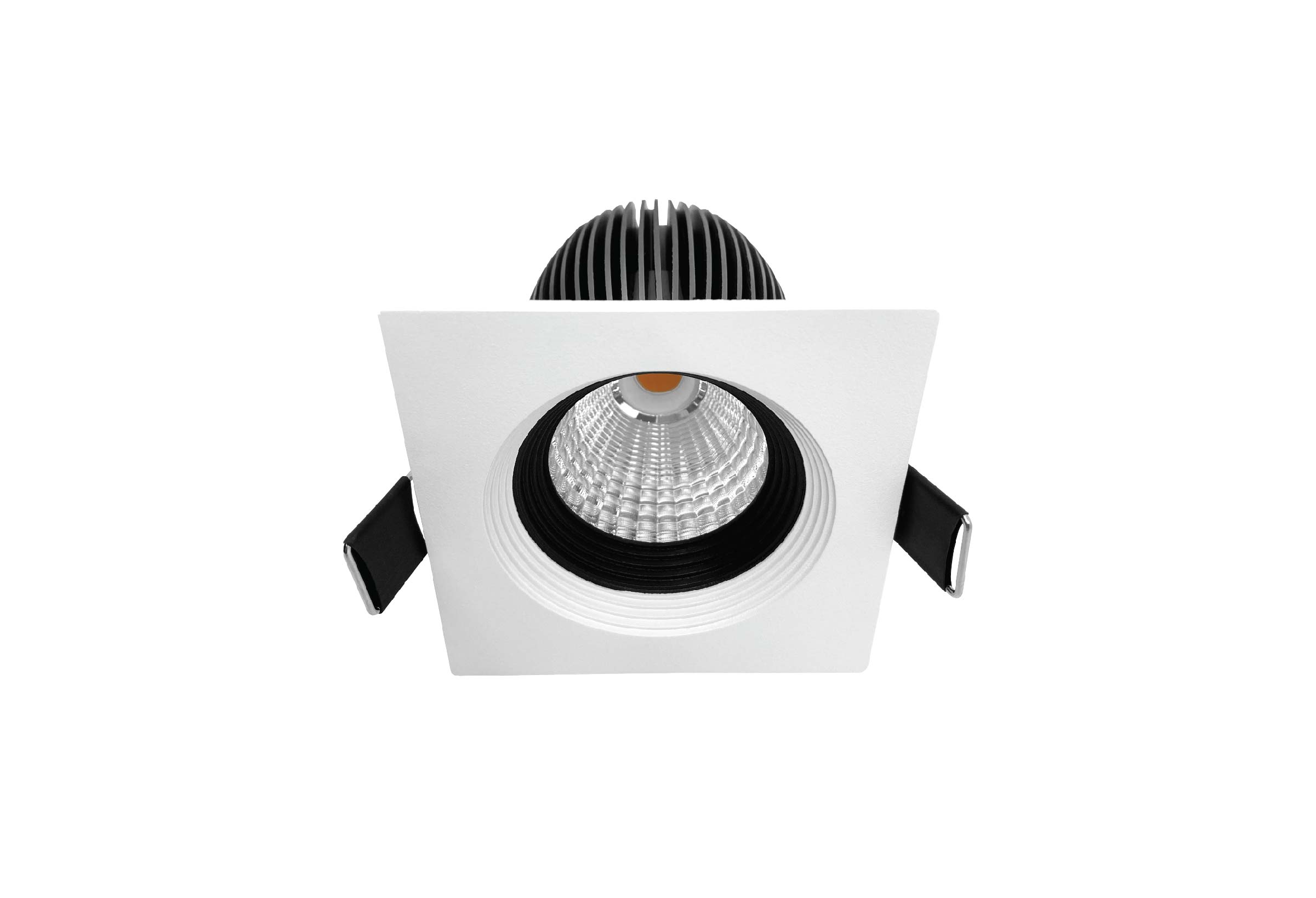

The new generation Faze Pro Mini Square downlight is specifically designed to enhance. Utilising superior light engine technology and with high CRI, these recessed ceiling lights are guaranteed to bring your spaces to life.

+    Precision reflector with clear lens - for better light distribution.

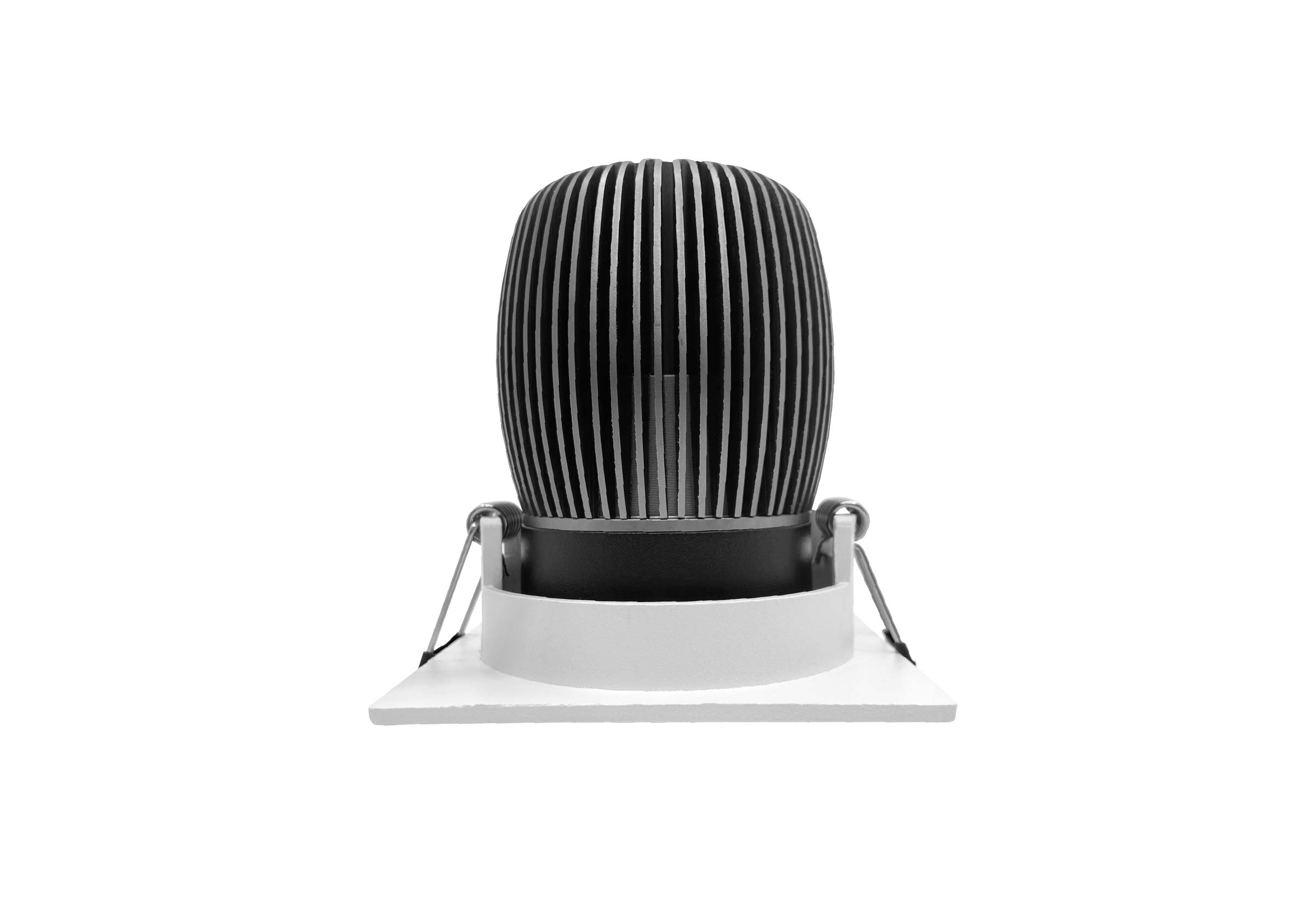

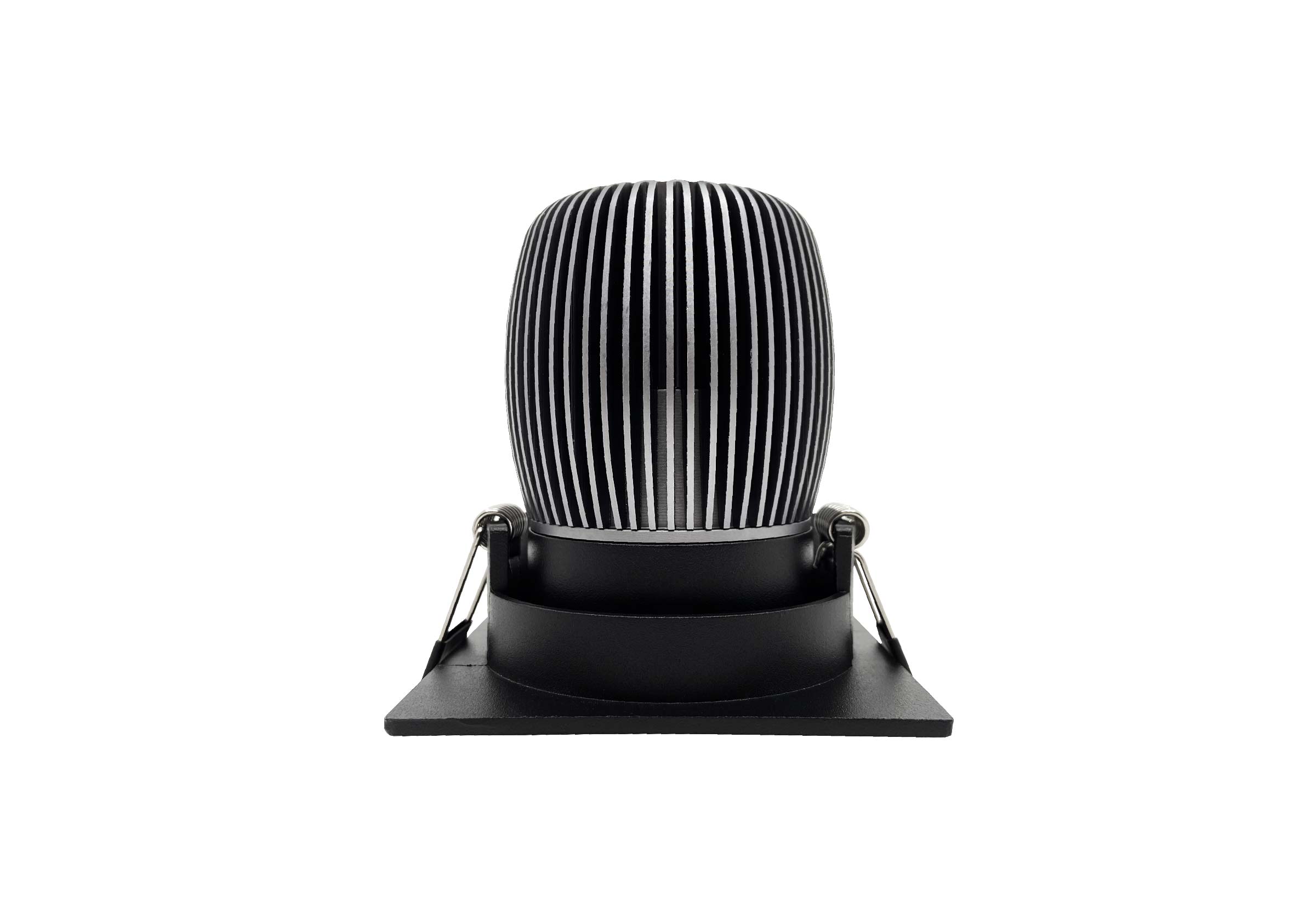

+    Specially designed heat sink - for class leading heat dissipation.
+    IC-4 rated
+    Black baffle design - eliminates glare for optimum visual comfort.
+    Flicker Free Driver
+    IP44 and suitable for wet areas.
+    Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU) & with Casambi BasicDim Driver 11W (71-CAS300)
+    DALI dimming available upon request

Product Codes:

White, 3000K, 60°  118-PR7MS11W603
White, 4000K, 60°  118-PR7MS11W604
Black, 3000K, 60°  118-PR7MS11B603
Black, 4000K, 60°  118-PR7MS11B604

15° Reflector 118-RFLP15
24° Reflector 118-RFLP24
36° Reflector 118-RFLP36

Specifications

Designer: Faze
Category: Downlights
Material: Powder Coated Aluminium
IP Rating: 44
Light Source: LED 11W
Lumen Output: 880 lm (3000K) | 960 lm (4000K)
Finishes: Black/White
Mounting Type: Ceiling

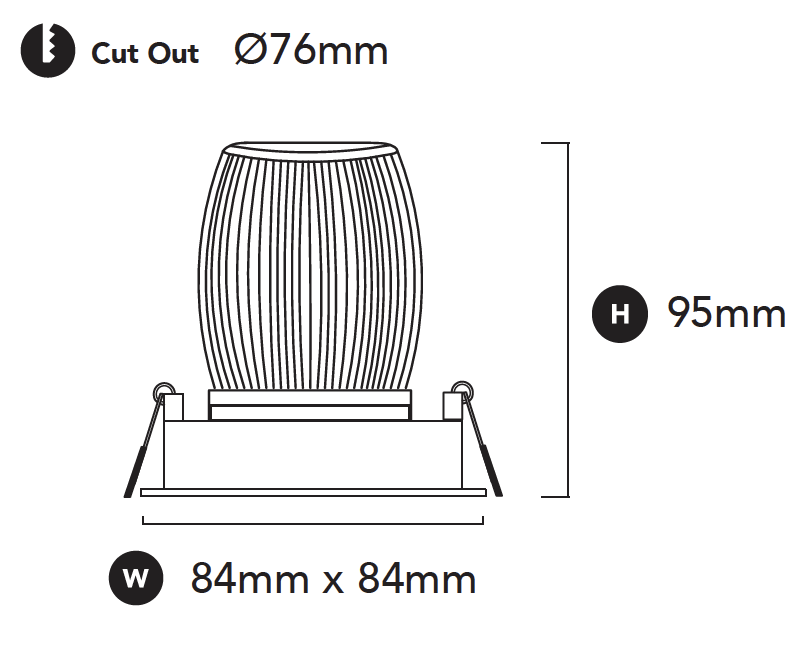

Dimensions: (L) 84 x (W) 84 x (H) 95 mm, cut-out Ø 76 mm
Line Drawing: View

Downloads

line drawing
