Edge Wall Washer

Faze

Edge Wall Washer

Enquire Now

Share this product

Product Information

Perfectly balanced - our latest Edge downlight features an angled aluminium body to achieve an asymmetrical beam, ideal for wall washing.

+    Adjustable head up to 25°
+    Precision reflector with clear lens - for better light distribution
+    Specially designed heat sink, for class leading heat dissipation
+    Deep set lamp position, for visual comfort and glare control
+    Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU) & with Casambi BasicDim Driver 13W (71-CAS350)

Product Codes:

White, 3000K, 60°  118-ED2A13W603
White, 4000K, 60°  118-ED2A13W604
Black, 3000K, 60° 118-ED2A13B603
Black, 4000K, 60° 118-ED2A13B604

15° Reflector 118-RFLP15
24° Reflector 118-RFLP24
36° Reflector 118-RFLP36

Specifications

Category: Downlights
Material: Powder Coated Aluminium
IP Rating: 44
Light Source: 13W (operating wattage 14.8W)
Lumen Output: 1150 lm (3000K) | 1210 lm (4000K)
Finishes: Black/White
Mounting Type: Ceiling

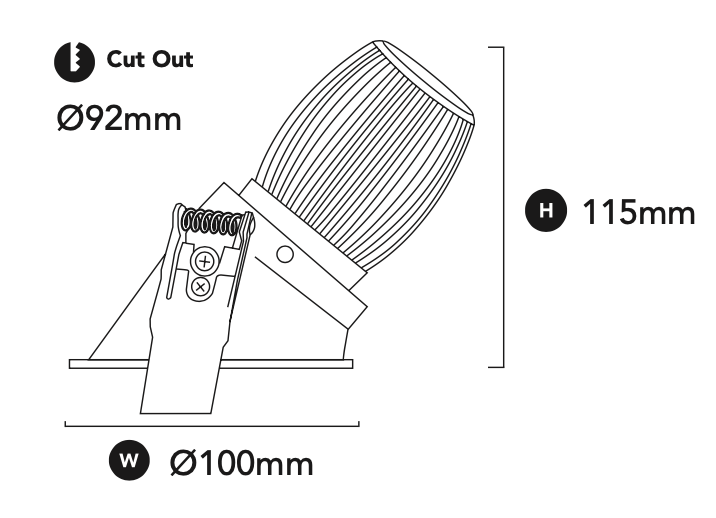

Dimensions: Ø 100 x 115 (H) mm (cut-out Ø 92 mm)
Line Drawing: View

Downloads

line drawing
