Designed in Australia, our Edge Series luminaire are built to perform efficiently and effectively even in the Australian heat. Incorporating a minimal trim design, with advanced LED engines to achieve intense illumination with a high lumen per watt efficacy. Our Generation 3 Series of downlights are unmatched, featuring higher quality lighting, more effective heat dissipation, and stronger LEDs.
• Adjustable head up to 25°.
• Precision reflectors or lenses – for unmatched visual comfort and performance.
• Specially designed heat sink – Providing class leading heat dissipation.
• Deep set LED – providing significant glare reduction with a <14 UGR.
| PRODUCT CODES: | FINISH: | COLOUR TEMPERATURE: |
| 118-ED3M11W603 | White | 3000K |
| 118-ED3M11W604 | White | 4000K |
| 118-ED3M11B603 | Black | 3000K |
| 118-ED3M11B604 | Black | 4000K |
| ACCESSORY CODES: | ACCESSORY: |
| 118-RFLE336 | 36° Reflector |
| 118-RFLE324 | 24° Reflector |
| 118-RFLE315 | 15° Reflector |
| 118-LSE360 | 60° Lens |
| 118-LSE336 | 36° Lens |
| 118-LSE324 | 24° Lens |
| 118-LSE315 | 15° Lens |
| PLEASE NOTE |
| Fittings come standard with 60° reflector. |
Category:
Material:
Powder Coated Aluminium
IP Rating:
IP44
Light Source:
LED 11W
Lumen Output:
1175lm | 1275lm (3000K | 4000K)
Sizes:
Mounting Type:
Dimensions:
H 105mm x W Ø86mm
Cut Out Ø76mm

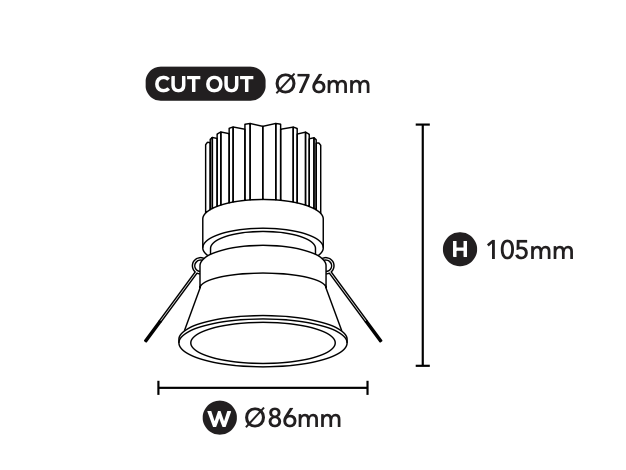

Line Drawing:
