Edge 110


Edge 110

Enquire Now

Share this product

Product Information

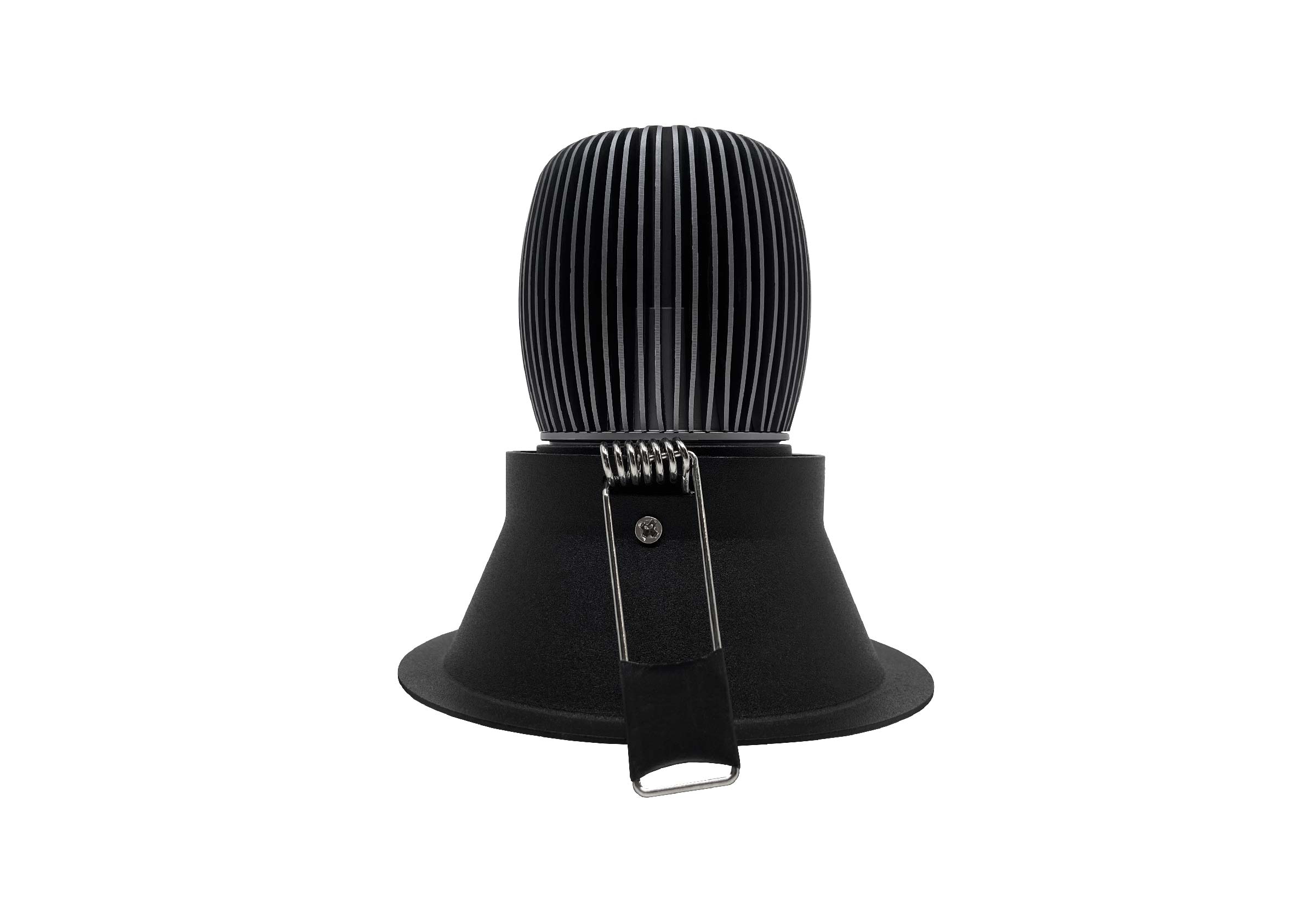

The Faze EDGE 110 downlight - with a concave design and utilizing advanced LED engines, achieves intense illumination with a high lumen per watt efficacy.

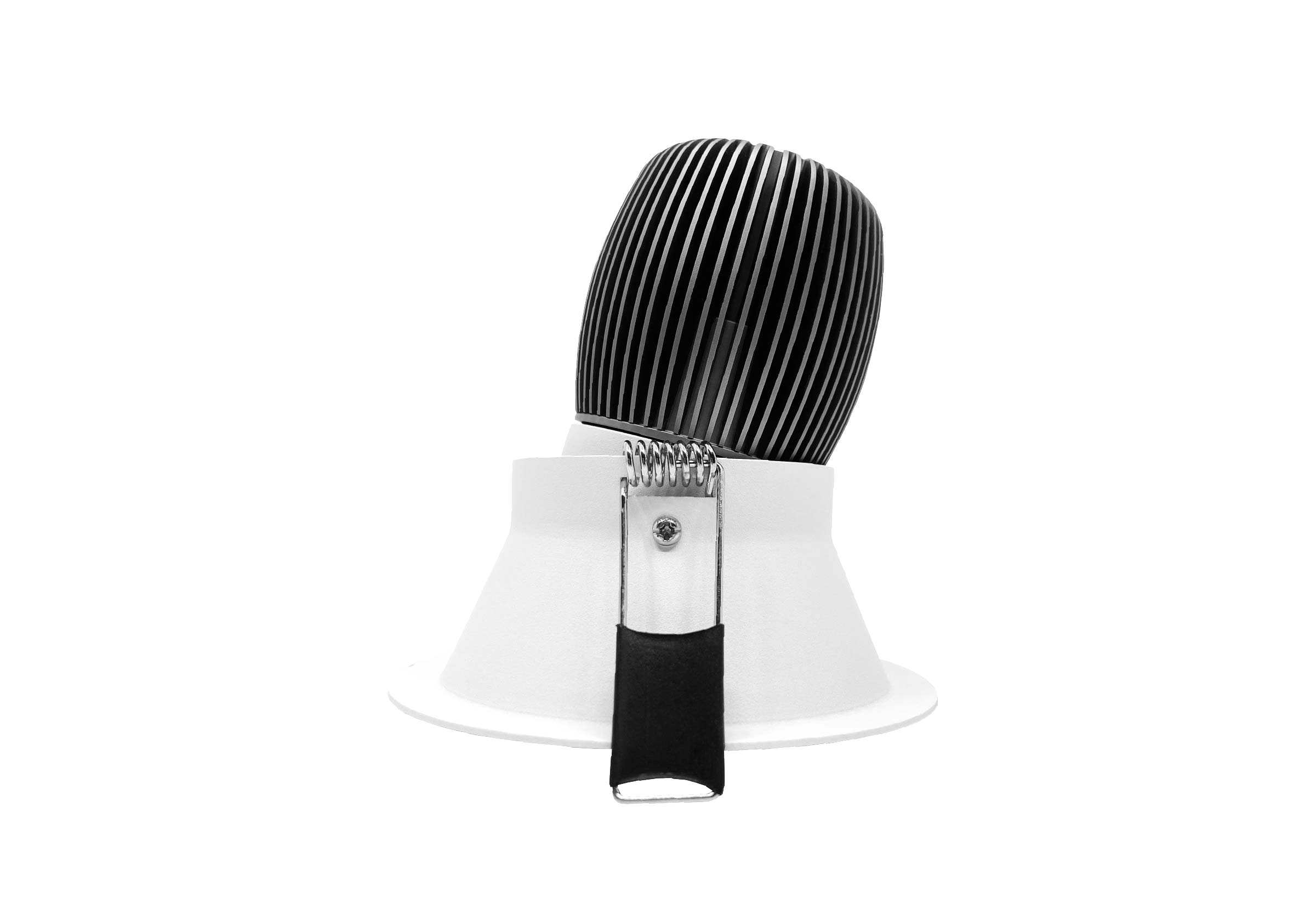

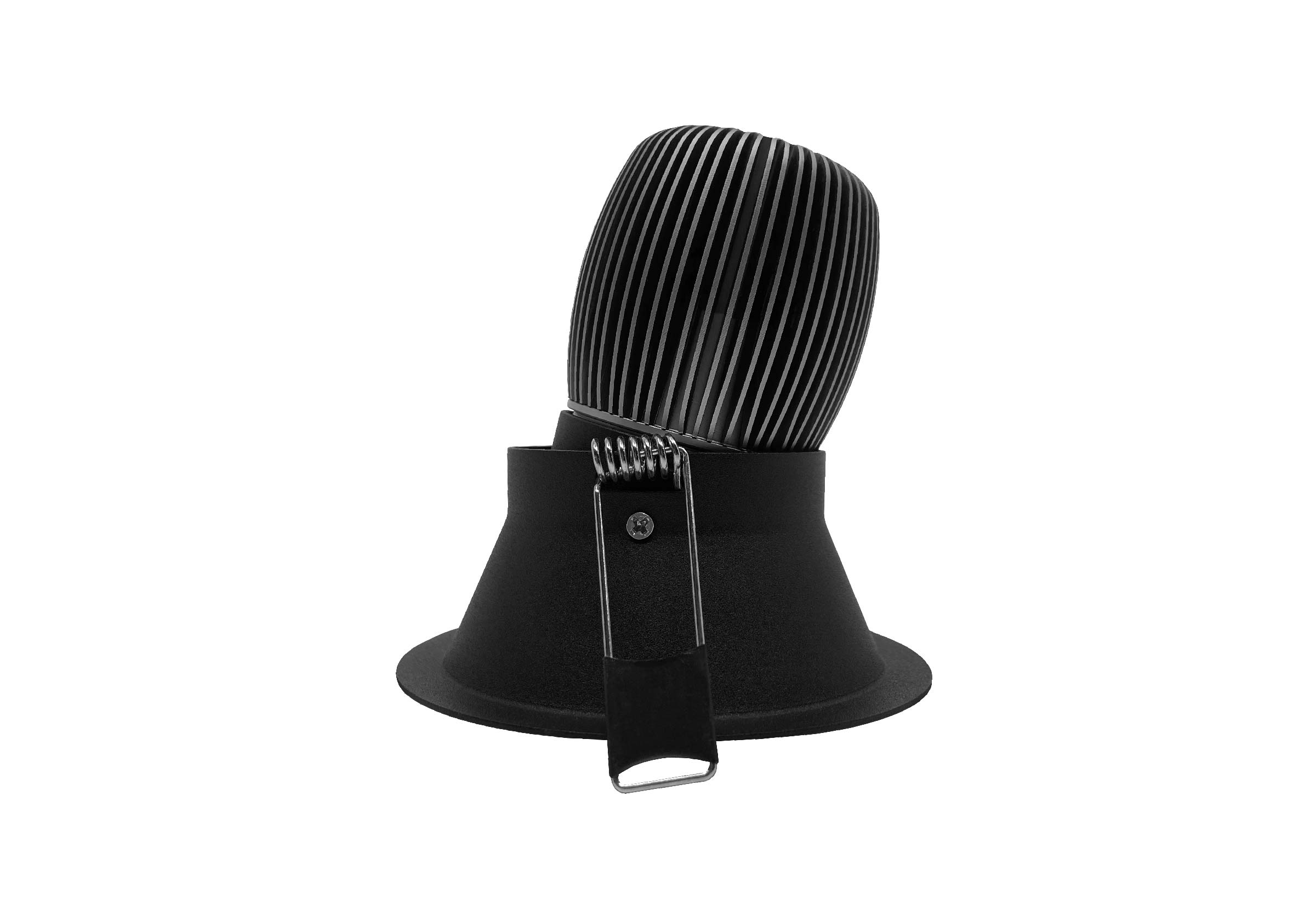

+    Adjustable head up to 25°
+    Precision reflector with clear lens - for better light distribution and performance.

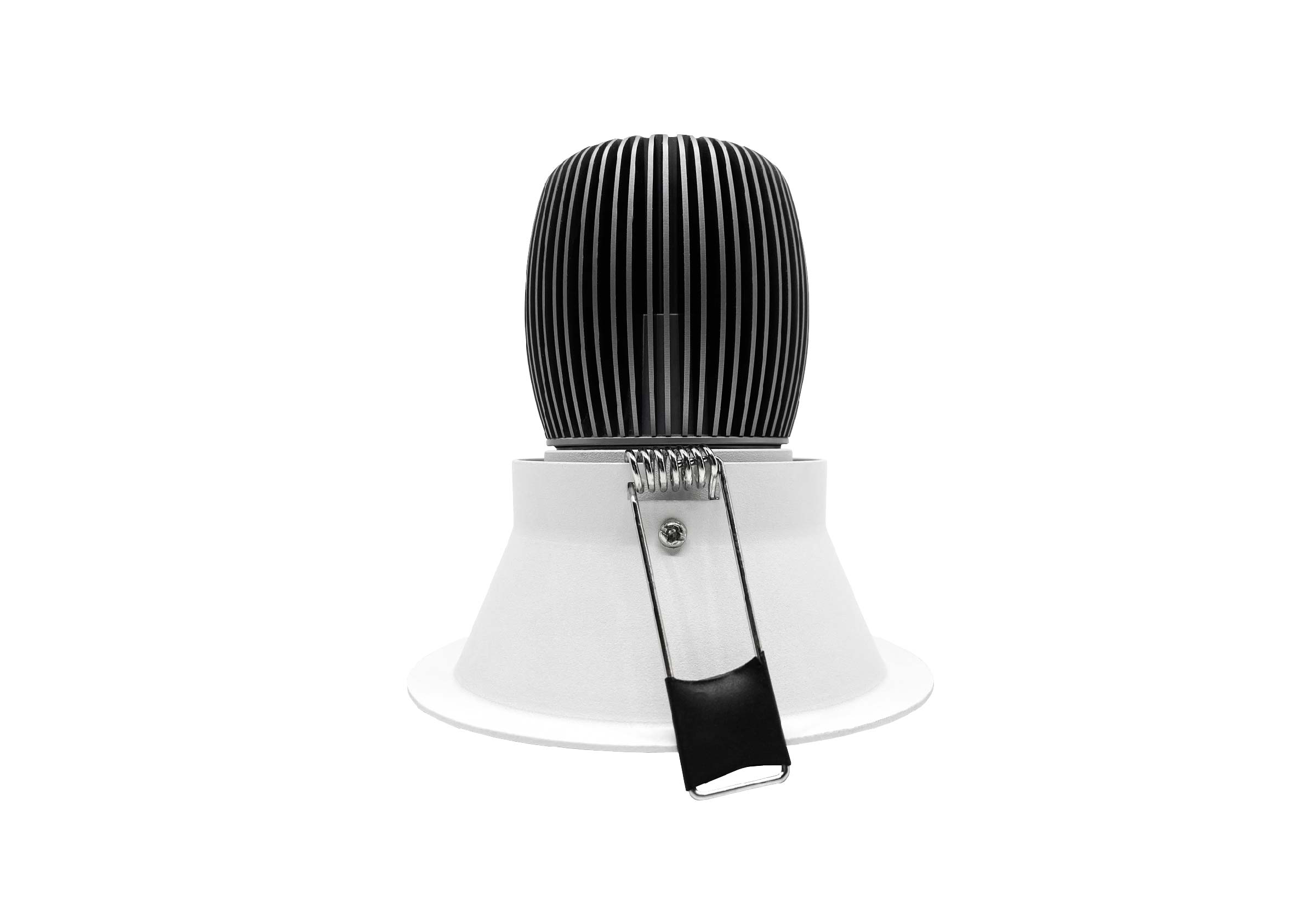

+    Specially designed heat sink - for class leading heat dissipation.
+    Deep set lamp position - for visual comfort and glare control.
+    Suitable for concrete install with concrete canister. (ordered separately)
+    Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU) & with Casambi BasicDim Driver 13W (71-CAS350)

Product Codes:

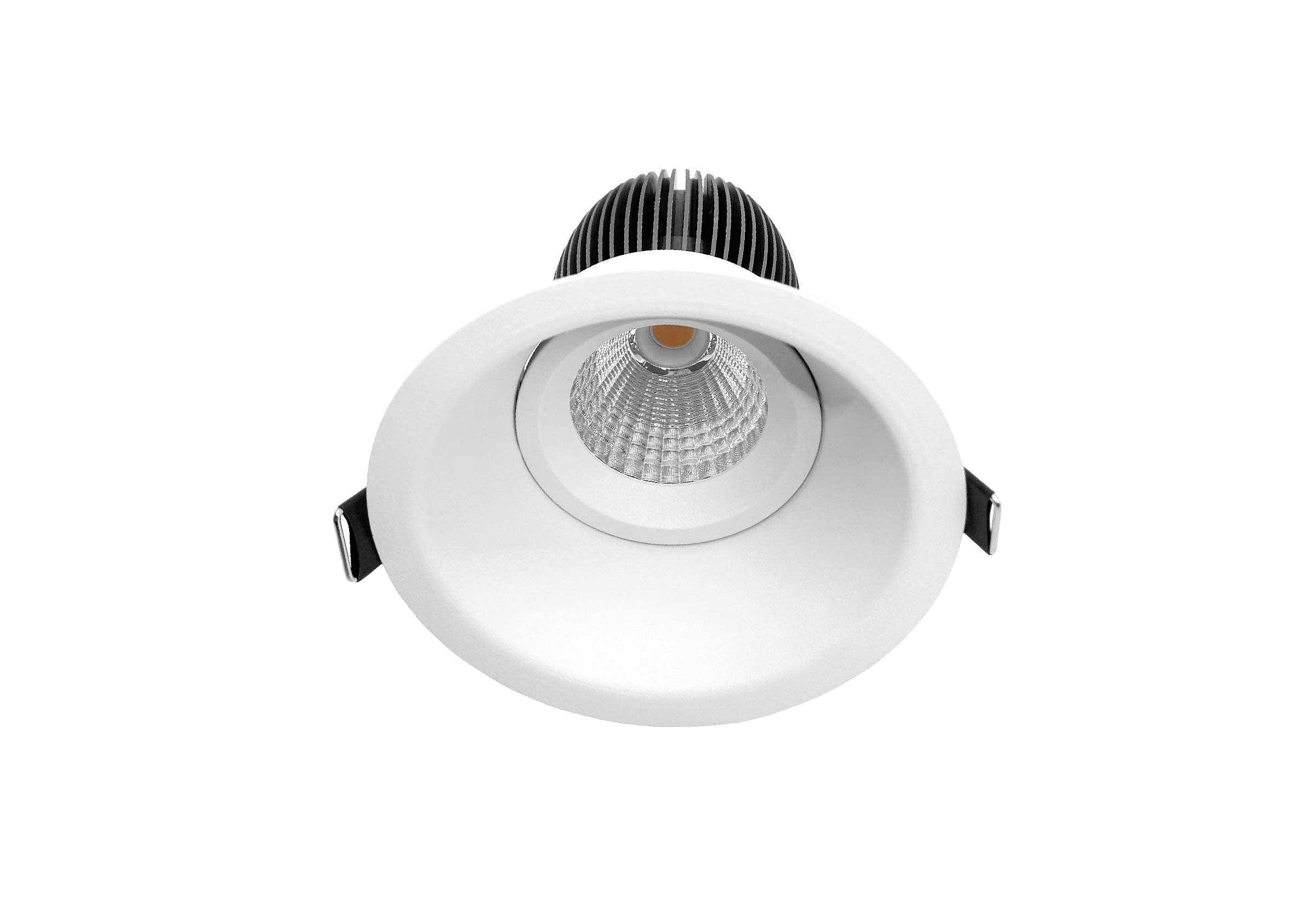

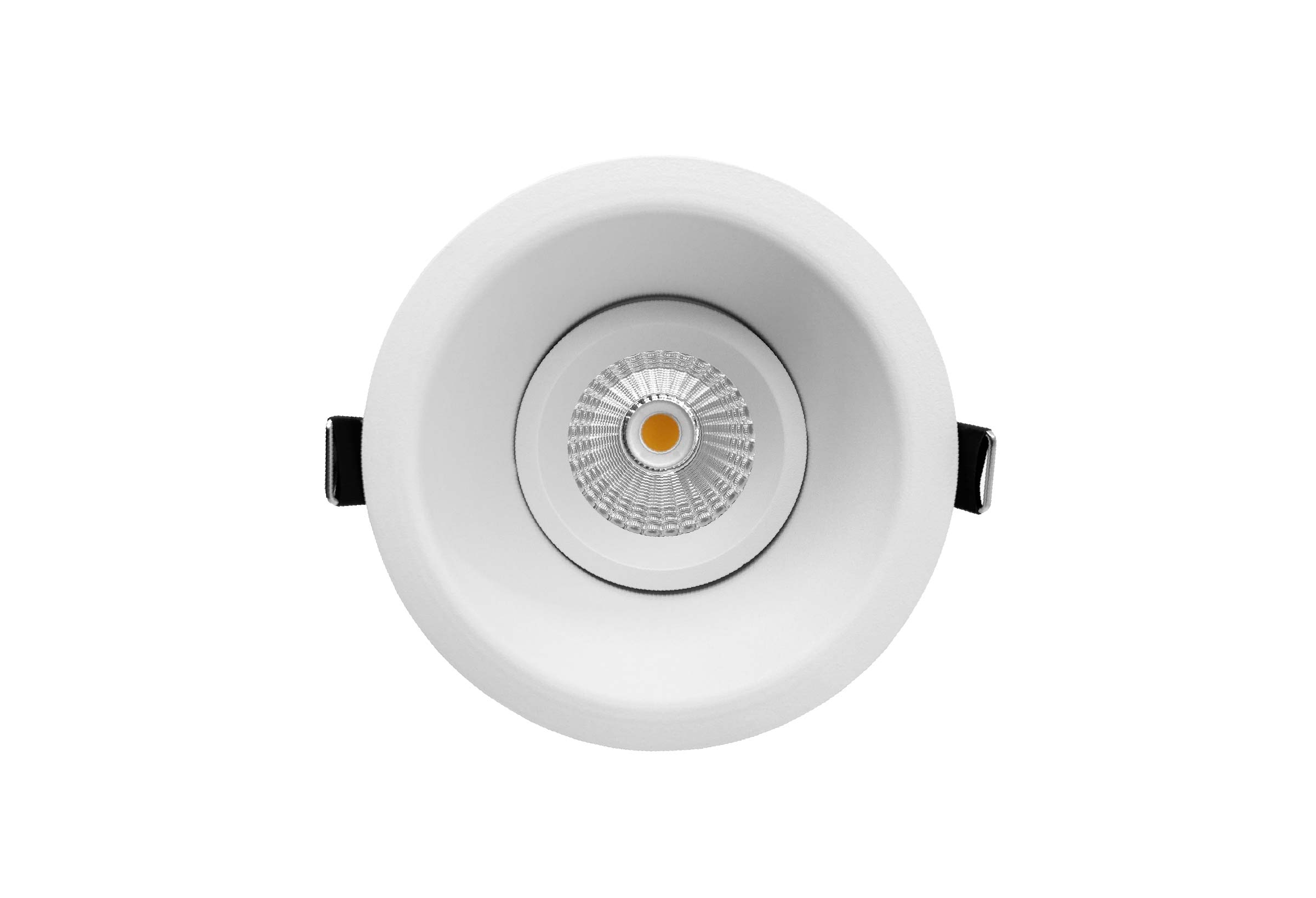

White, 3000K, 60°  118-ED2W13W603
White, 4000K, 60°  118-ED2W13W604

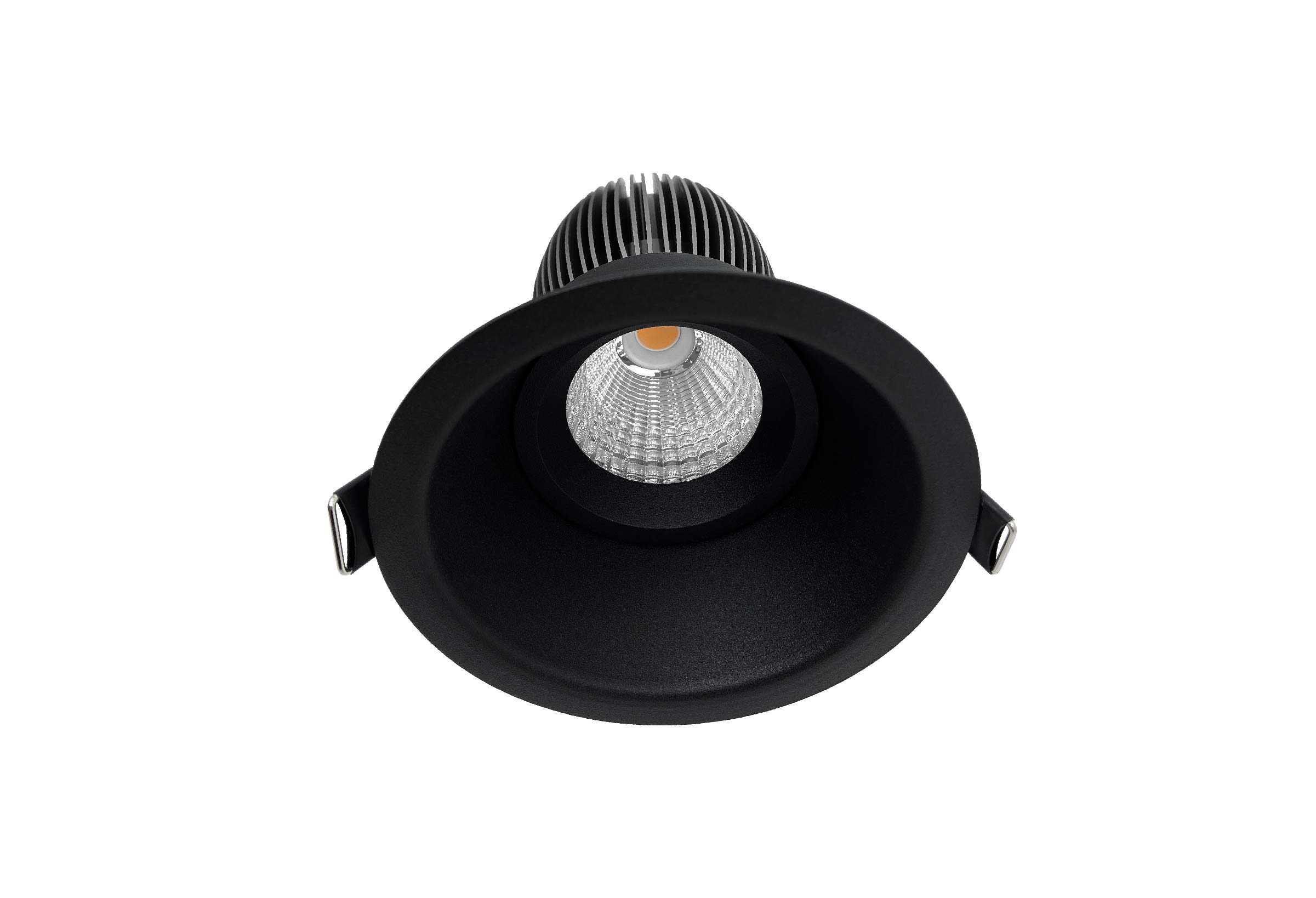

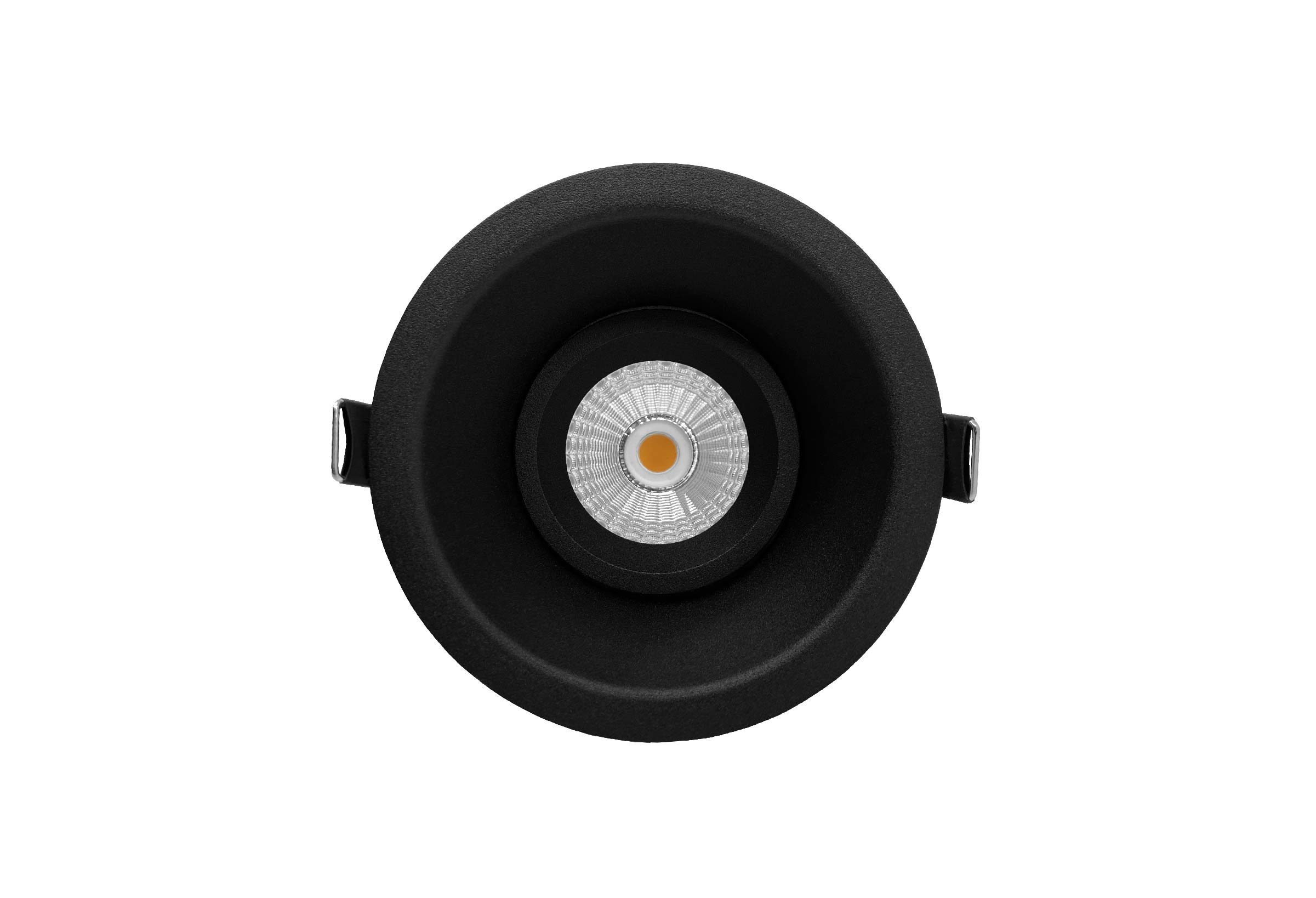

Black, 3000K, 60° 118-ED2W13B603
Black, 4000K, 60° 118-ED2W13B604
15° Reflector 118-RFLP15
24° Reflector 118-RFLP24
36° Reflector 118-RFLP36


Designer: Faze
Category: Downlights
Material: Powdercoat Aluminium
IP Rating: 44
Light Source: LED 13W
Lumen Output: 1170 lm (3000K) | 1320 lm (4000K)
Finishes: Black/White
Mounting Type: Ceiling/Recessed
Dimensions: Ø 110 x H 115 mm | cut-out Ø 92 mm

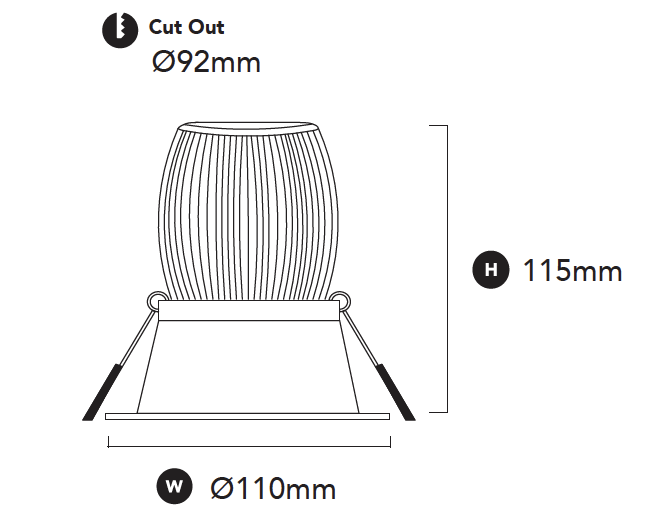

Line Drawing: View


line drawing
