Edge 100

Faze

Edge 100

Enquire Now

Share this product

Product Information

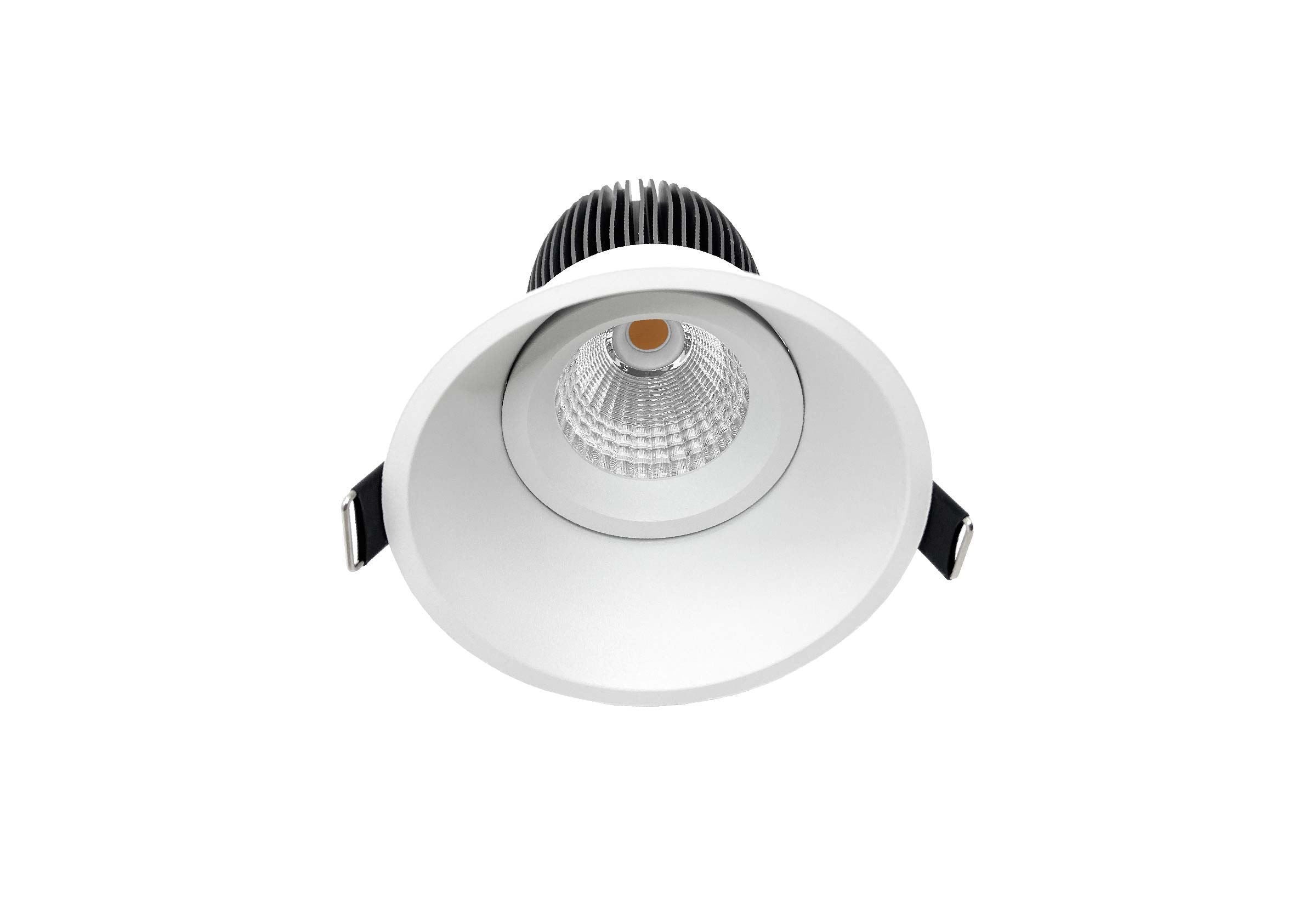

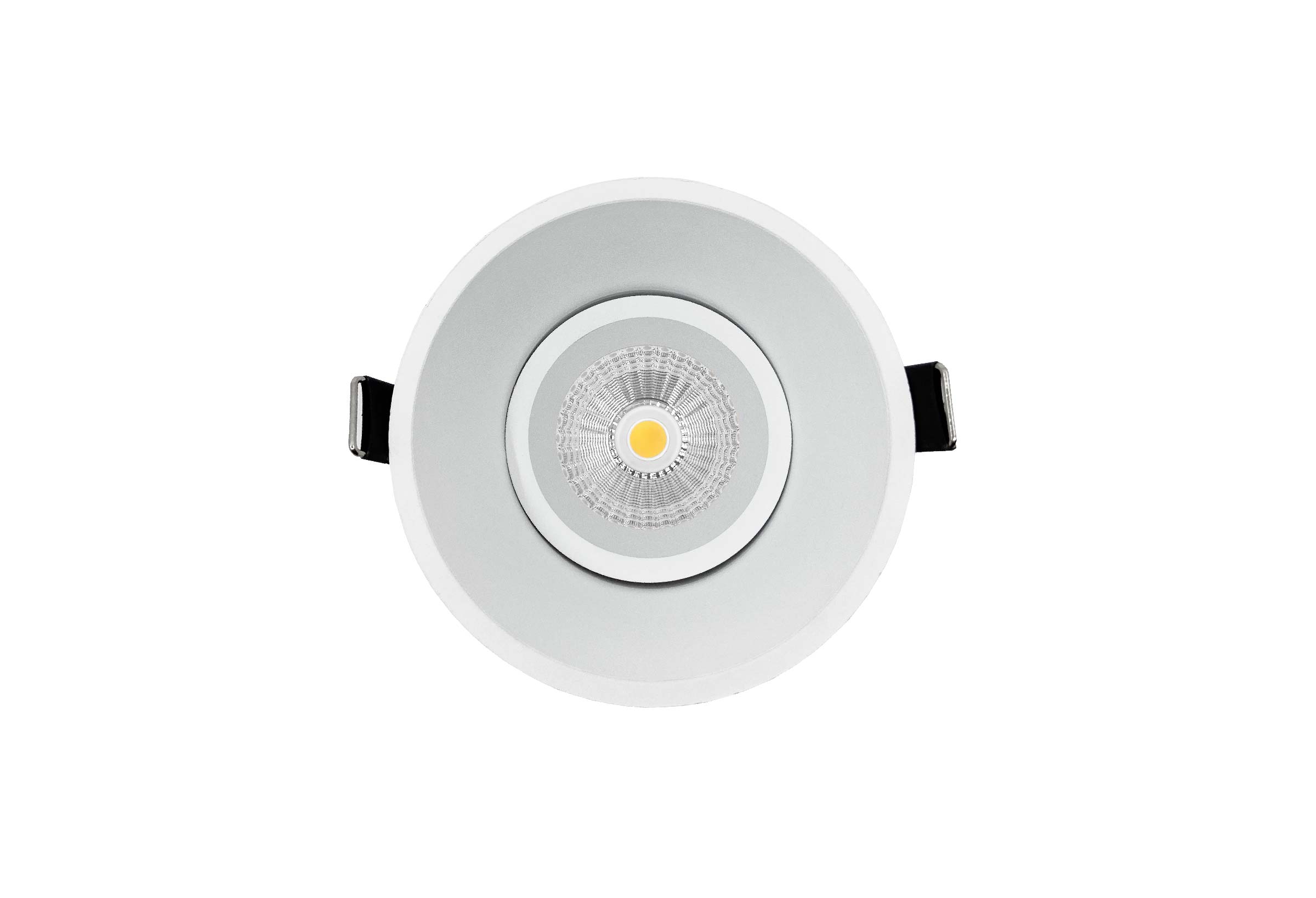

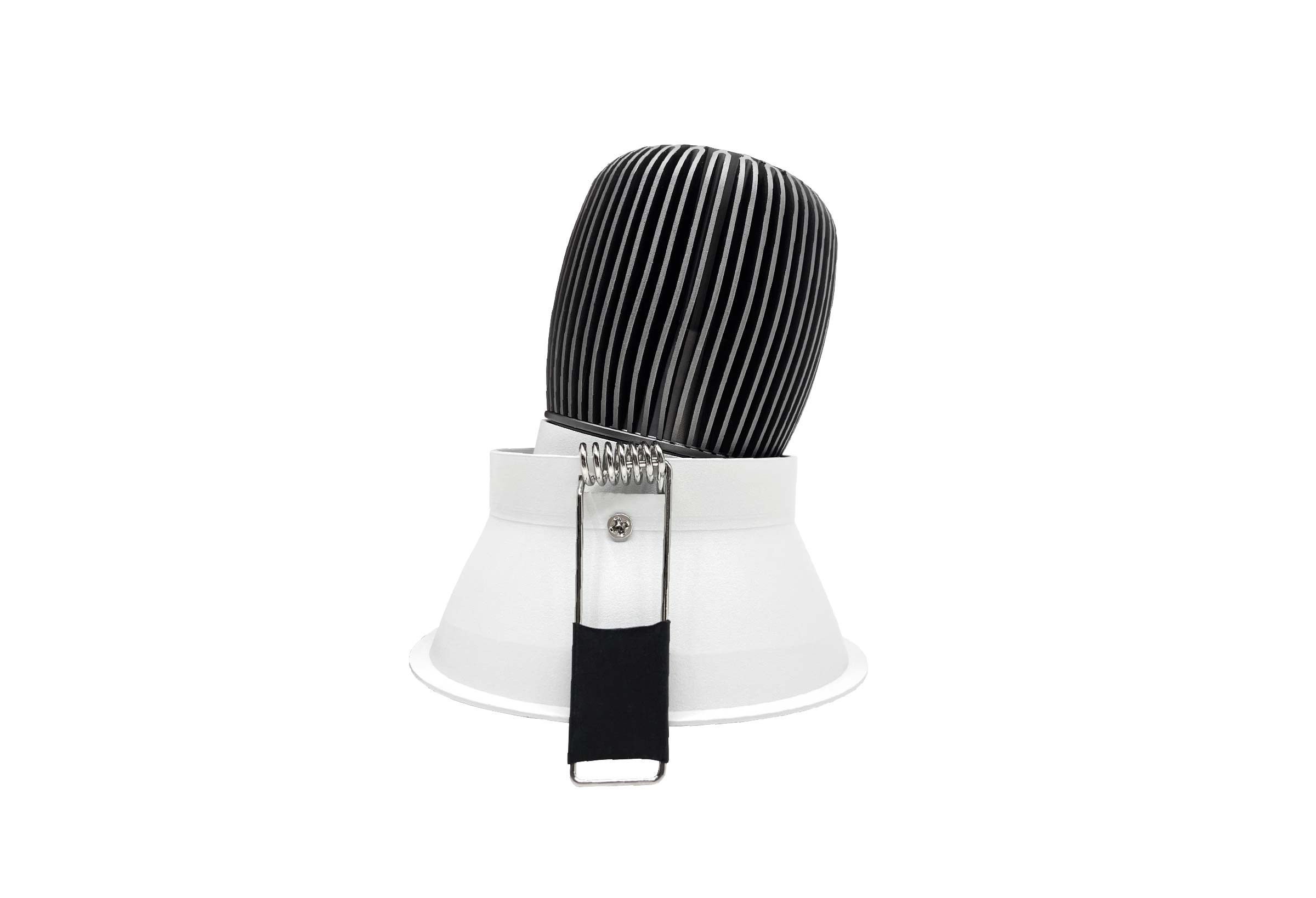

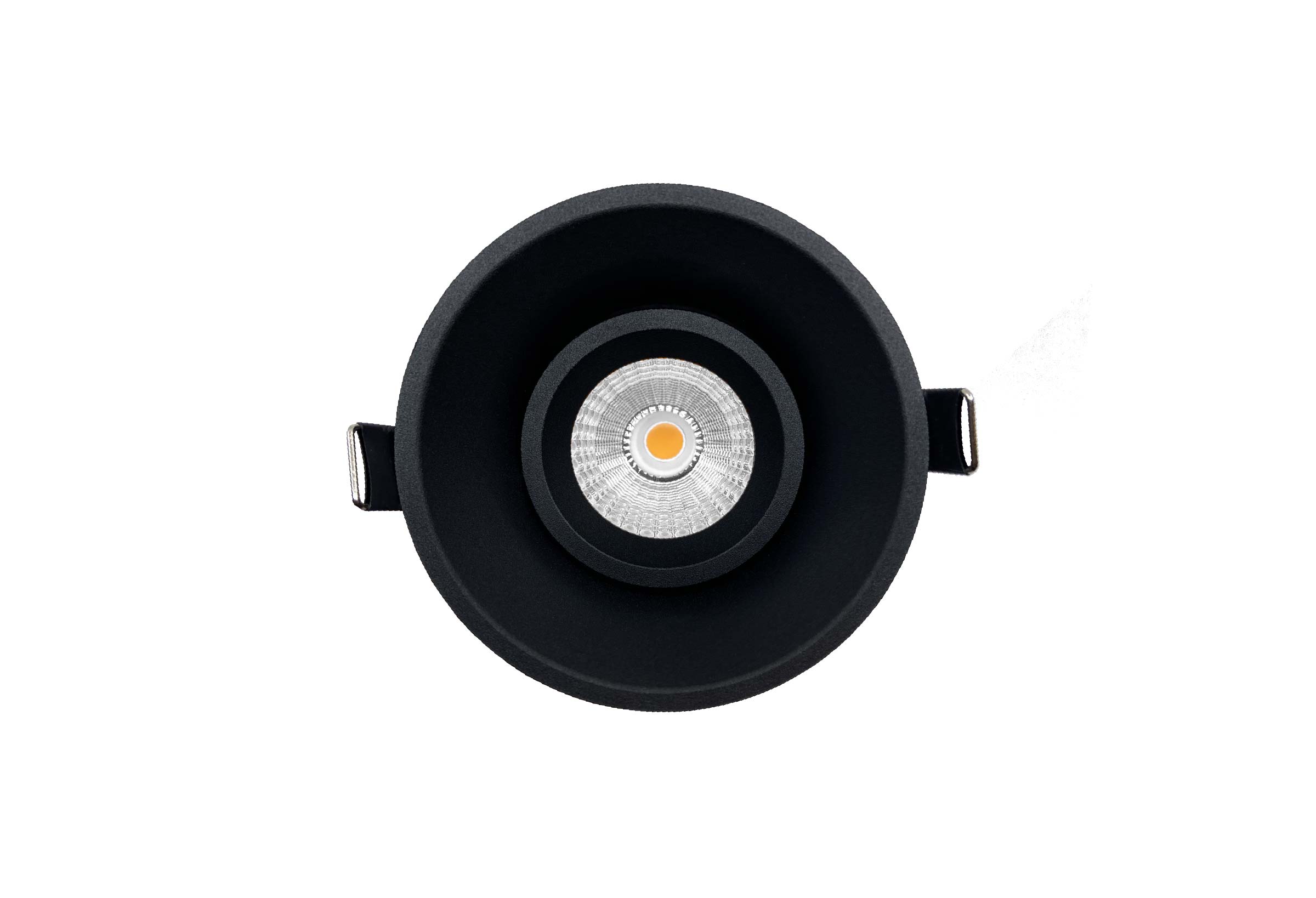

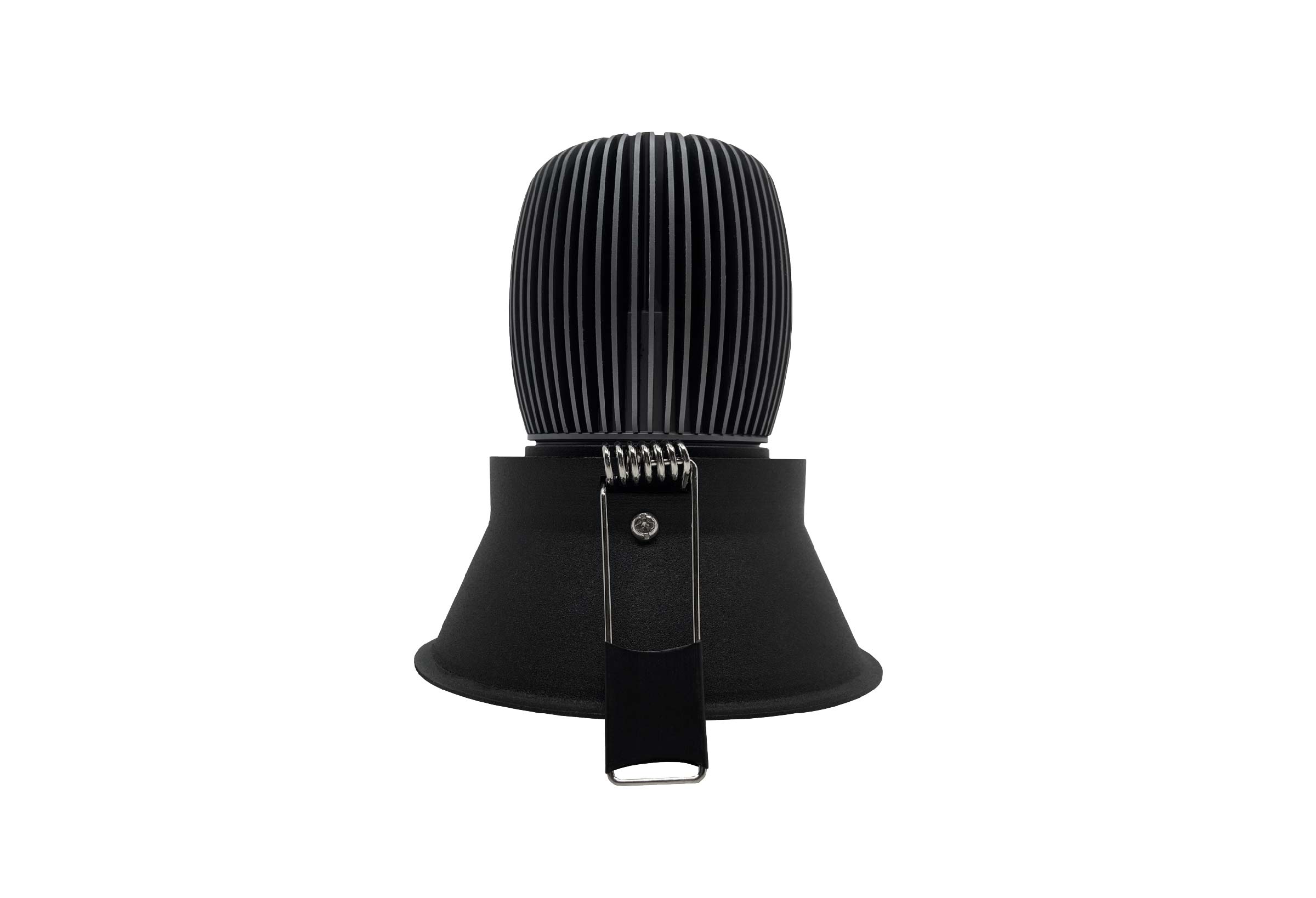

The Faze EDGE 100 downlight - with a trimless, concave design and utilizing advanced LED engines, achieves intense illumination with a high lumen per watt efficacy.

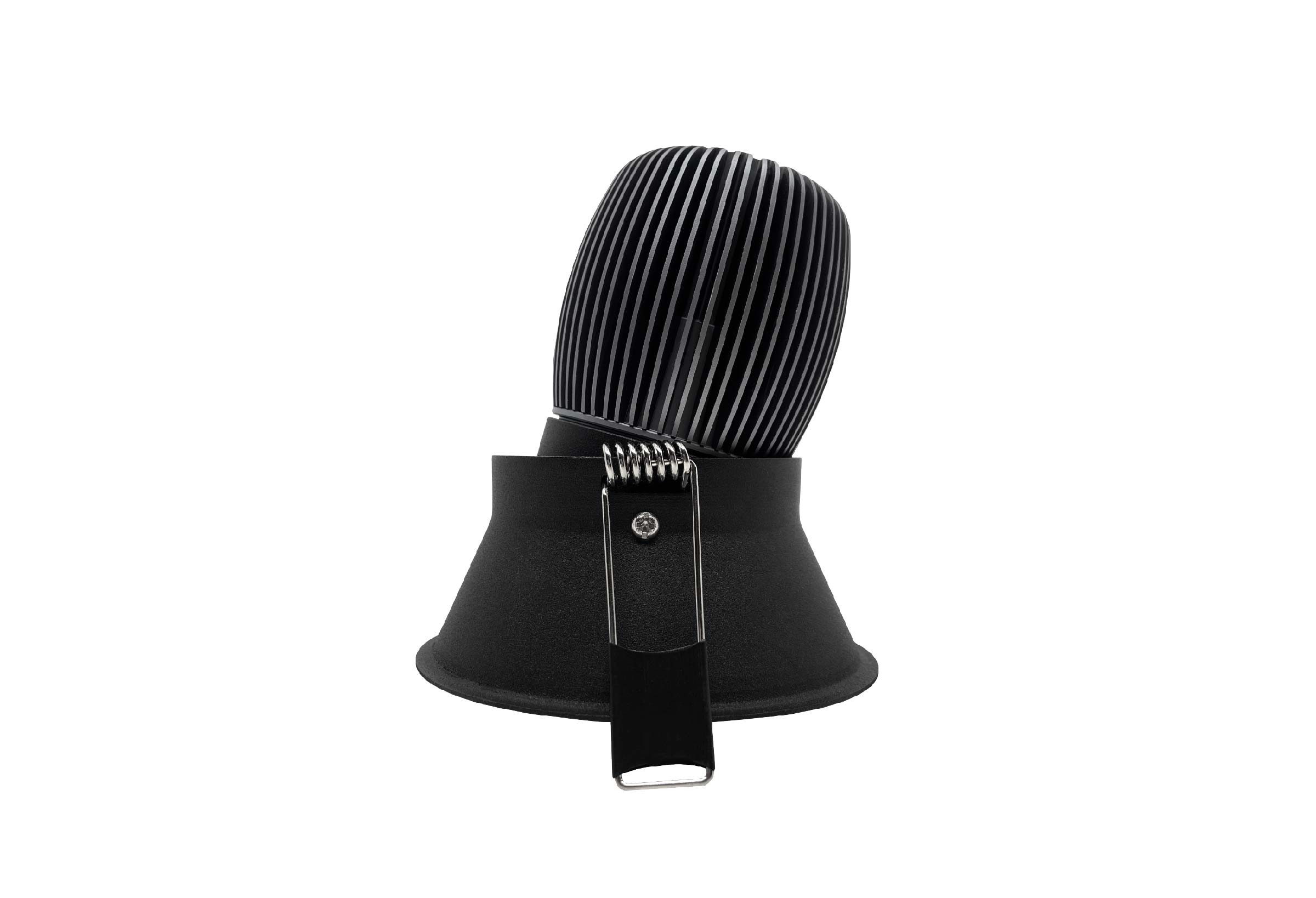

+    Adjustable head up to 25°
+    Precision reflector with clear lens - for better light distribution and performance.

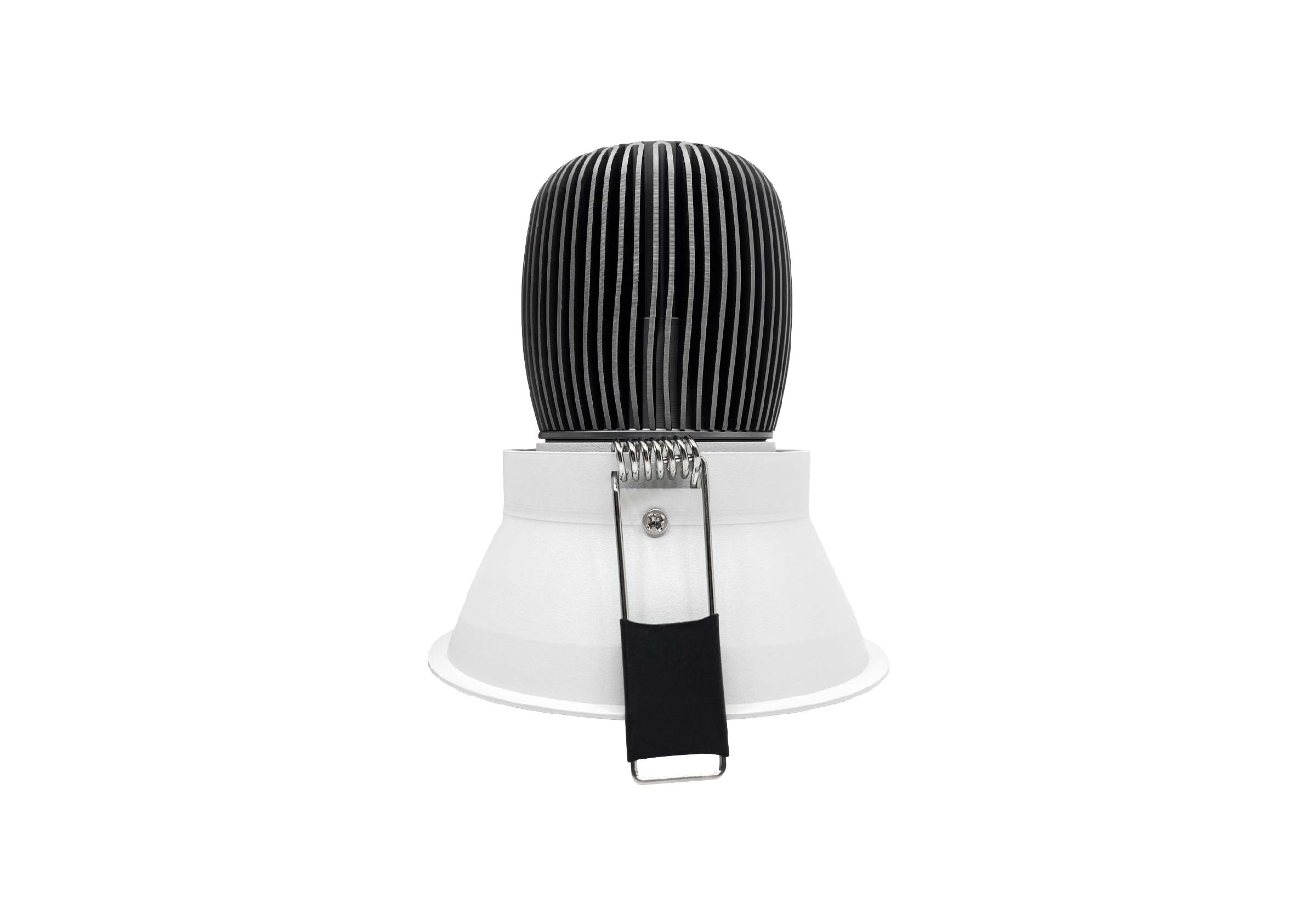

+    Specially designed heat sink - for class leading heat dissipation.
+    Deep set lamp position - for visual comfort and glare control.
+    Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU) & with Casambi BasicDim Driver 13W (71-CAS350)

Product Codes:


White, 3000K, 60° 118-ED2L13W603
White, 4000K, 60° 118-ED2L13W604

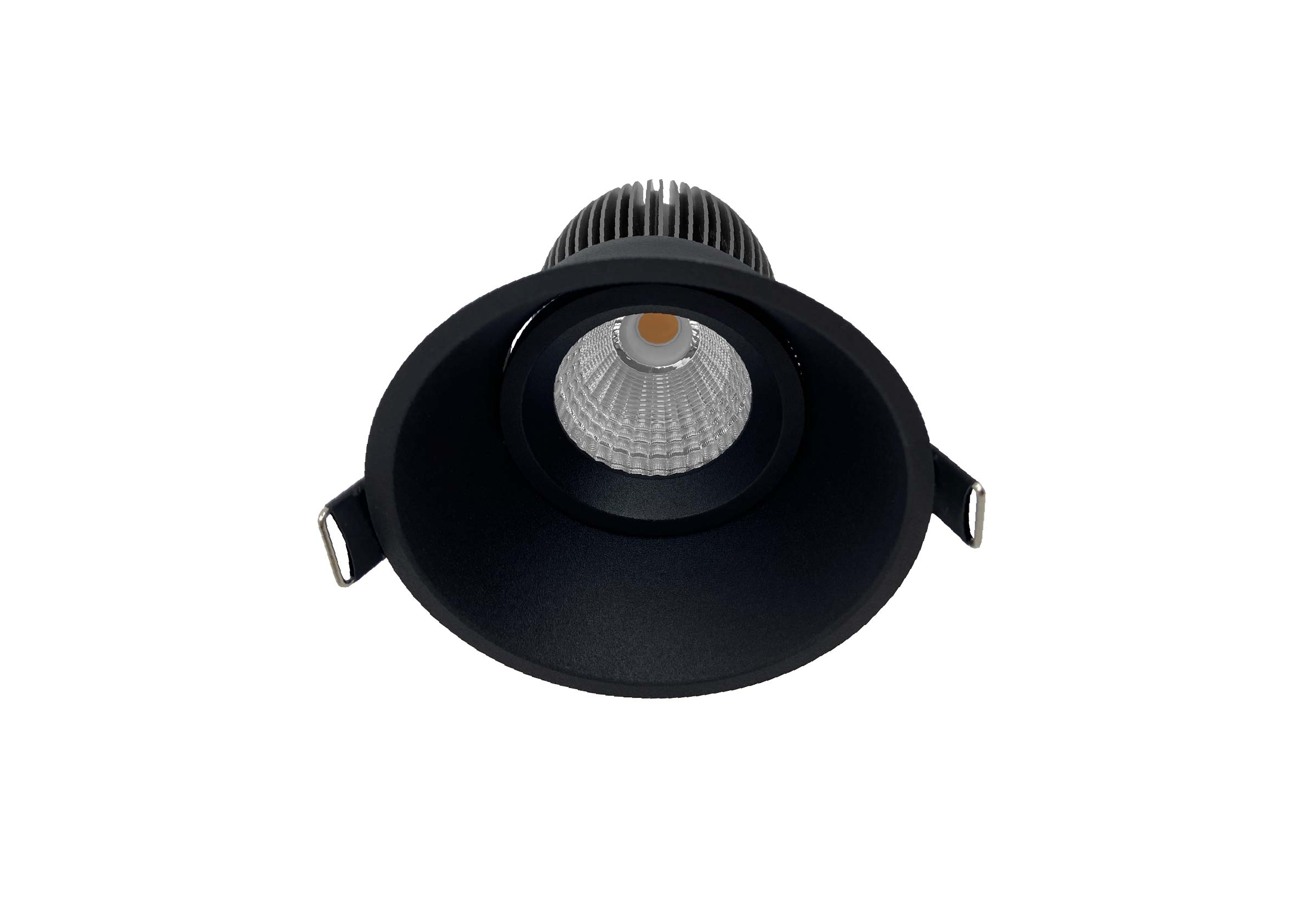

Black, 3000K, 60° 118-ED2L13B603
Black, 4000K, 60° 118-ED2L13B604

15° Reflector 118-RFLP15
24° Reflector 118-RFLP24
36° Reflector 118-RFLP36

Specifications

Designer: Faze
Category: Downlights
Material: Powdercoat Aluminium
IP Rating: 44
Light Source: LED 13W
Lumen Output: 1170 lm (3000K) | 1320 lm (4000K)
Finishes: Black/White
Mounting Type: Ceiling/Recessed

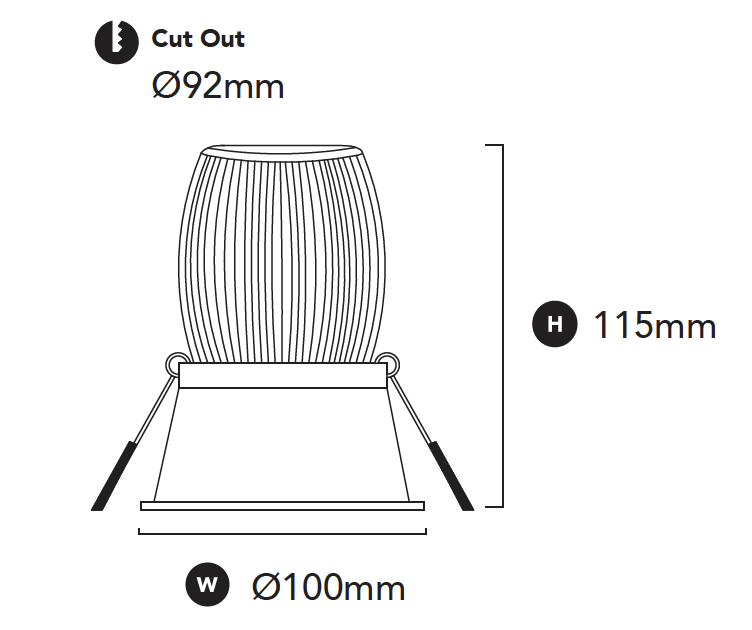

Dimensions: Ø 100 x H 115 mm | cut-out Ø 92 mm
Line Drawing: View

Downloads

line drawing
