Disc

Faze

Disc

Enquire Now

Share this product

Product Information

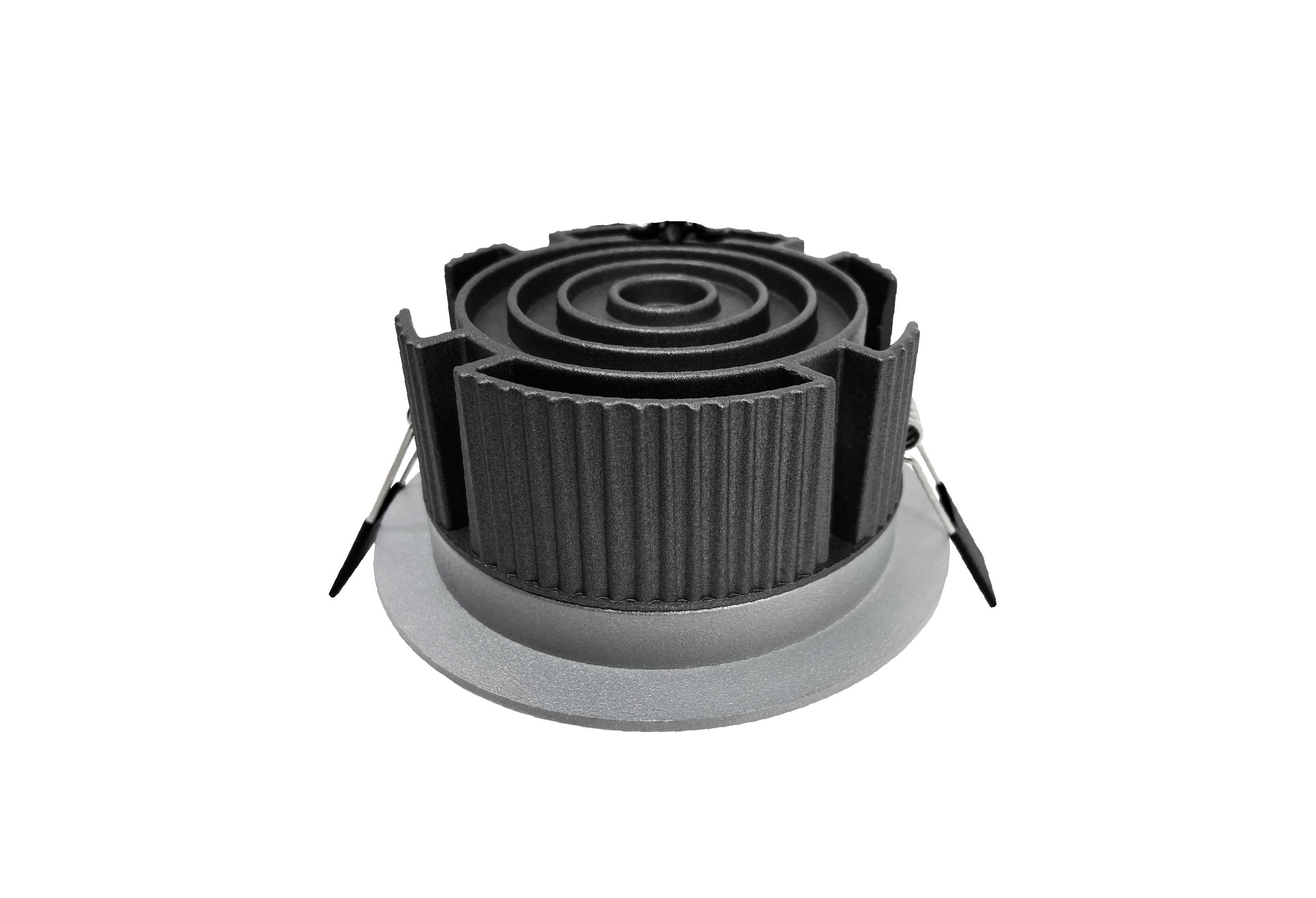

+    Specially designed heat sink - for class leading heat dissipation.
+    IC-4 rated
+    IP44 and suitable for wet areas.
+    High quality diffuser for increased lumen output
+    Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU)
+    DALI dimming available upon request

Please Note: When using C-Bus, use universal or trailing edge dimming modules

Watch the video here!

Product Codes:

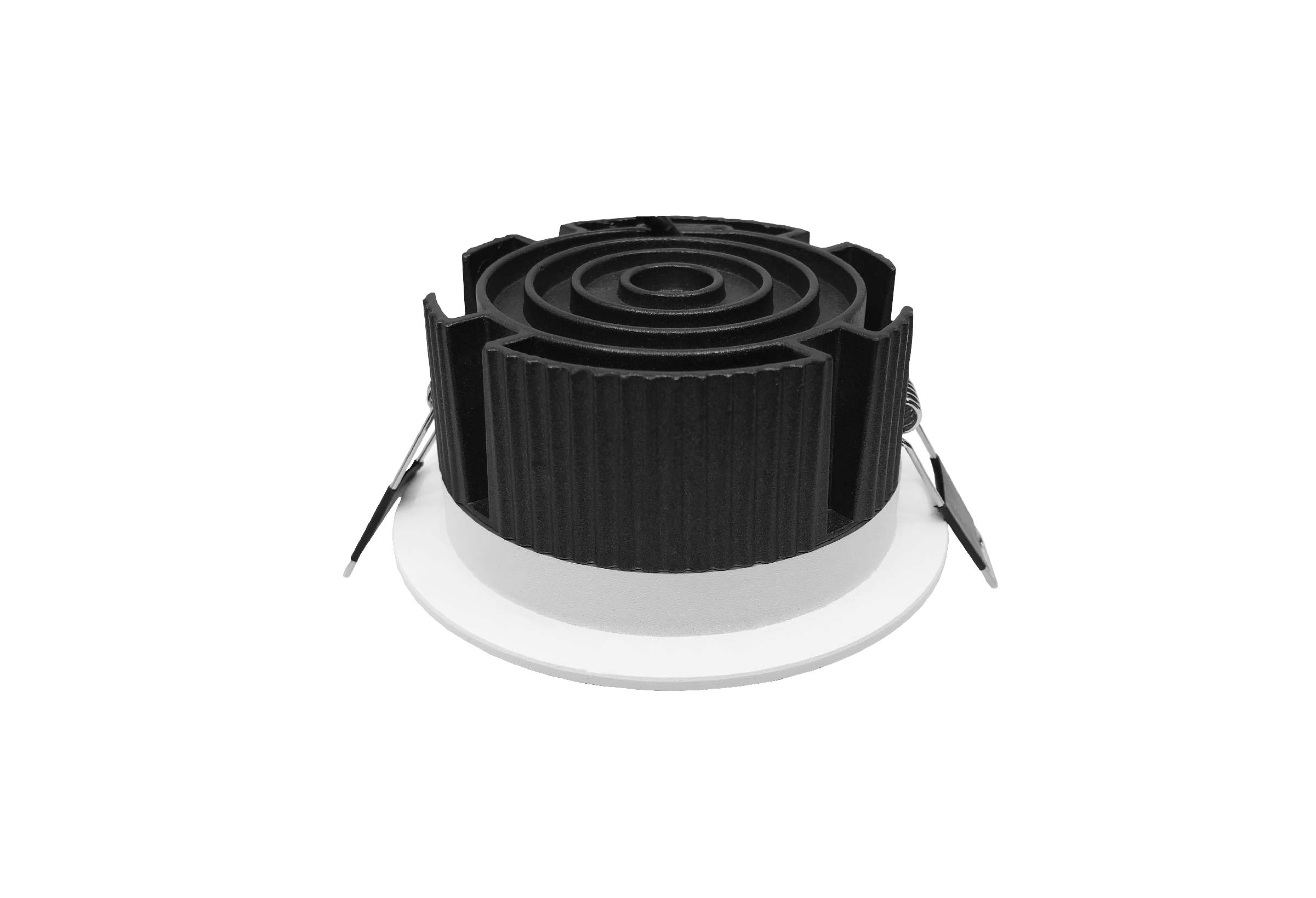

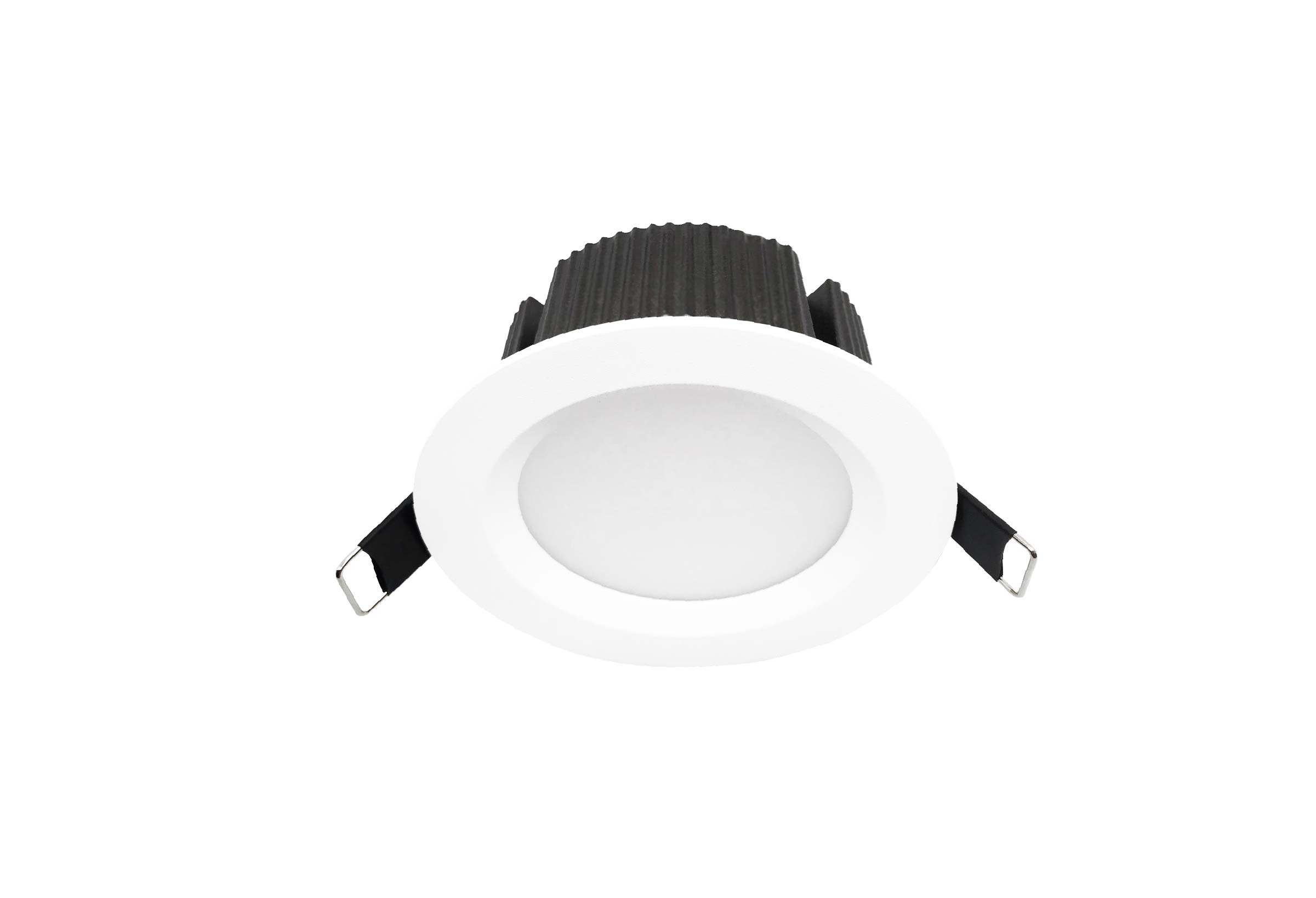

White, 3000K  118-DS5L12W903
White, 4000K  118-DS5L12W904

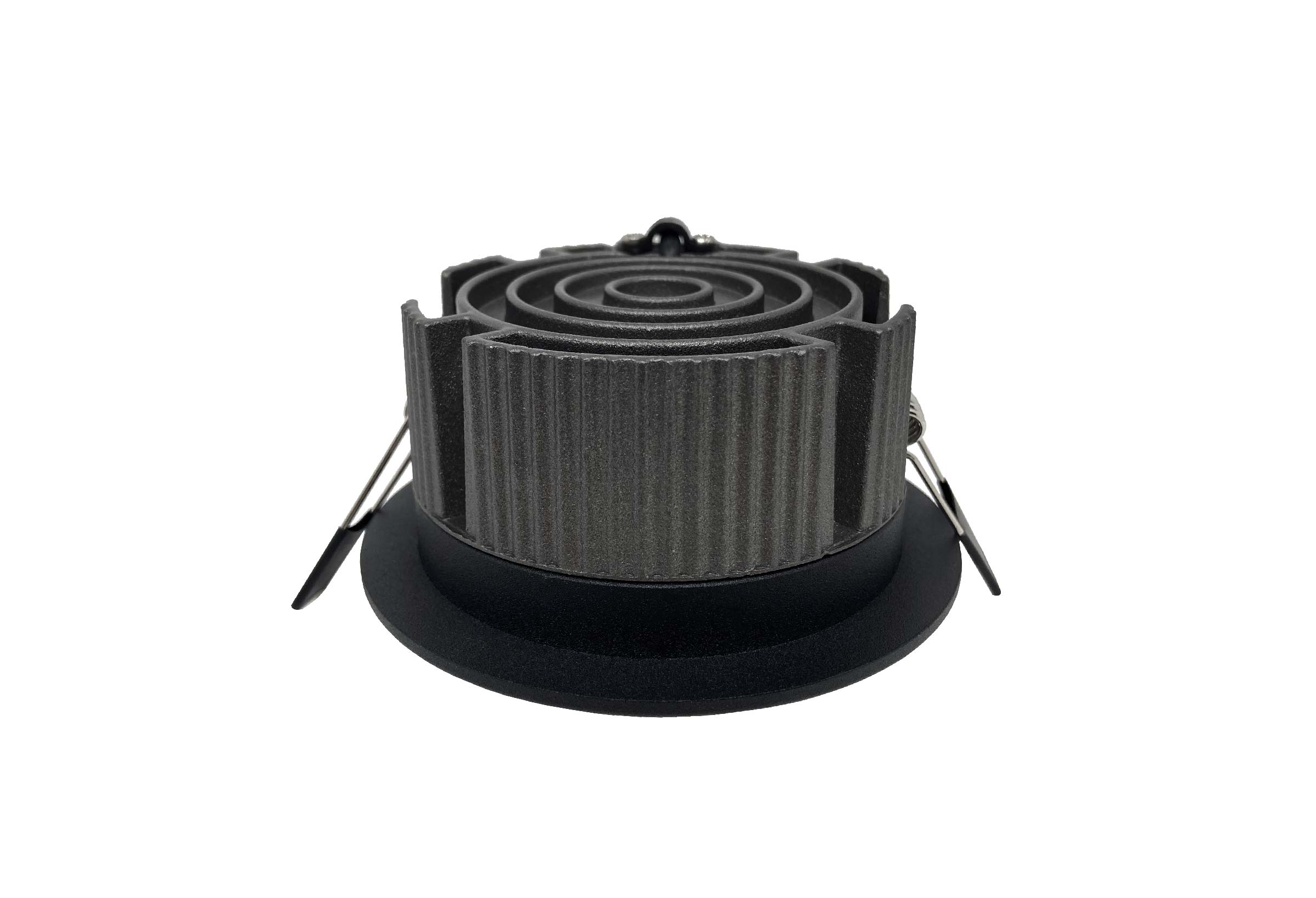

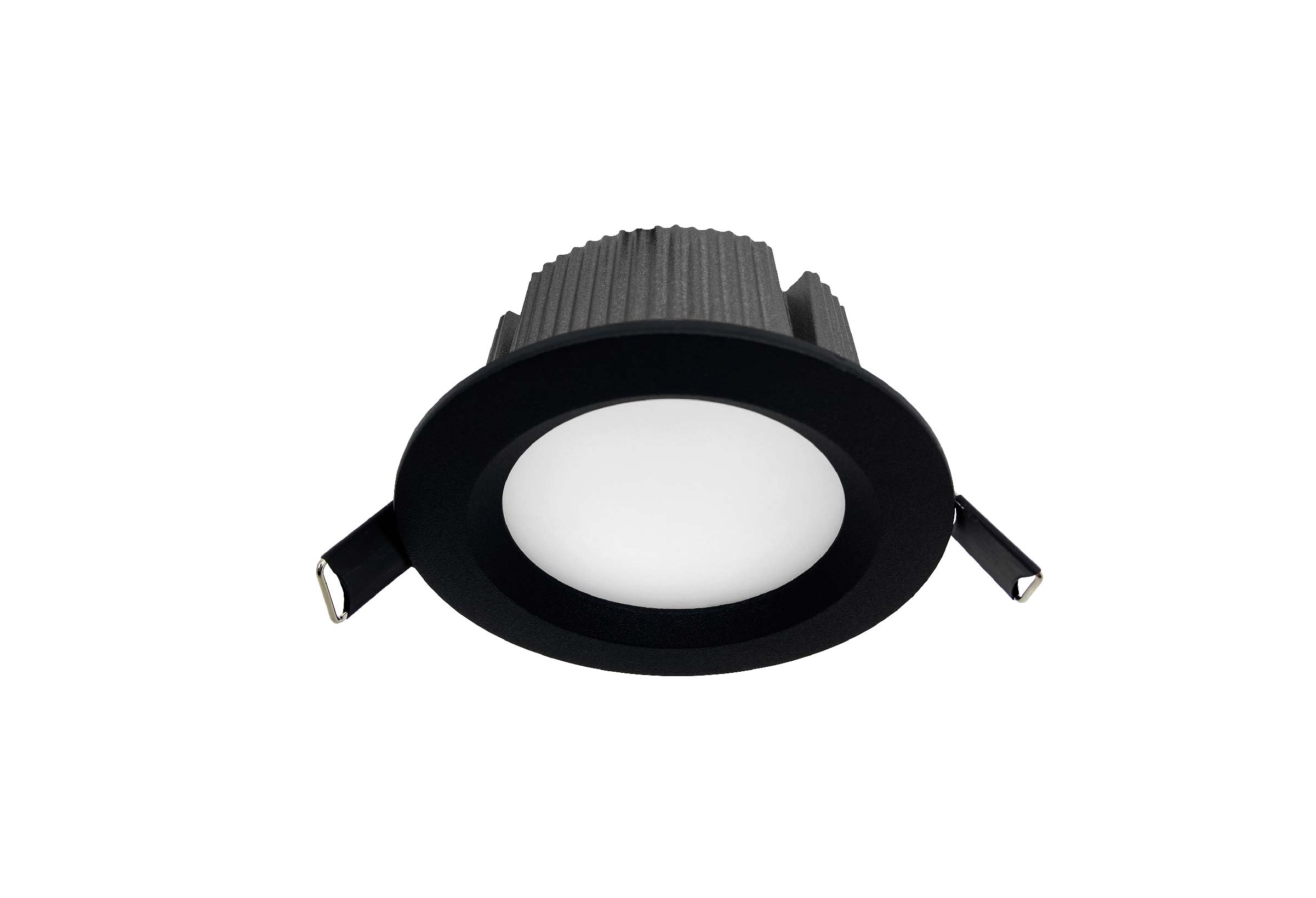

Black, 3000K  118-DS5L12B903
Black, 4000K  118-DS5L12B904

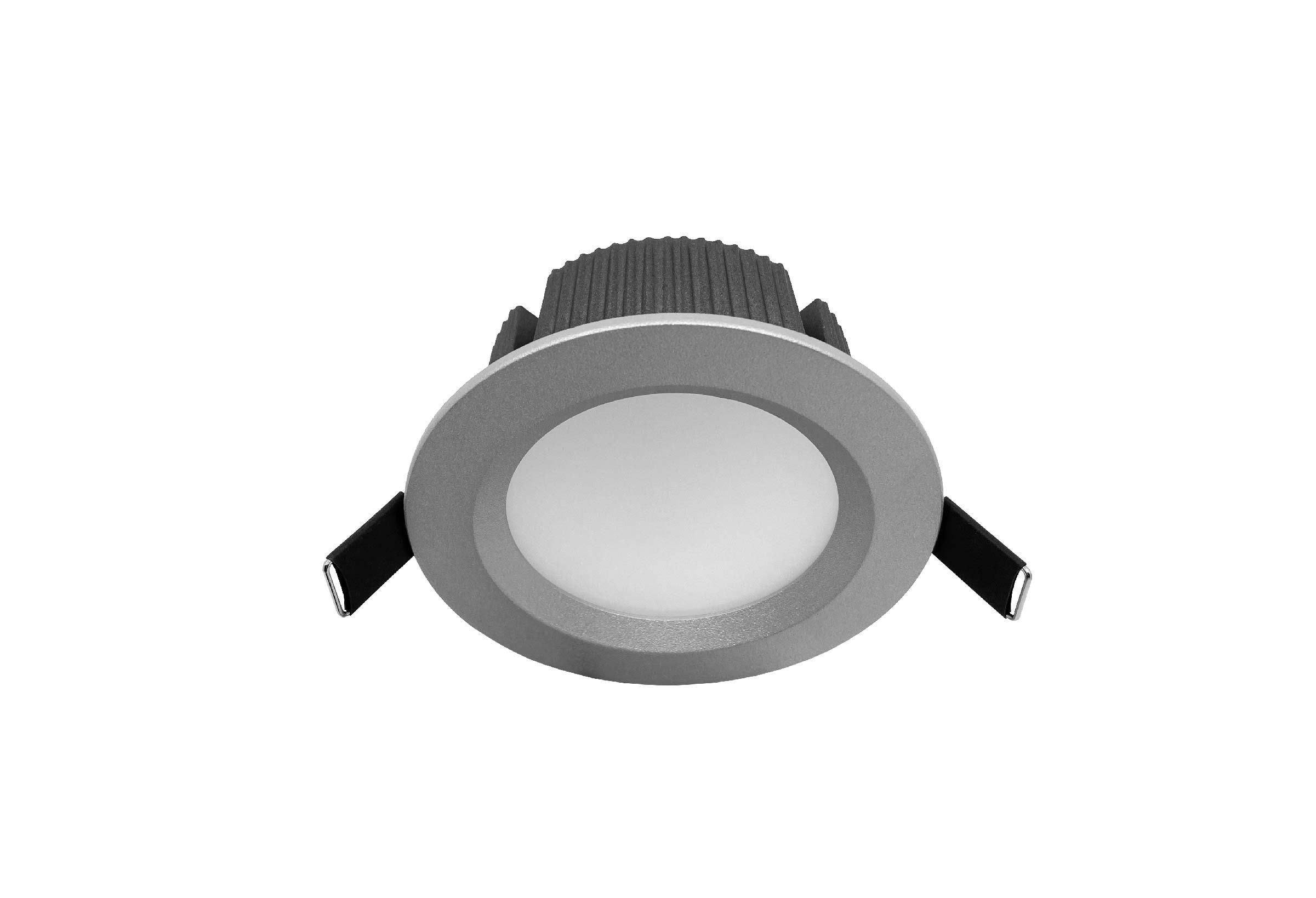

Silver, 3000K  118-DS5L12S903
Silver, 4000K  118-DS5L12S904

Specifications

Category: Downlights
Material: Powder Coat Aluminium
IP Rating: 44
Light Source: 12W LED
Lumen Output: 1040 lm (3000K) | 1070 lm (4000K)
Finishes: Black/White
Mounting Type: Recessed
Dimensions: Ø 107 x 47 (H) mm

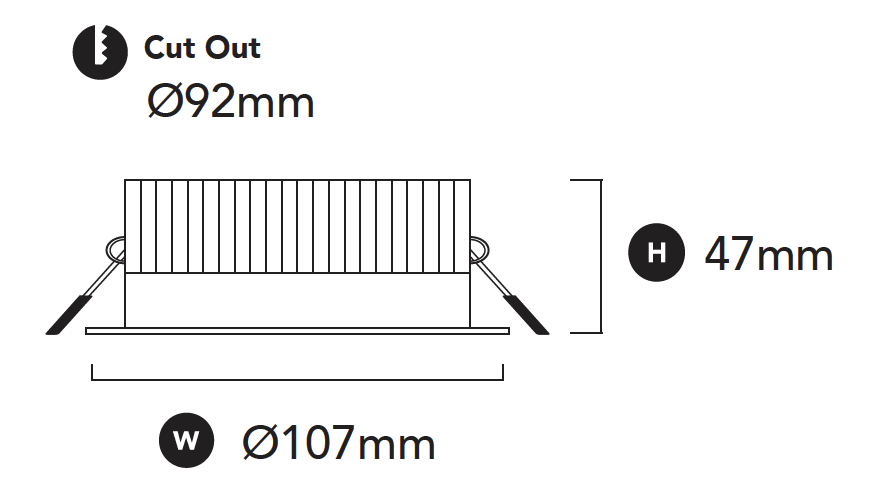

Line Drawing: View
