The Line Opal Recessed is a practical and stylish linear solution. Available in several lengths, with a variety of finishes and customisation options, it excels as a versatile linear solution.
• Recessed design providing simplicity and functionality.
• Quick and easy connection system – Keeping installation or renovation a breeze.
• Easy installation into ceiling with spring clips attached to fitting.
• Create a variety of shapes and layouts by connecting together a variety of different sizes.
• Compatible with remote Casambi CBU-TED Bluetooth Controllable Dimmer (71-CASCBU)
| PRODUCT CODES: | WATTAGE / LENGTH: | FINISH: | COLOUR TEMP: |
| 7-LR560615W903 | 15W / 613mm | White | 3000K |
| 7-LR560615W904 | 15W / 613mm | White | 4000K |
| 7-LR560615B903 | 15W / 613mm | Black | 3000K |
| 7-LR560615B904 | 15W / 613mm | Black | 4000K |
| 7-LR561230W903 | 30W / 1213mm | White | 3000K |
| 7-LR561230W904 | 30W / 1213mm | White | 4000K |
| 7-LR561230B903 | 30W / 1213mm | Black | 3000K |
| 7-LR561230B904 | 30W / 1213mm | Black | 4000K |
| 7-LR561845W903 | 45W / 1813mm | White | 3000K |
| 7-LR561845W904 | 45W / 1813mm | White | 4000K |
| 7-LR561845B903 | 45W / 1813mm | Black | 3000K |
| 7-LR561845B904 | 45W / 1813mm | Black | 4000K |
| 7-LR562460W903 | 60W / 2413mm | White | 3000K |
| 7-LR562460W904 | 60W / 2413mm | White | 4000K |
| 7-LR562460B903 | 60W / 2413mm | Black | 3000K |
| 7-LR562460B904 | 60W / 2413mm | Black | 4000K |
| ACCESSORY CODES: | ACCESSORY: |
| 7-LR56CONNECT | Recessed Connection Kit |
Category:
Material:
Powder Coated Aluminium
IP Rating:
40
Light Source:
15W | 30W | 45W | 60W
Lumen Output:
See Spec Sheet
Sizes:
Mounting Type:
Dimensions:
H 65mm x W 56mm
Lengths 0.613m | 1.213m | 1.813m | 2.413m

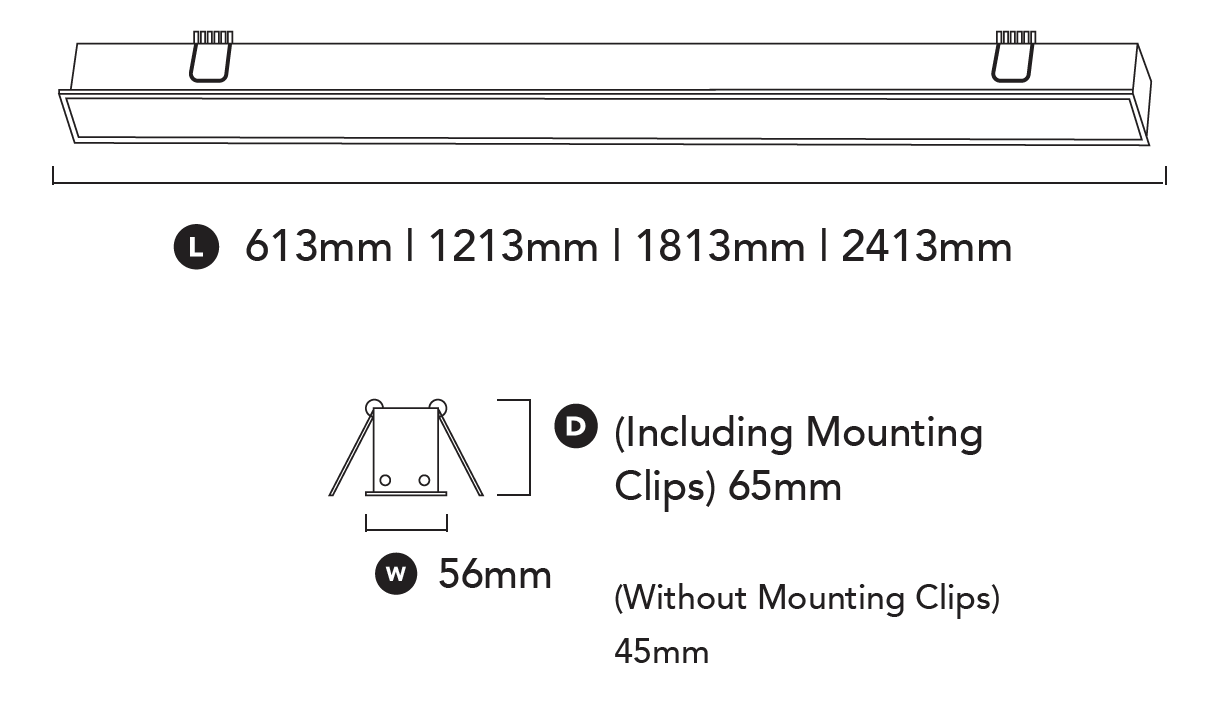

Line Drawing:
