Wall Mount Transformer


Wall Mount Transformer

Enquire Now

Share this product

Product Information

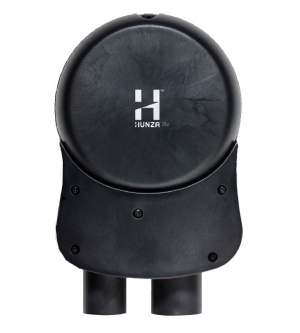

The Wall Mount Transformer is an above-ground, waterproof unit designed to provide 12 volt power for Hunza low voltage luminaries in landscape lighting installations. Wall Mount Series Transformers have a black, glass-reinforced, UV stable nylon case, which provides durability, UV resistance and a low surface temperature.

It is compact and unobtrusive in appearance, blending well into any outdoor setting. The electrical components are fully encapsulated in the casing for protection against weather and irrigation systems.

The Wall Mount Series is suitable for 120/240 volt 50/60 Hz operation and is available in 100 and 200 watt versions.

A key feature of this transformer is multi-tap output, providing the choice of either 12 or 13 volt secondary output. This allows much greater flexibility in compensating for voltage drop on long cable runs. For advice on wiring requirements please contact your local Hunza distributor for a free Hunza Volt Drop calculator.

The unit has thermal protection for the primary side of the transformer with fuse protection for the secondary. There are 25mm (1") and 32mm (1 1/4") conduit entries to allow for different cable requirements. Hunza Wall Mount series are “Double Insulated Safety Isolating” transformers.

Product Codes:

72-610 (100VA)
72-620 (200VA)
72-640 (300VA)


Category: Accessories
Material: Case: Glass filled UV stabilised Nylon 66 // Transformer: Encapsulated Toroidal
IP Rating: 66
Light Source: N/A
Finishes: Black
Mounting Type: Wall

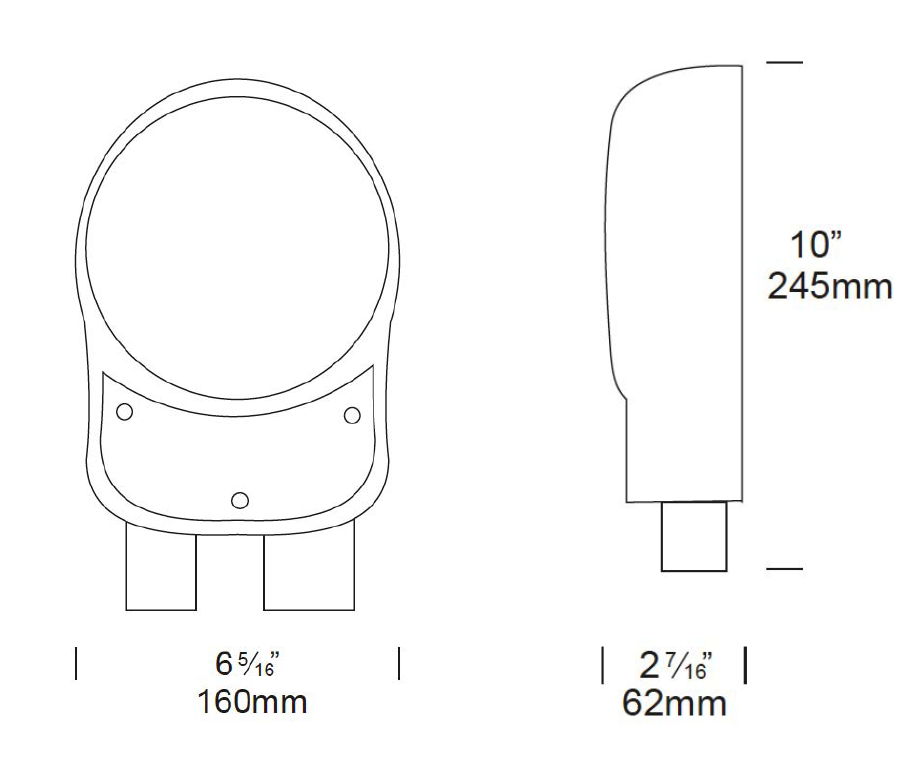

Line Drawing: View


line drawing
