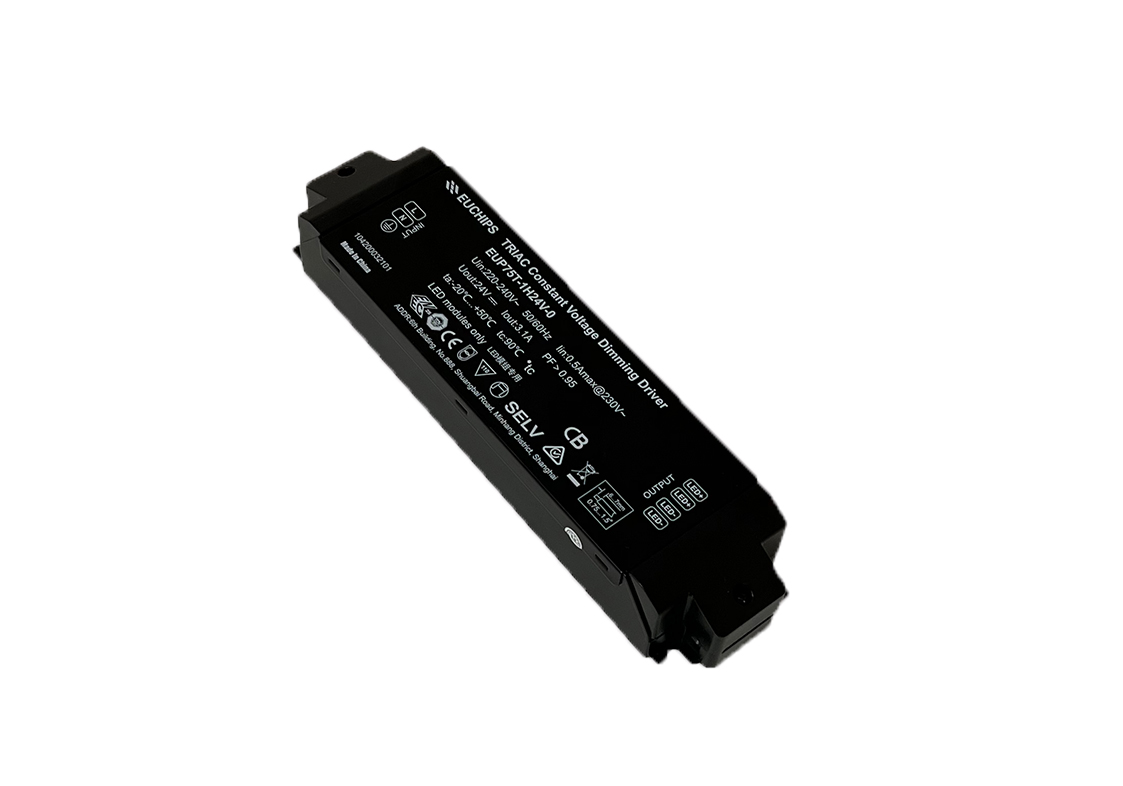

24V 75W Constant Voltage Dimmable Driver
• Single-channel constant voltage output, 3.1A max.
• Leading Edge (Triac) & Trailing Edge (ELV) Dimming.
• Dimming range from 40VAC to 240VAC.
• Flicker Free.
• Over current protection; short circuit protection; over voltage protection.
• Suitable for indoor LED lighting application.
| PRODUCT CODE: |
| 129-EUP75T-1H24V-0 |
Category:
Material:
PC
IP Rating:
20
Light Source:
N/A
Finishes:
Sizes:
Mounting Type:
Dimensions:
L 213mm x H 54mm x W 33mm

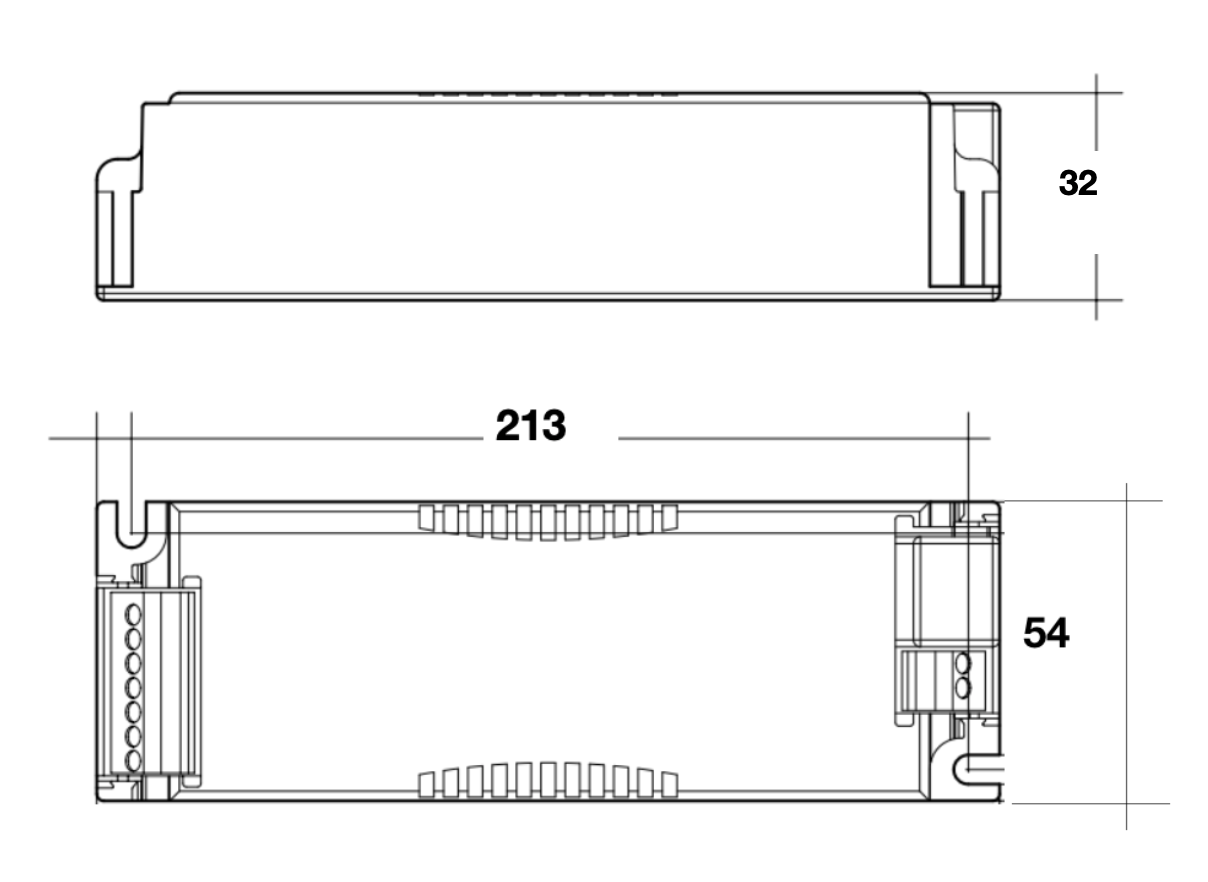

Line Drawing:
