Step Lite

Hunza

Step Lite

Product Enquiry

Share this product

Product Information

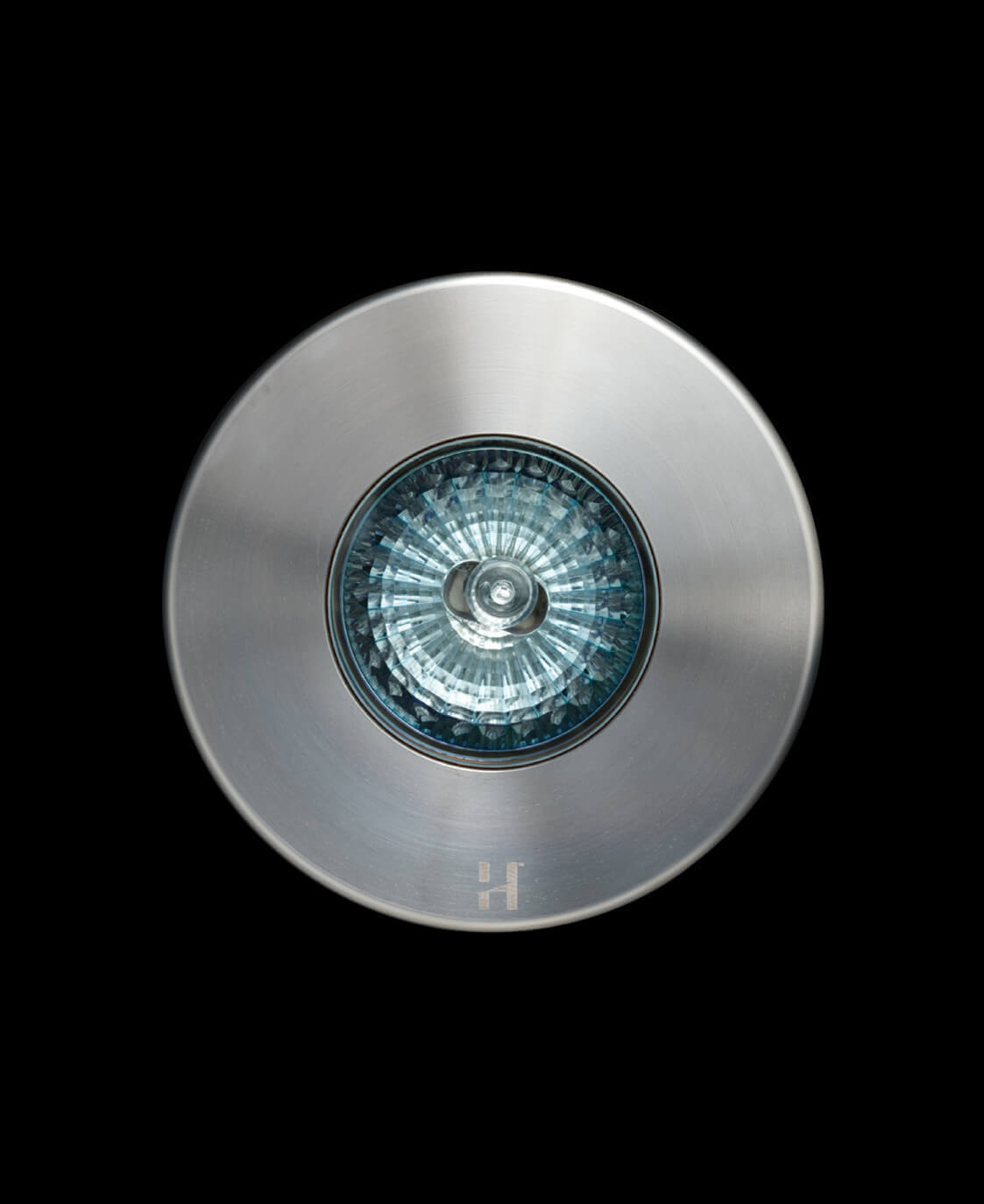

The Step Lite is designed with a 88mm (2 1/2”) flange and recessed body for flush mounting into concrete masonry, stone or wood, providing illumination of steps and low level features, for example, across driveways or exterior paved areas.

When a HUNZA mounting canister is used there are no mounting holes in the flange (this option must be specified when ordering).

The luminaire is machined from a choice of 10mm (3/8”) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steelwith a clear, tempered, stepped glass lens and high temperature silicon gaskets.



Specifications

Designer: Hunza
Category: Outdoor Lighting
Material: Aluminium, Copper and Stainless Steel
IP Rating: 66
Light Source: Halogen 1 x 35W or LED 1 x 6W
Finishes: Black/Bronze/Copper/Grey/Silver/Stainless Steel/White
Dimensions: Ø 88 x 68.5 (H) mm

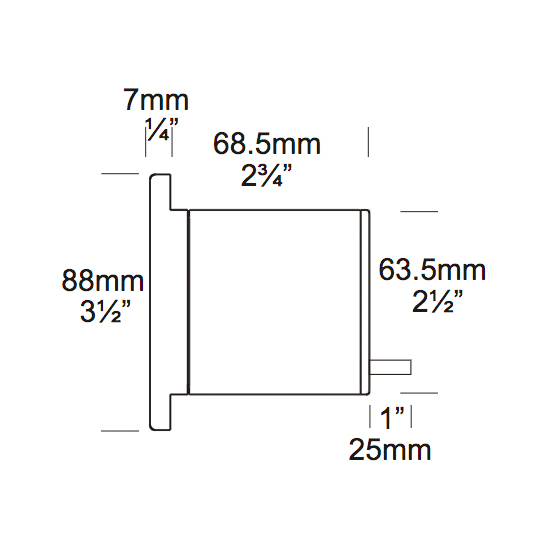

Line Drawing: View

Downloads

line drawing
