Modux 2 & 4 Path

LuxR

Modux 2 & 4 Path

Enquire Now

Share this product

Product Information

The Modux Two & Four Recessed Path lights are a low-voltage dimmable outdoor path light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above. Can be used to illuminate a wall surface, or as a path light wayfinder among other applications. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves  IP68 water ingress rating for piece of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is glass.

Path Beam: -5°, +10°

Product Codes:

Modux 2 Copper: Modux 2 Stainless Steel:
128-M2PL1RC30 (90°) 128-M2PL1RS30 (90°)
128-M2PL180RC30 (180°) 128-M2PL180RS30 (180°)
128-M2PLOPRC30 (Opposite facets) 128-M2PLOPRS30 (Opposite facets)
128-M2PL3RC30 (270°) 128-M2PL3RS30 (270°)
128-M2PL4RC30 (360°) 128-M2PL4RS30 (360°)

Modux 4 Copper: Modux 4 Stainless Steel:
128-M4PL1RC30 (90°) 128-M4PL1RS30 (90°)
128-M4PL180RC30 (180°) 128-M4PL180RS30 (180°)
128-M4PLOPRC30 (Opposite facets) 128-M4PLOPRS30 (Opposite facets)
128-M4PL3RC30 (270°) 128-M4PL3RS30 (270°)
128-M4PL4RC30 (360°) 128-M4PL4RS30 (360°)

Specifications

Designer: LuxR
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 68
Light Source: M2: 2W // M4: 4W
Finishes: Copper/Stainless Steel
Mounting Type: Recessed/Wall
Dimensions: Ø 58 x 62 (H) mm

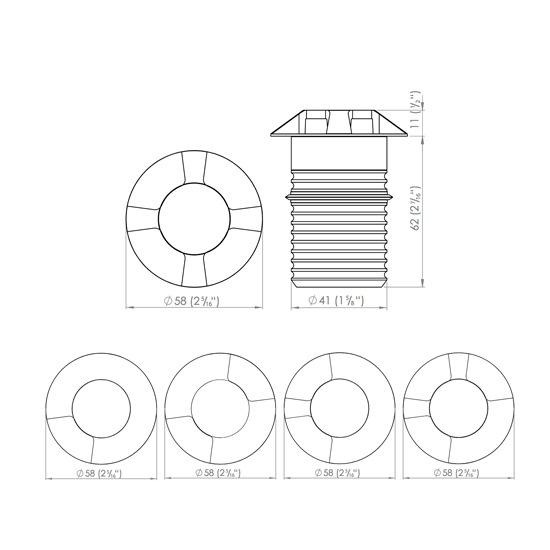

Line Drawing: View

Downloads

line drawing
