Modux 2 & 4 Step with Slot

LuxR

Modux 2 & 4 Step with Slot

Enquire Now

Share this product

Product Information

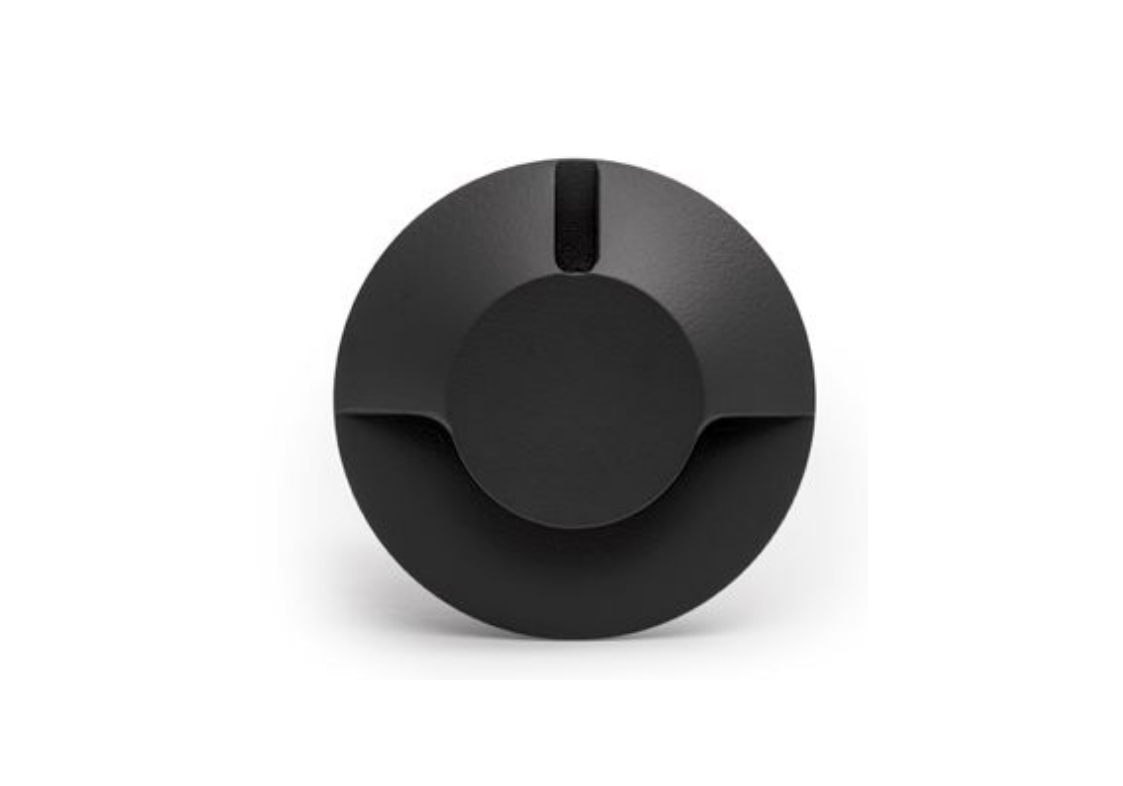

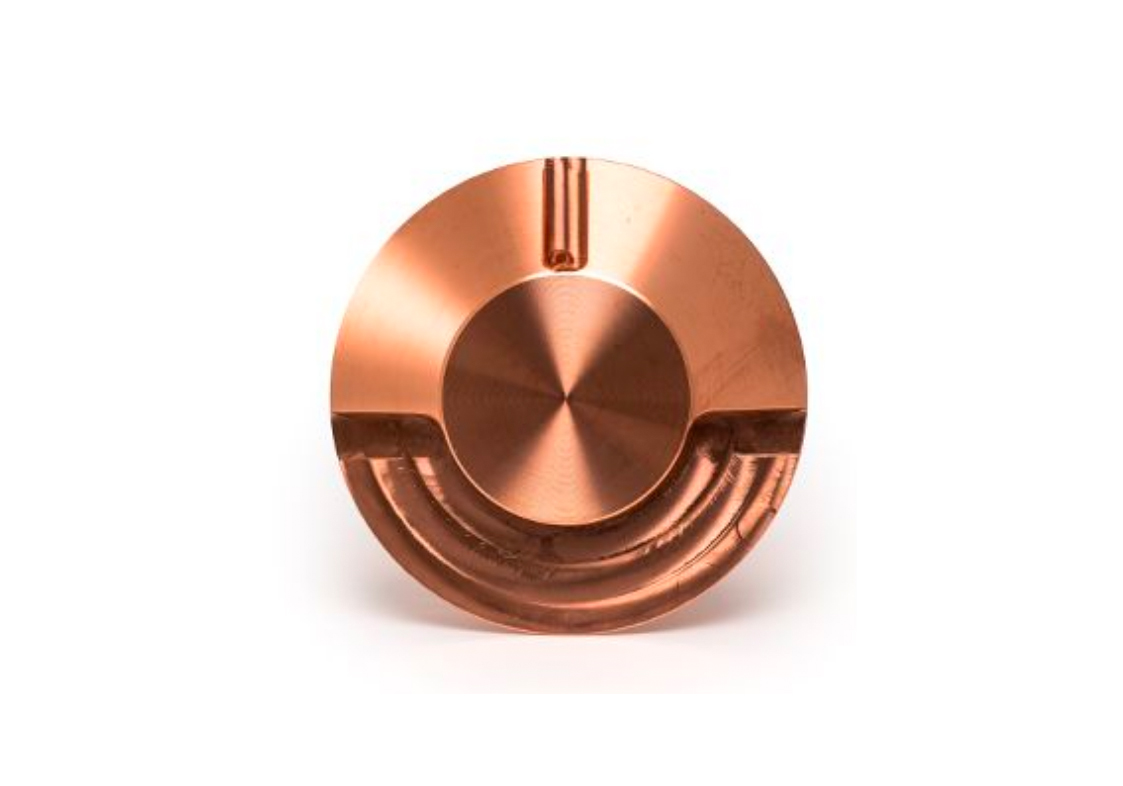

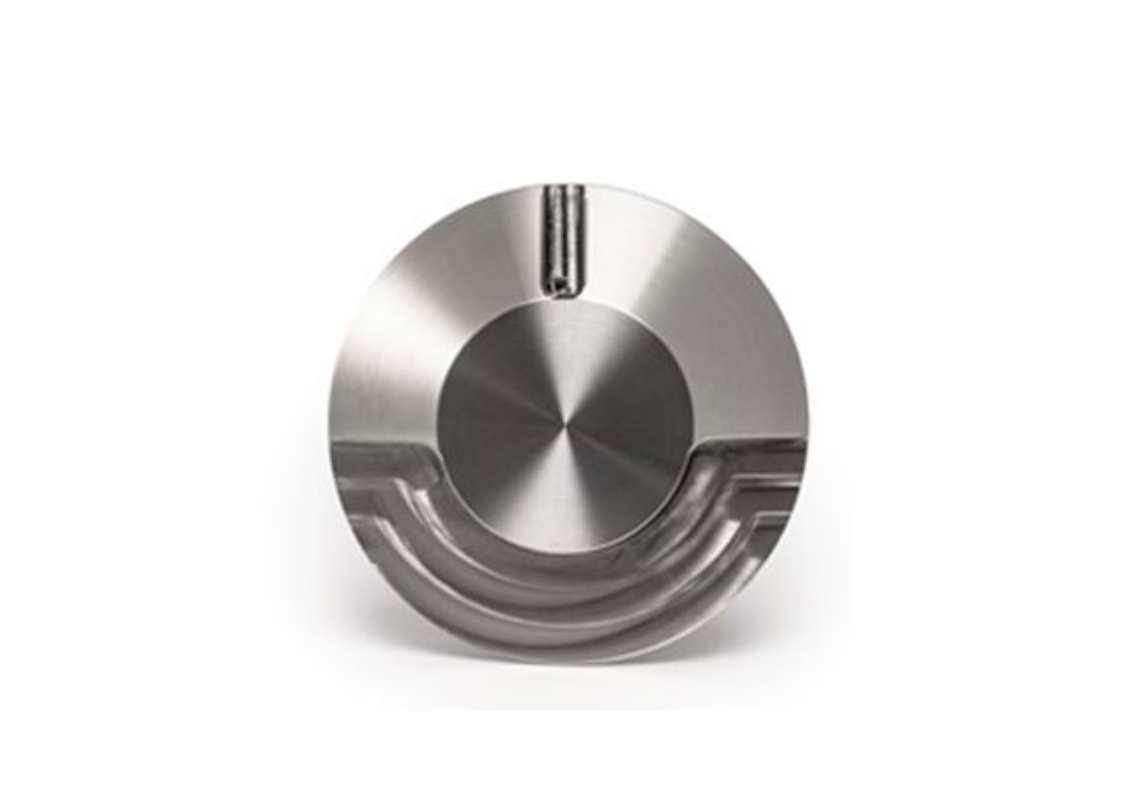

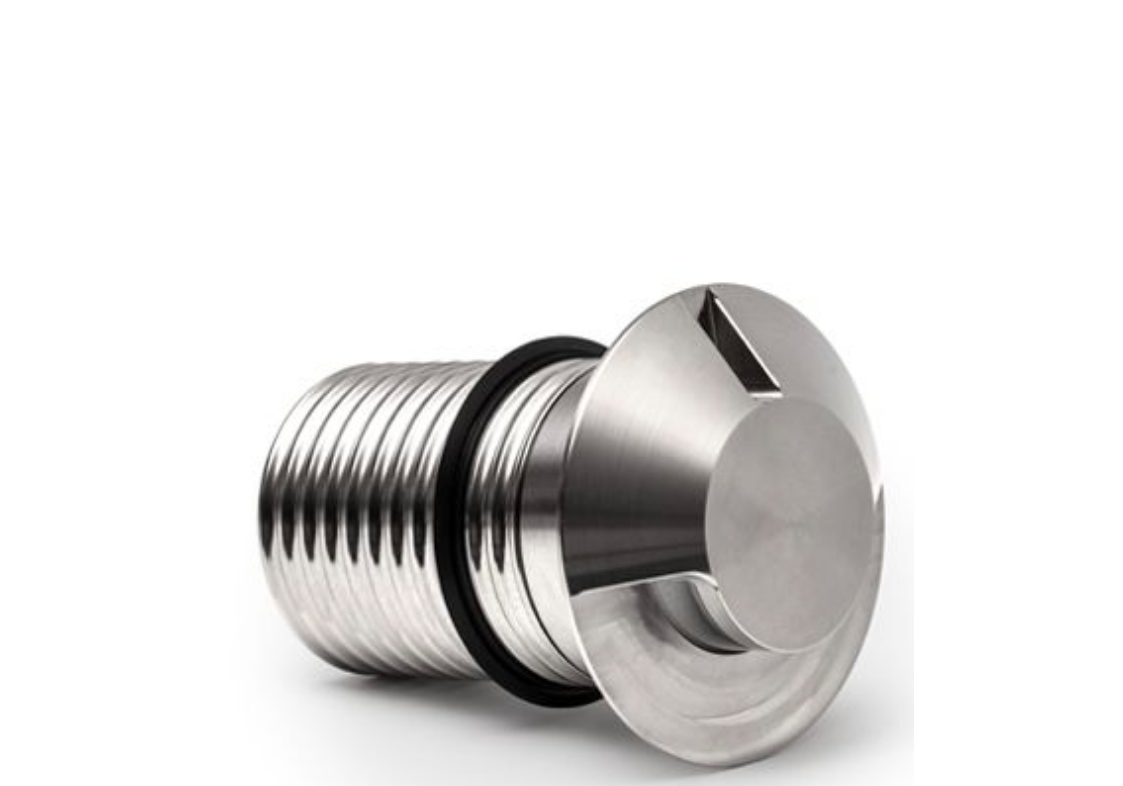

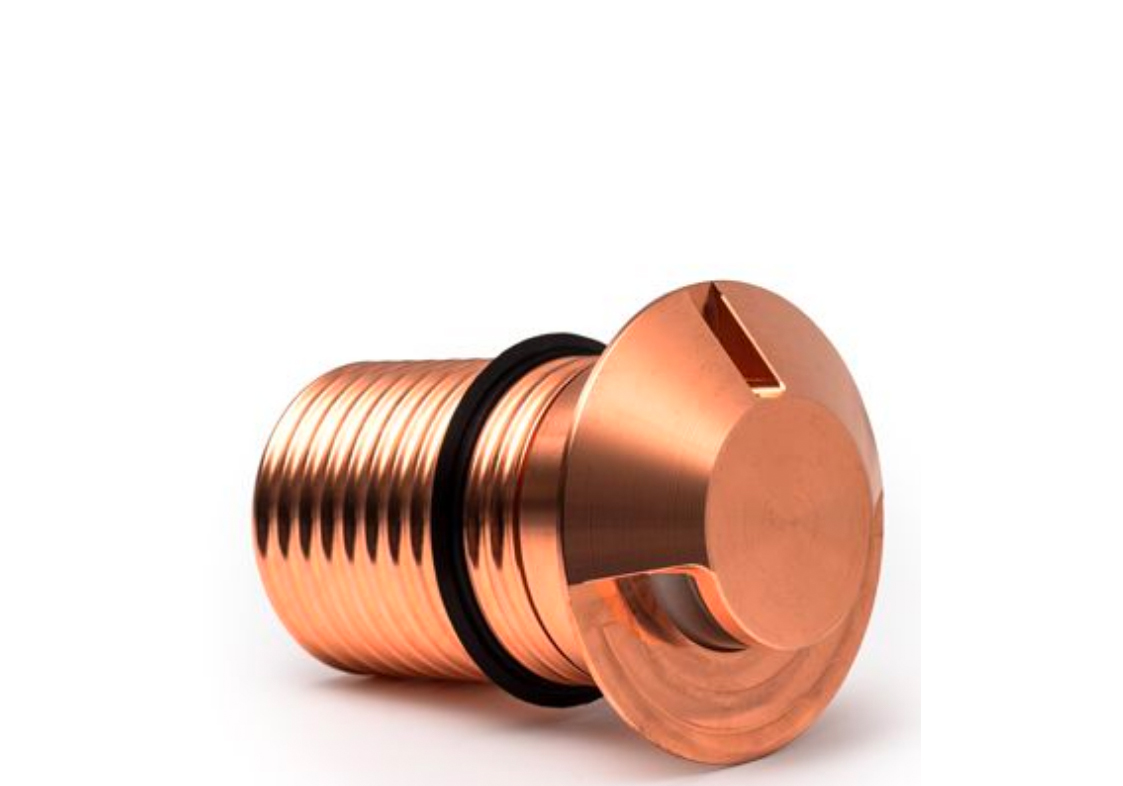

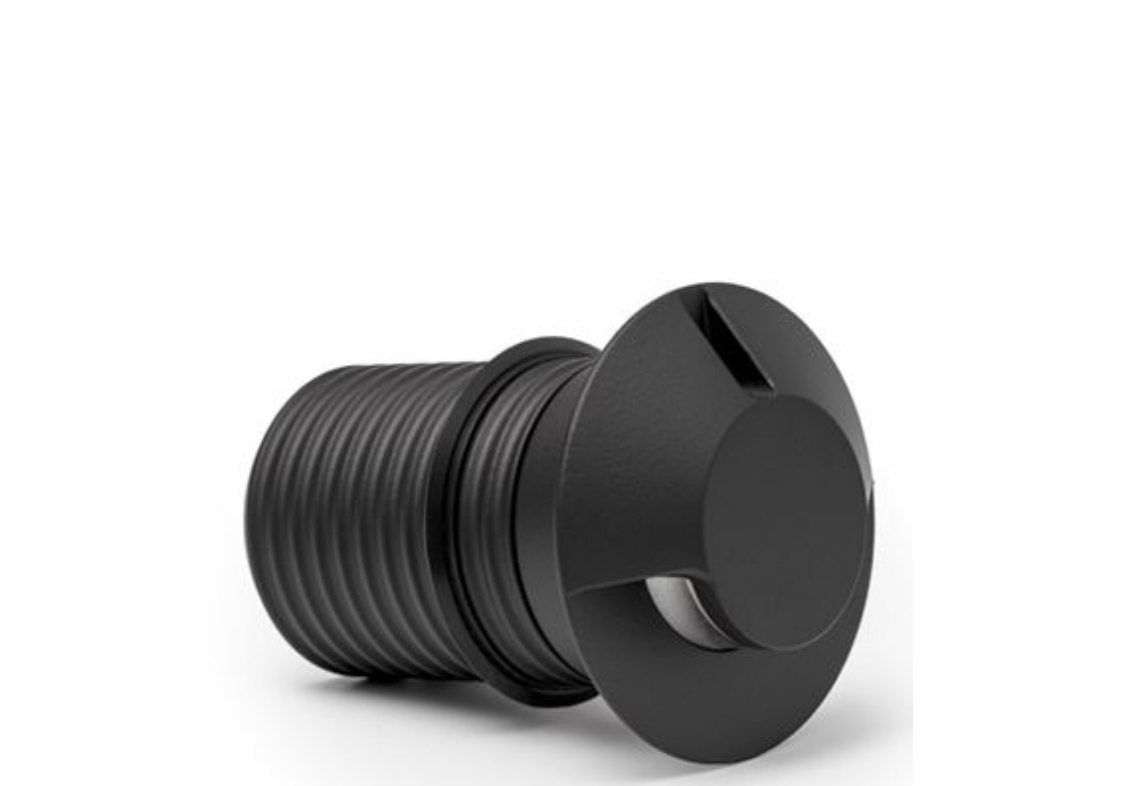

The Modux Step Light with Slot is a low-voltage dimmable outdoor step light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above. In addition the narrow slot opposite the main beam produces a fine decorative accent. Can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium.

Beam Angles: -5°, +10°

Product Codes:


Modux 2: Modux 4:
128-M2SLSRABK30 (Black) 128-M4SLSRABK30 (Black)
128-M2SLSRC30 (Copper) 128-M4SLSRC30 (Copper)
128-M2SLSRS30 (Stainless Steel) 128-M4SLSRS30 (Stainless Steel)

Specifications

Designer: LuxR
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 68
Light Source: M2: 2W // M4: 4W
Lumen Output: M2: 170 // M4: 360
Finishes: Copper/Stainless Steel
Mounting Type: Recessed/Wall
Dimensions: Ø 58 x 62 (H) mm

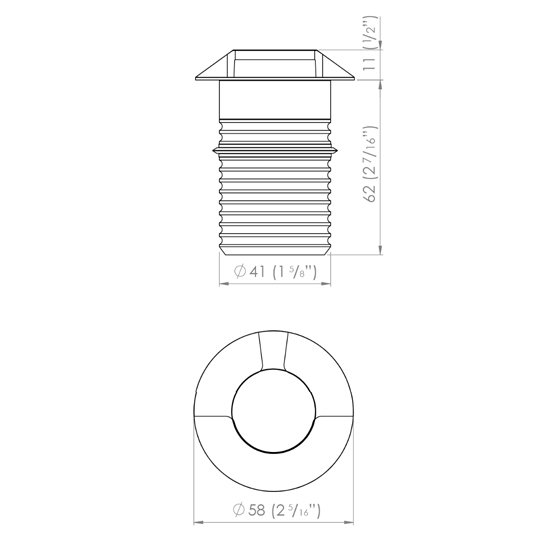

Line Drawing: View

Downloads

line drawing
