Modux 2 & 4 Large Recessed Round
LuxR
Modux 2 & 4 Large Recessed Round
Enquire Now
Share this product
Product Information
A larger version of the M2 / M4 Recessed Round.
The Modux 2 & 4 Large recessed luminaires are designed to be mounted either in the ground or floor as low profile uplighters, or in walls or steps to illuminate paths and stairways. They can be installed either outdoors or indoors and offer the option of either a round or square flange.
Beam Angles:
Modux 2: |
8°, 26°, 36°, 74°, 15°+40° Oval |
Modux 4: |
12°, 26°, 36°, 74°, 15°+40° Oval |
Product Codes:
Modux 2: |
Modux 4: |
128-M2LRRABK7430 (Black) |
128-M4LRRABK7430 (Black) |
128-M2LRRC7430 (Copper) |
128-M4LRRC7430 (Copper) |
128-M2LRRS7430 (Stainless Steel) |
128-M4LRRS7430 (Stainless Steel) |
Specifications
Designer: |
LuxR |
Category: |
Outdoor Lighting |
Material: |
Copper & Stainless Steel |
IP Rating: |
68 |
Light Source: |
M2 - LED 2W / M4 - LED 4W |
Lumen Output: |
Modux 2 - 160 lm / Modux 4 - 360 lm |
Finishes: |
Black/Copper/Stainless Steel |
Mounting Type: |
Recessed |
Dimensions: |
Ø 75 x 62 (H) mm |

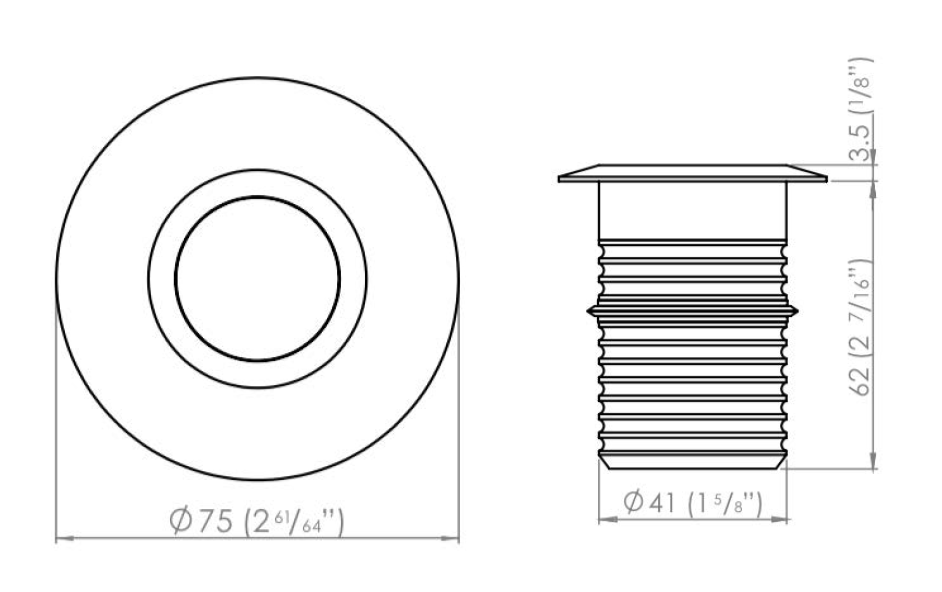

Line Drawing: |
View |
